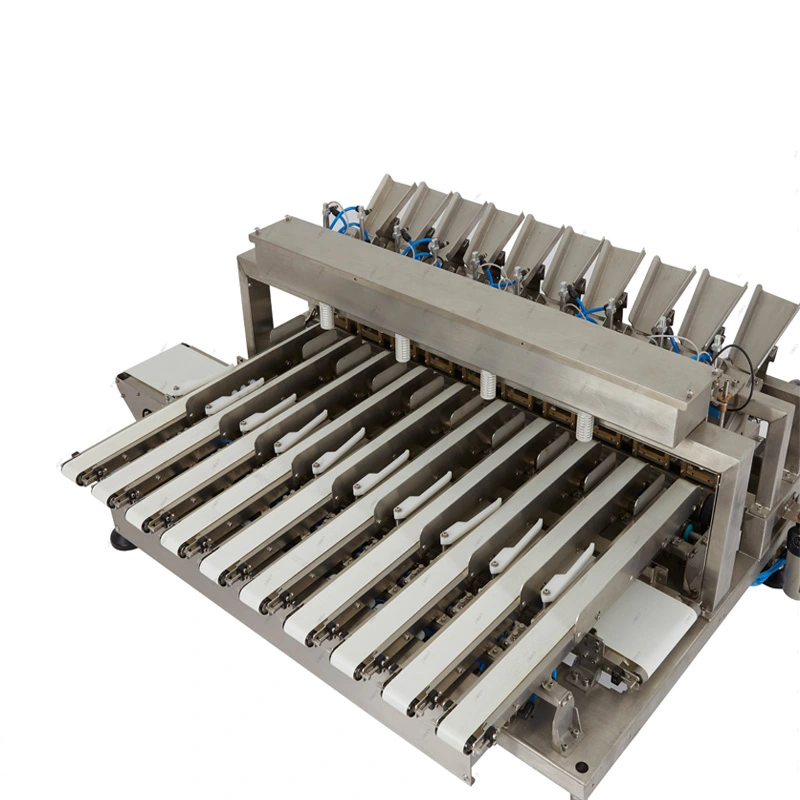

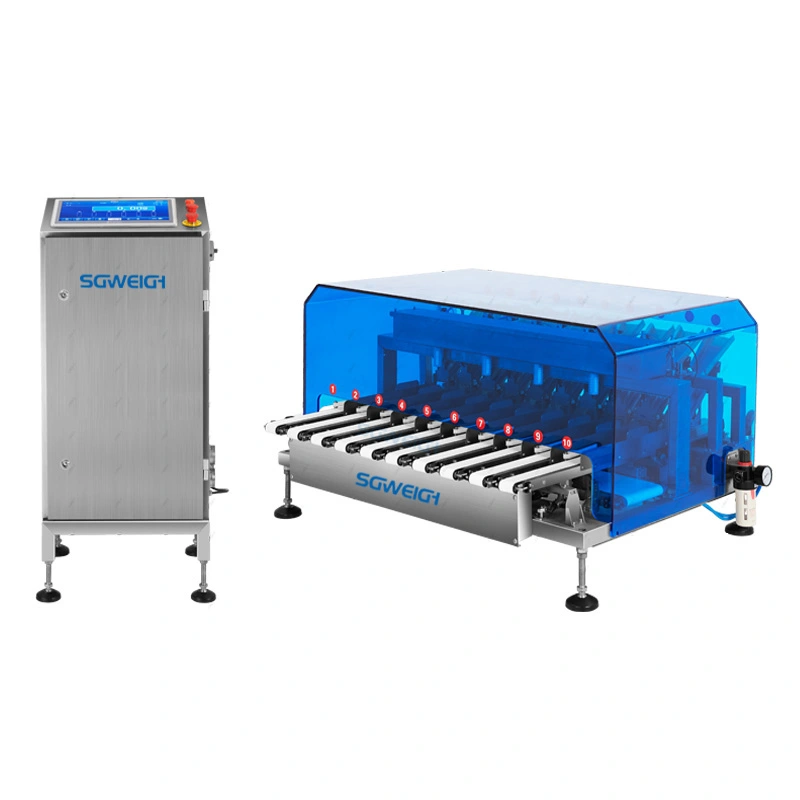

The 10-Lane Checlweigher organically combines multiple conventional precision checkweighers into a checkweigher with multiple checkweighing channels.High-Speed Multi-Column Checkweigher overcomes the mechanical interference between multi-column weighing platforms and the data processing and communication conflicts of multi-column weighing channels, and has the characteristics of high precision and high efficiency.Welcome to consult for quotation information!
Weighing Range 3-500g
Limited of product L: 200 W:150 H: 3-200mm
Accuracy ±0.1g Depends on product
Division Scale 0.1g
Belt Speed 0- 65 m/min
Max Speed 150 pcs/min
Belt Width 150mm
Machine Weight 60kg
Power Supply AC 110/220V ±10% 50HZ
Power 100W
Main Material SU304 stainless steel
For reference only, please consult for details!
Contact us to recommend a product that is suitable for you!
1. Easy to integrate: adjustable height, modular design
2. Sturdy and durable structure: stainless steel 304
3. Ease of use: touch screen operating system is easy to use, with user password protection
4. Easy to clean: The detachable strap is easy to remove for cleaning and setting.
5. Variable speed: the speed can be configured according to the application
6. High speed and accuracy: Equipped with advanced sensors and load cells, equipped with ultra-fast processor, it has excellent accuracy and speed
7. Zero Tracking: Manual and automatic calibration for improved accuracy
8. Report and data export: built-in - real-time report, can be exported as Excel file, can store 1 year's production data in U disk
1.Replacement within seven days, warranty within one year, and lifetime maintenance. Before the products are sold, we will go through strict inspection, and the products you sign for have no quality problems.
2.The products provided to customers are all produced by the original factory, and have factory data accessories.
3.During the warranty period, our company will repair the damaged parts due to quality reasons, and the damage of the parts outside the warranty period. The provided accessories only charge the cost. If the equipment is damaged due to human factors, the parts repaired or provided by our company are calculated at the cost.
