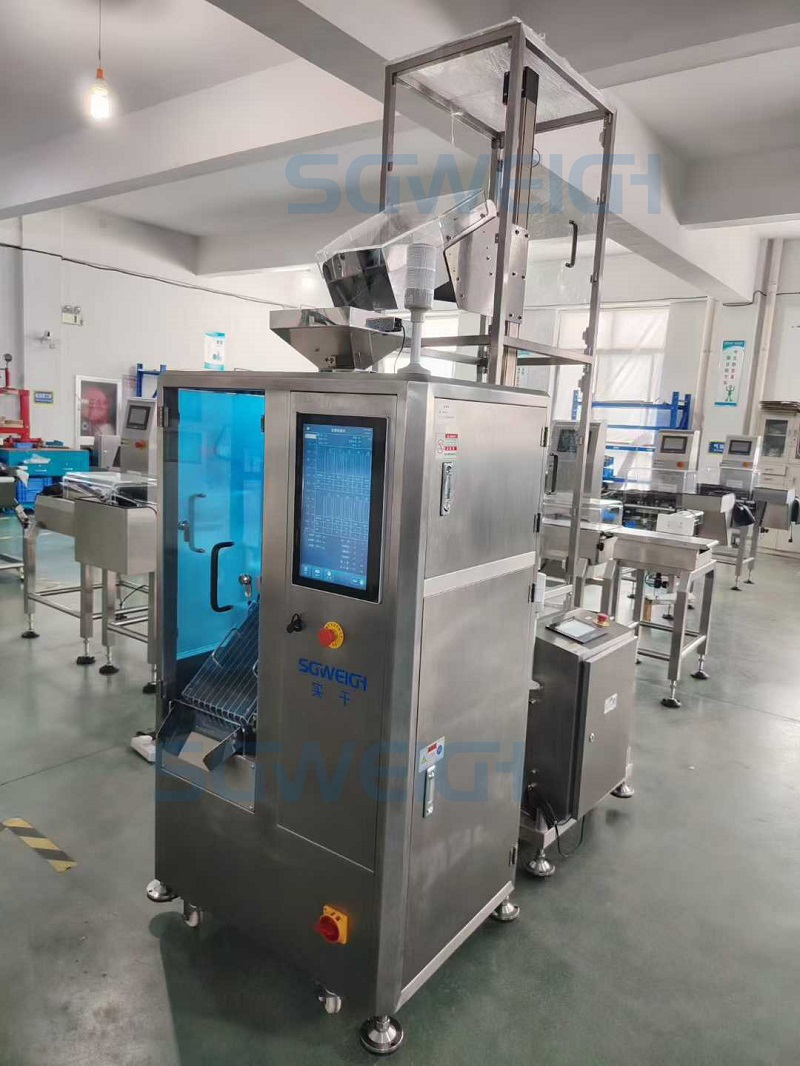

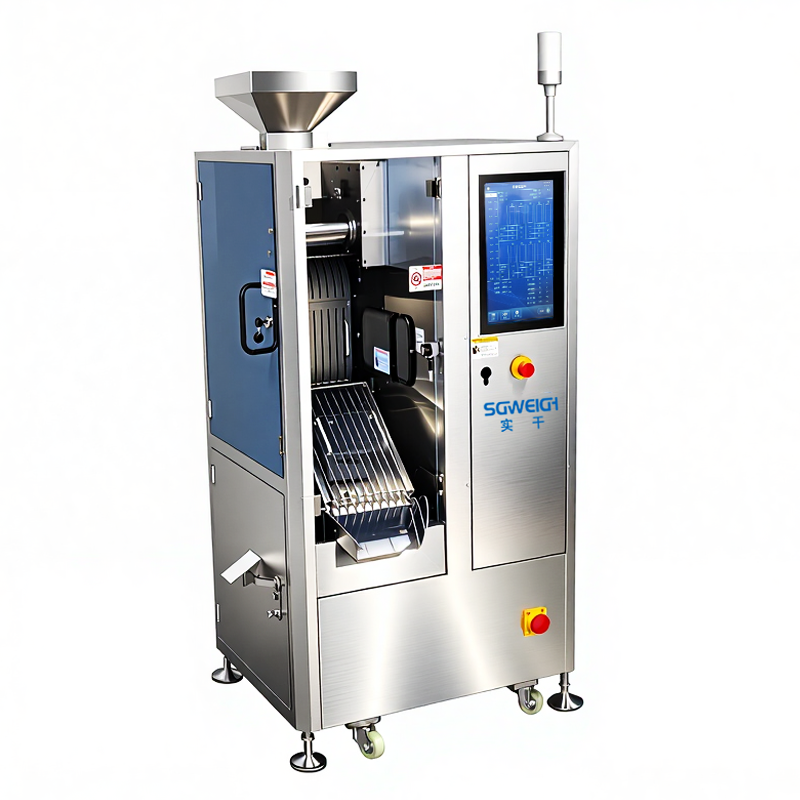

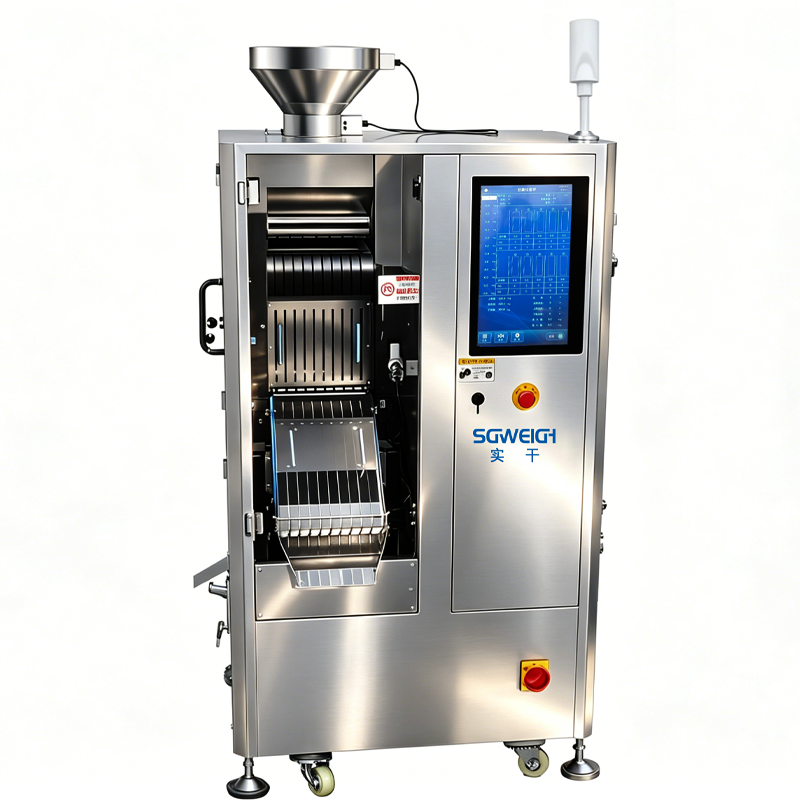

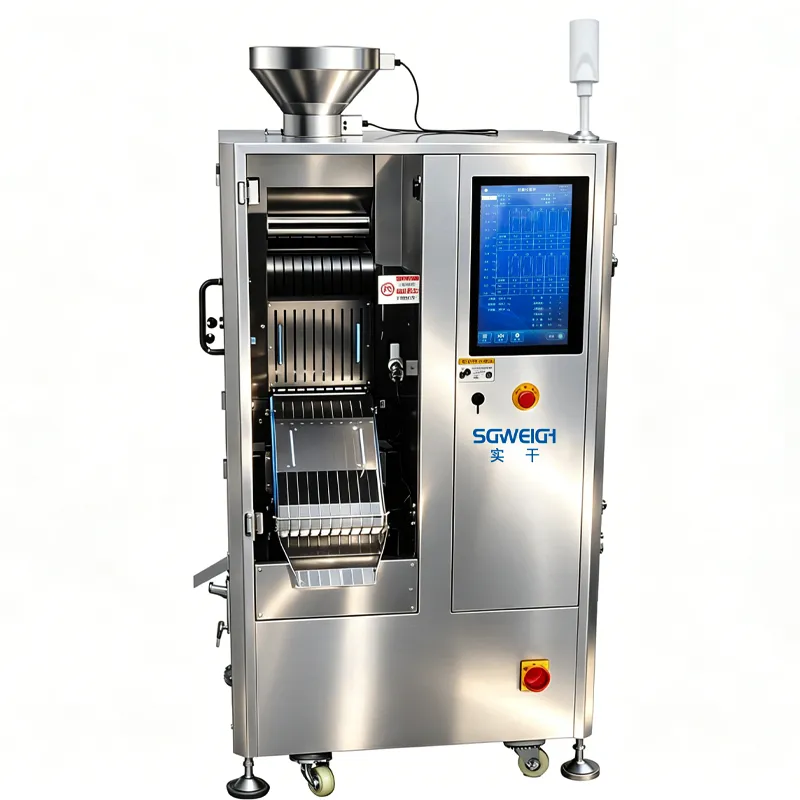

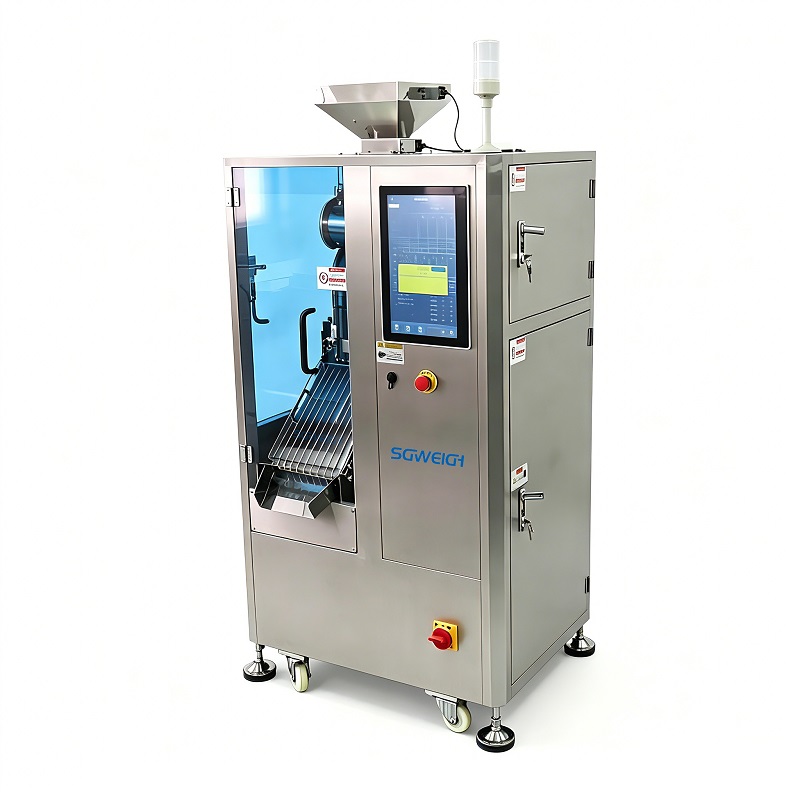

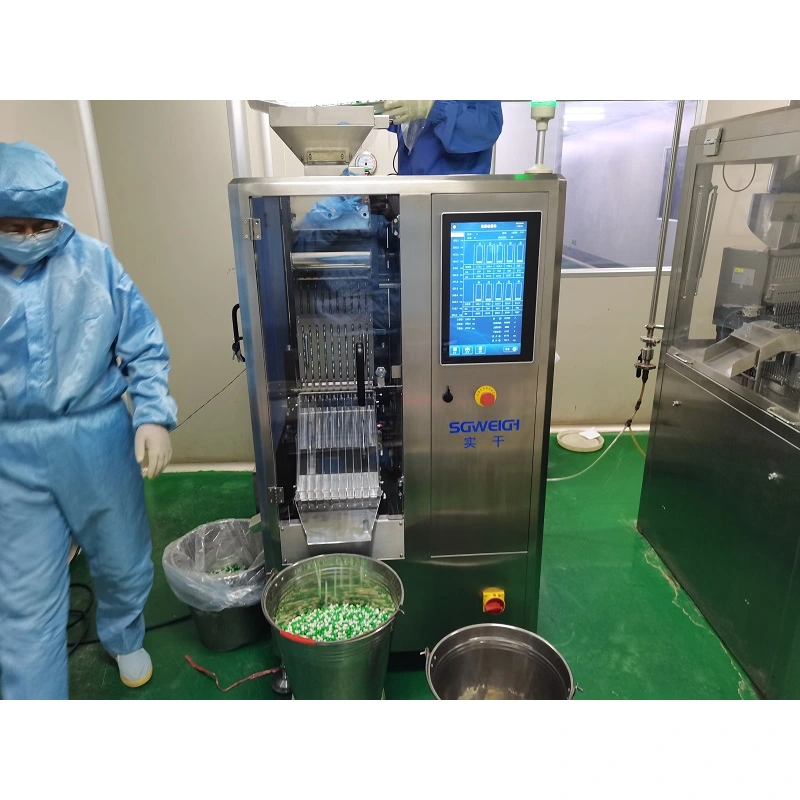

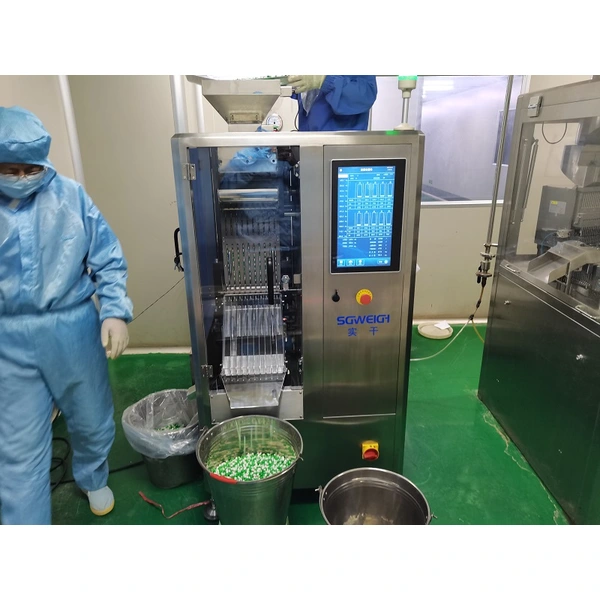

The 100% Capsule Weighing Checkweigher is a high-precision automatic inspection system designed to weigh every individual capsule during pharmaceutical production. Unlike sampling inspection, this system performs 100% in-line capsule weight inspection, ensuring each capsule meets the required weight specifications before packaging.
| Type | SG-CT10 |
Weighing scope | 5-2000mg |
Display scale | 0.1mg |
Highest sorting accuracy | ±0.5mg |
Product specification | Capsule-00#-5#/Wafer-Φ5.5-Φ18mm/Thickness-3-12mm/Pill-Φ5.5-Φ12mm(Other sizes or shapes subject to testing) |
Highest sorting ability | 75,000 PCS/HR |
Power supply | AC-220V±10%, 50HZ |
Compressed air | 0.3-0.9Mpa |
Weight of Machine | 350kg |
| Shell material | SUS304/316 |
1.100% automatic weighing of every capsule.
2.High-precision load cell for accurate capsule weight measurement.
3.Detects underweight, overweight, empty, and partially filled capsules.
4.Automatic rejection of non-conforming capsules.
5.Suitable for hard gelatin and HPMC capsules.
6.High-speed inspection without reducing production efficiency.
7.User-friendly PLC and touchscreen interface.
8.Recipe storage for different capsule sizes and products.
9.Real-time production monitoring and statistical analysis.
10.Data logging and traceability for GMP compliance.
11.Stainless steel construction for hygienic pharmaceutical environments.

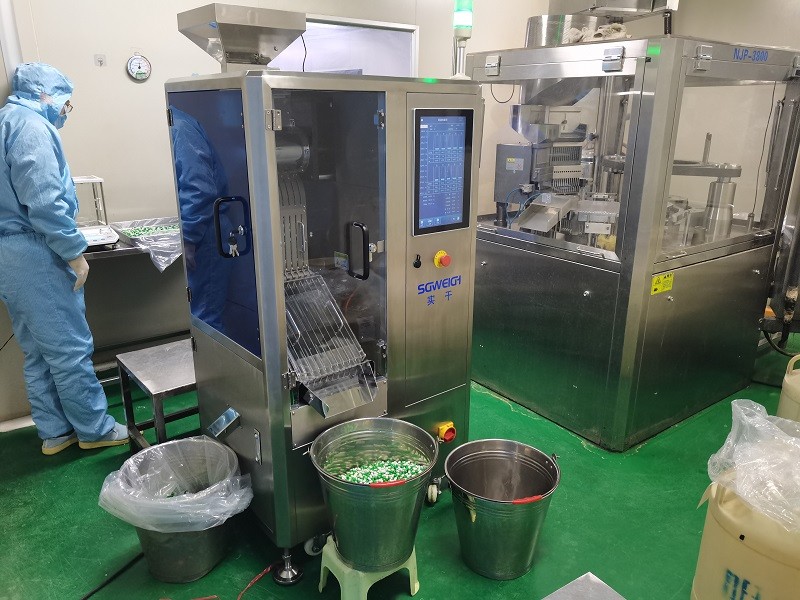

12.Easy integration with capsule filling and packaging lines.
Inner use the plastic wrapping ,out package will use stronger wooden cases.
Our standard package process:
1) Dust & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5) Packing Modules into Plywood Cases
6) Mark Shipping Mark In The Cases
If any special requirements, we will pack it as requested.
