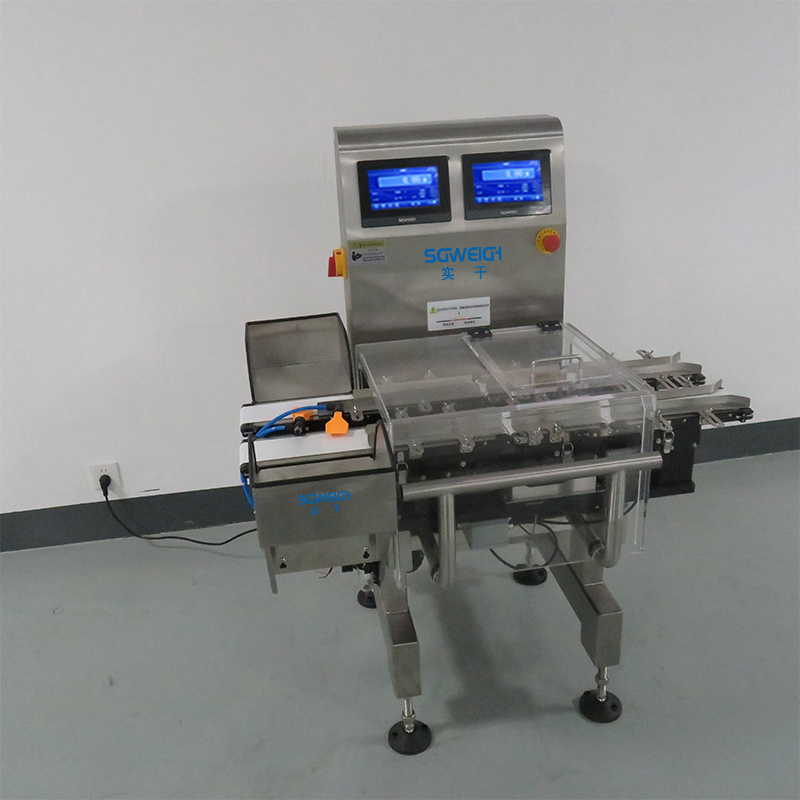

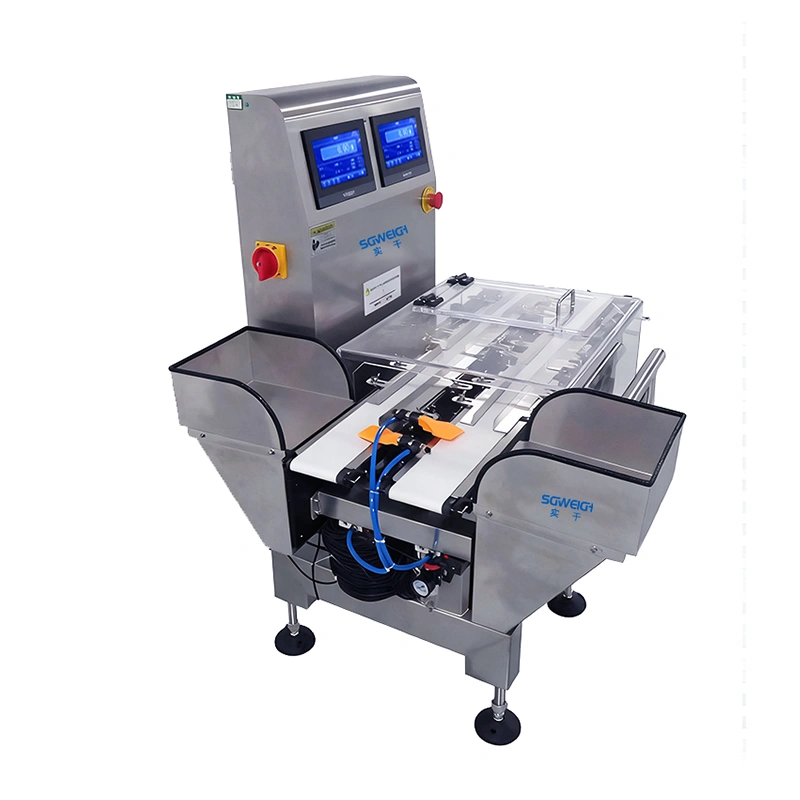

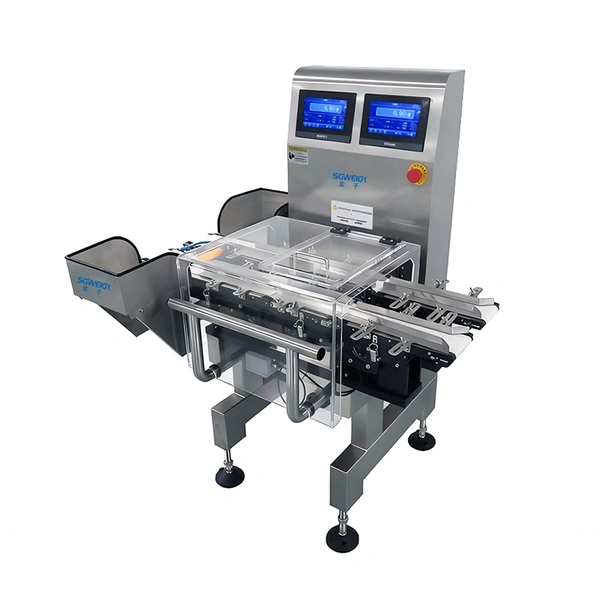

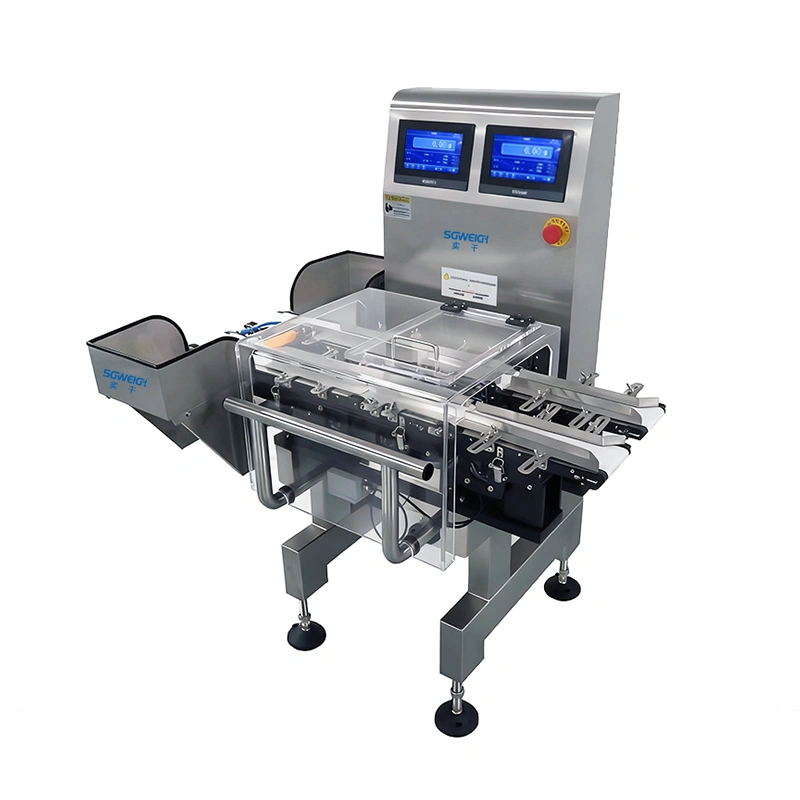

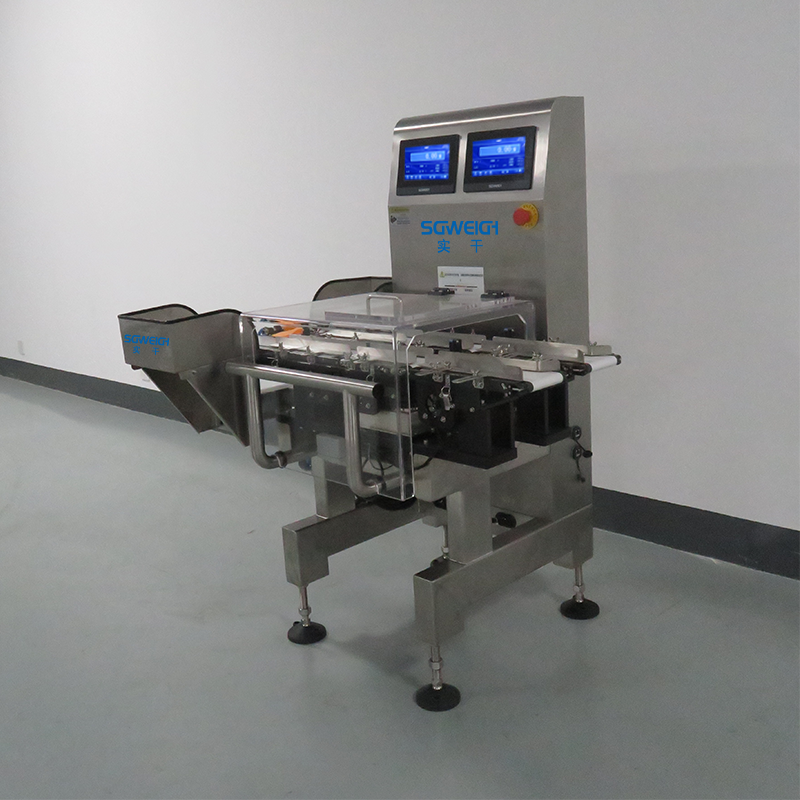

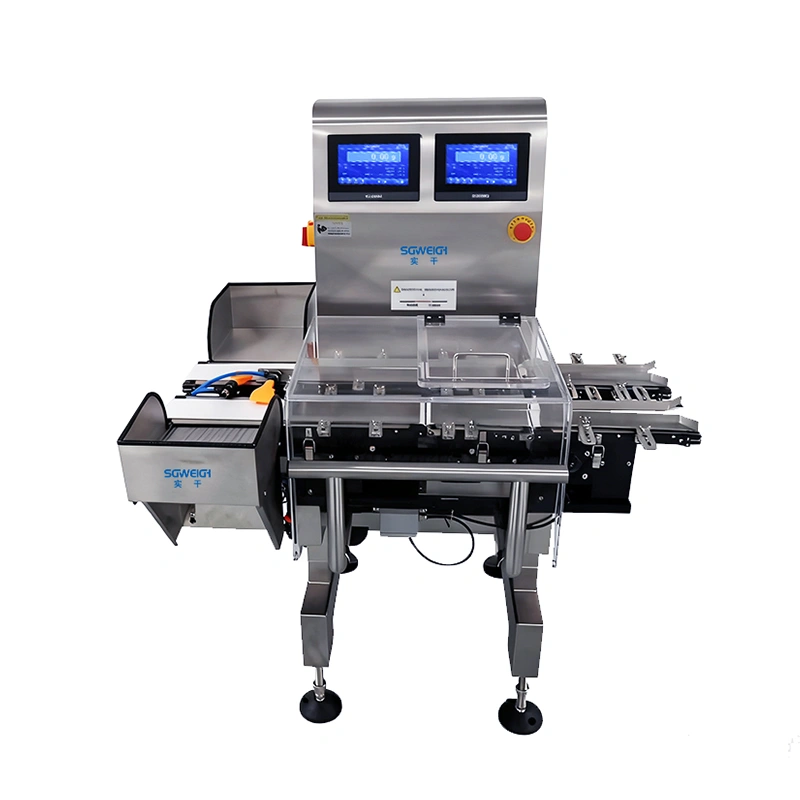

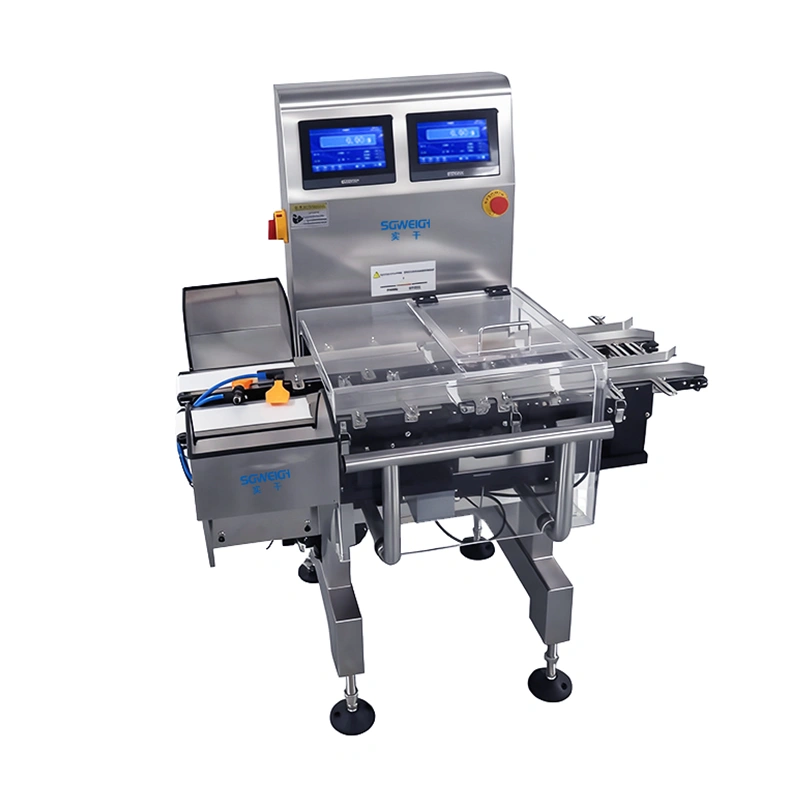

Dual Channel Blister Pack Checkweigher is a high-precision, dual-lane dynamic weighing system designed specifically for blister packs in pharmaceutical production. By operating two synchronized weighing channels, the system significantly increases throughput while maintaining superior accuracy required for tablet or capsule blister packaging lines.
Model: SG-2X
Weighing range: 1-50g
Product restrictions: L:180 W-40 H:2-20(mm)
Sorting accuracy: ±0.01g (Depends on products)
Graduation value: 0.01g
Maximum speed: 40-60 pcs/min (one lane)
Belt width: 100mm (customizable)
Machine weight: about 80kg
Power supply: AC220V±10%50HZ
Power: about 100W
Main material: SUS304
1. Dual-Channel High-Speed Configuration
Two independent weighing lanes
Doubled inspection capacity
Fully synchronized with upstream blister machines and downstream cartoners
2. High Accuracy for Small-Weight Products
Precision load cells suitable for lightweight blister packs
Dynamic compensation for vibration and line speed variation
Accuracy typically ±5–20 mg depending on blister size & speed
3. Stable Conveying for Blister Packs
Special anti-slip conveyor belt
Ensures stable weighing even at high speeds
4. Independent Reject Mechanisms
Each channel has its own rejector
Options: air jet, high-speed pusher, flap drop
Guarantees correct sorting without mixing lanes

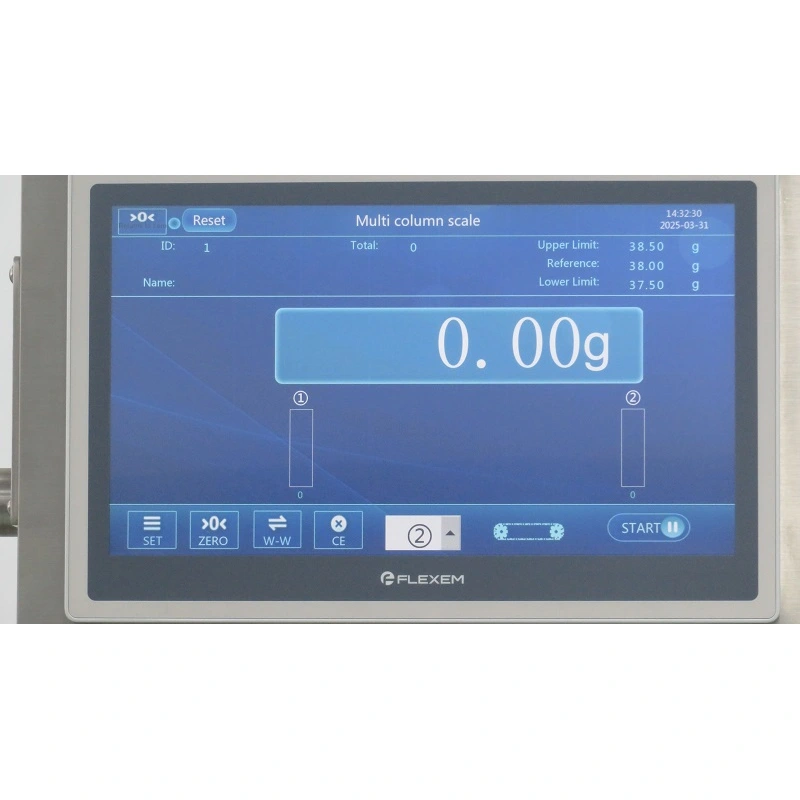

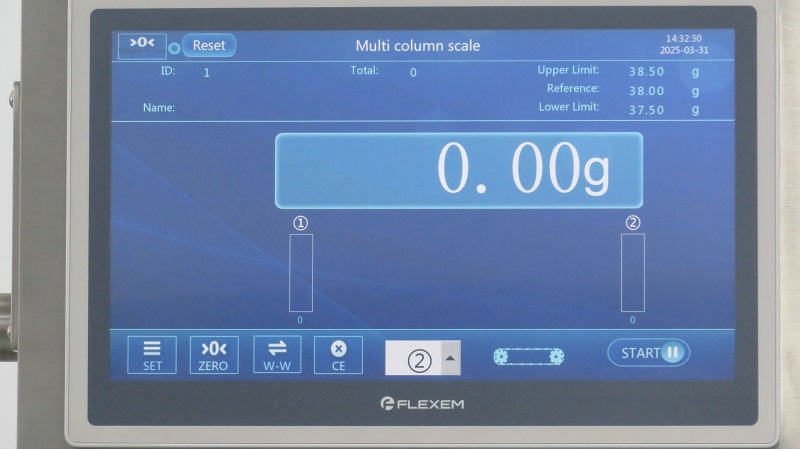

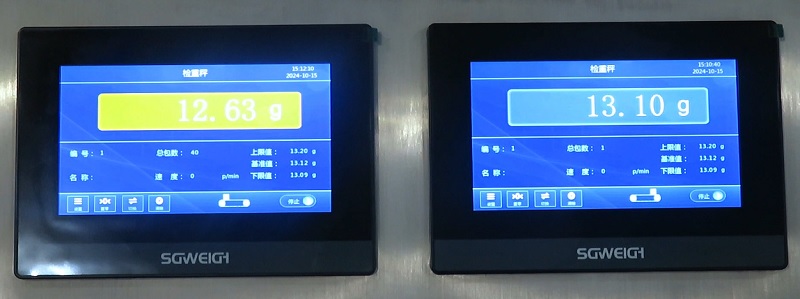

5. Intelligent HMI Control
Dual-lane data display and control
Automatic data recording
21 CFR Part 11 compliance optional
Ethernet, USB, or MES connectivity
6. GMP-Compliant Pharmaceutical Design
Stainless steel construction
Tool-free belt removal
Easy cleaning and maintenance
Suitable for cleanroom environments
● Our machines undergo comprehensive testing and commissioning before shipment to ensure stable and reliable performance.
● Equipment is packaged in thickened wooden crates with shock and moisture-proof interiors to effectively prevent damage during transportation.
● We partner with several professional international logistics companies and support a variety of shipping methods, including sea, air, and land transport.
● Ensure the equipment arrives safely and on time at your facility.
