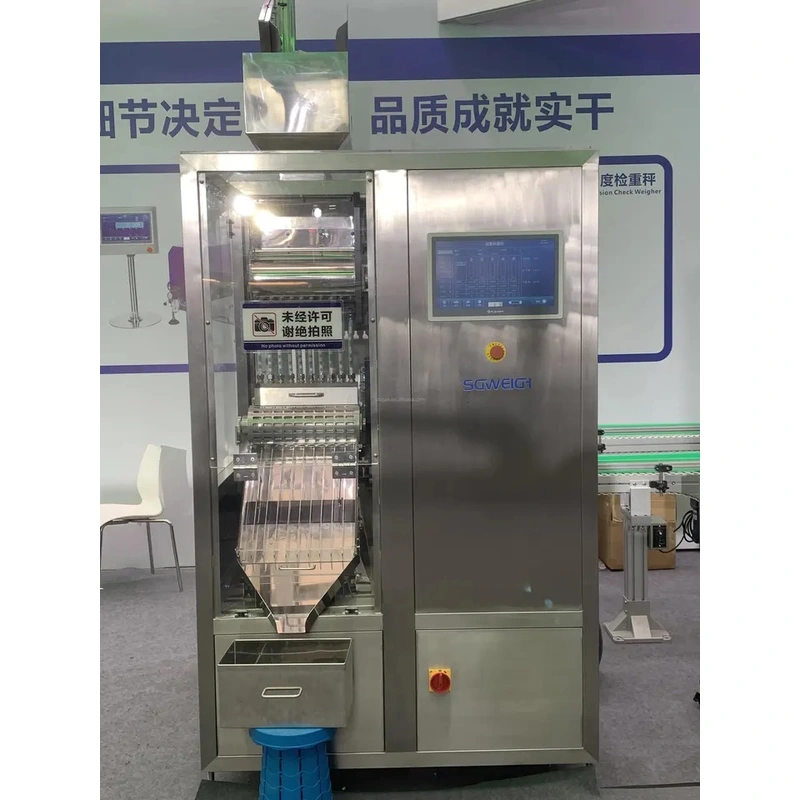

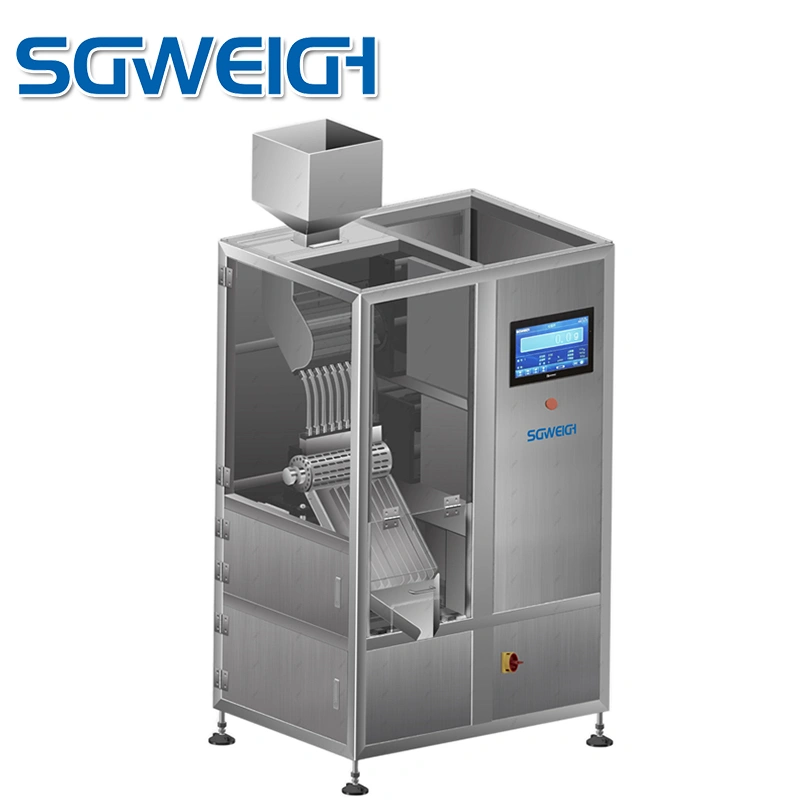

Capsule Online High-Precision Weighing Machine ensure capsule weight accuracy, improving product quality and compliance.Weighing Machine With Automatic Rejection ensure the weight of capsules-whether they are empty,filled or partially filled to maintain accurate dosing.Welcome to consult for quotation information !
Type：SG-IN10/SG-IN20/SG-IN3O
Weighing scope :5-2000mg
Display scale：0.1mg
Highest sorting accuracy:±0.5mg
Product specification:Capsule-00#-5#/Wafer-Φ5.5-Φ18mm/Thickness-3-12mm/Pill-Φ5.5-Φ12mm(Other sizes or shapes subject to testing)
Highest sorting ability :75000 PCS/HR/150000 PCS/HR/230000 PCS/HR
Number of columns:10 lanes/20 lanes/30 lanes
Power supply:AC-220V±10%, 50HZ
Compressed air:0.3-0.9Mpa
Use environment:15~30°C (The temperature change during use should not exceed the range of 1°C/h.Hunidity:30-70%(but no condensation)
Weight of Machine :350kg/500kg/700kg
Shell material:SUS304
You can select the best suitable model depending on the production volume.
◎Large screen display, clear viewing and easy operation
◎Default Chinese and English operation interface (can be customized in multiple languages)
◎Suitable for conventional Jiaohao tablets
◎Can actually display relevant data of each channel
◎Three-level operation authority management, support self-set password
◎100 product formula preset storage
◎All channels can be cleaned without disassembly
◎Multiple channels to pass products to improve production efficiency (the number of channels can be customized)

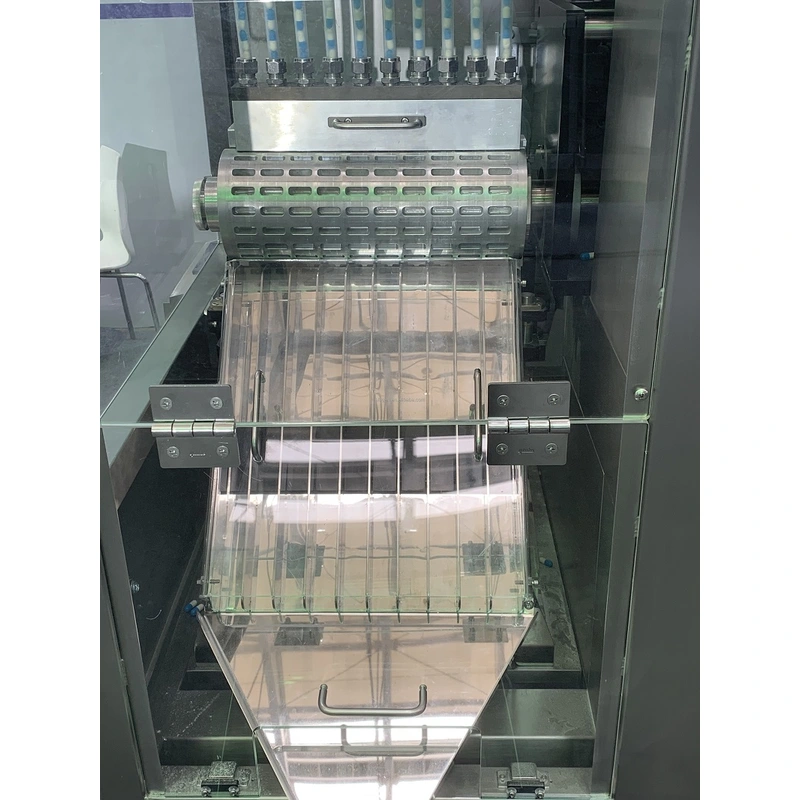

◎The capsules placed in the feeding hopper are divided into multiple lanes by the silo and transported, weighed and sorted at high speed.
◎Improve the reliability and environmental flexibility of capsule handling.
◎It can handle various capsules.
◎Can ensure accurate inspection and reliably reject products with inappropriate weight.
1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
Packing Detail:
1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
A. Pre -sale:
1. In accordance with the customer's requirements, the customer quotes the customer, and the customer has special requirements for timely recording feedback;
2. Sign a standardized product order contract, clarify responsibilities and other related matters;
3. Provide free warranty for one year, lifelong maintenance service, and be responsible for debugging the product before delivery;
B. After -sales:
1. If the customer's product fails, the problem will be solved for you as soon as possible
2. During the warranty period, the product maintenance is free. It exceeds the warranty period and can also provide maintenance. If the accessories are replaced, the product accessories are provided at the cost price.
