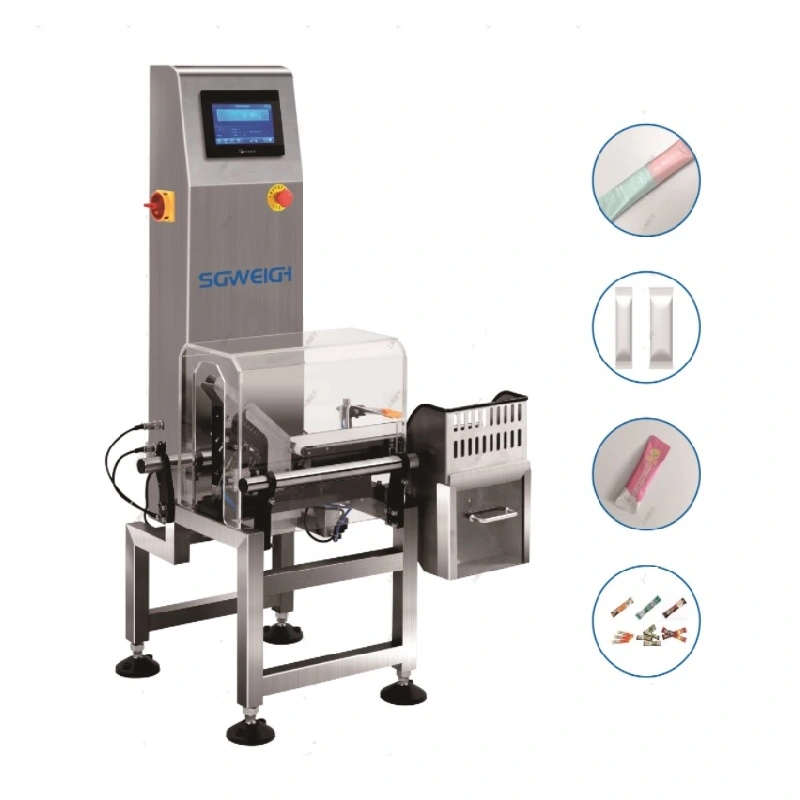

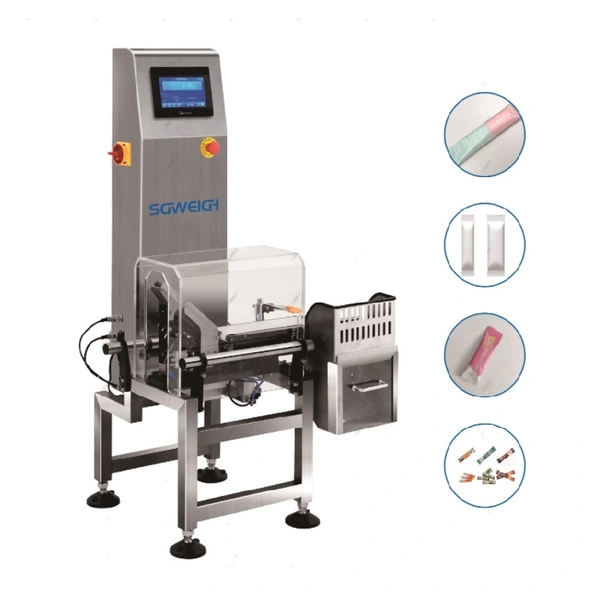

The Cheap Dynamic Weighing Machine High Speed Professional Checkweigherr measures the weight of an object through a load sensor and transmits the weight signal to the weight indicator for display. When an object passes through the weighing area, the load sensor senses the pressure change and generates a corresponding electrical signal. After a series of signal processing and conversion, the electrical signal is transmitted to the weight indicator for display. At the same time,the conveying device will continuously transport the object to the next link to achieve continuous measurement.
Model: SG-1X
Weighing range: 1-50g
Product restrictions: L:180 W-40 H:2-20(mm)
Sorting accuracy: ±0.01g (Depends on products)
Graduation value: 0.01g
Maximum speed: 70pcs/min
Belt width: 100mm
Machine weight: about 50kg
Power supply: AC220V±10%50HZ
Power: about 100W
Main material: SUS304
For reference only, please consult for details!
Contact us to recommend a product that is suitable for you!
1. High-precision measurement: Using high-precision weighing sensors and advanced signal processing technology, high-precision weight measurement can be achieved.
2. Continuous measurement: The continuous conveying mode of the conveying device enables the checkweigher to realize the functions of continuous measurement and sorting.
3. Easy to maintain: The checkweigher has a simple, reliable structure and is easy to maintain, which reduces operating costs.
4. Wide range of application: The checkweigher can be used to measure objects of various shapes, sizes and weights, and has a wide range of applications.
5. High degree of automation: The checkweigher can be integrated with other equipment on the production line to achieve automated control and management.
1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
Packing Detail:
1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
