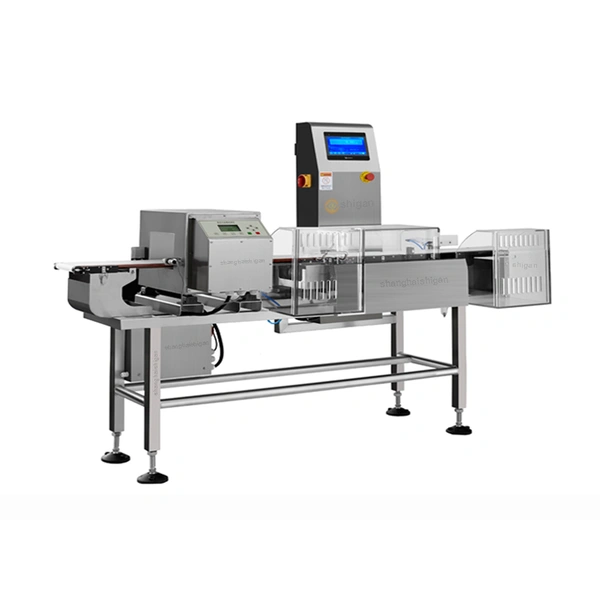

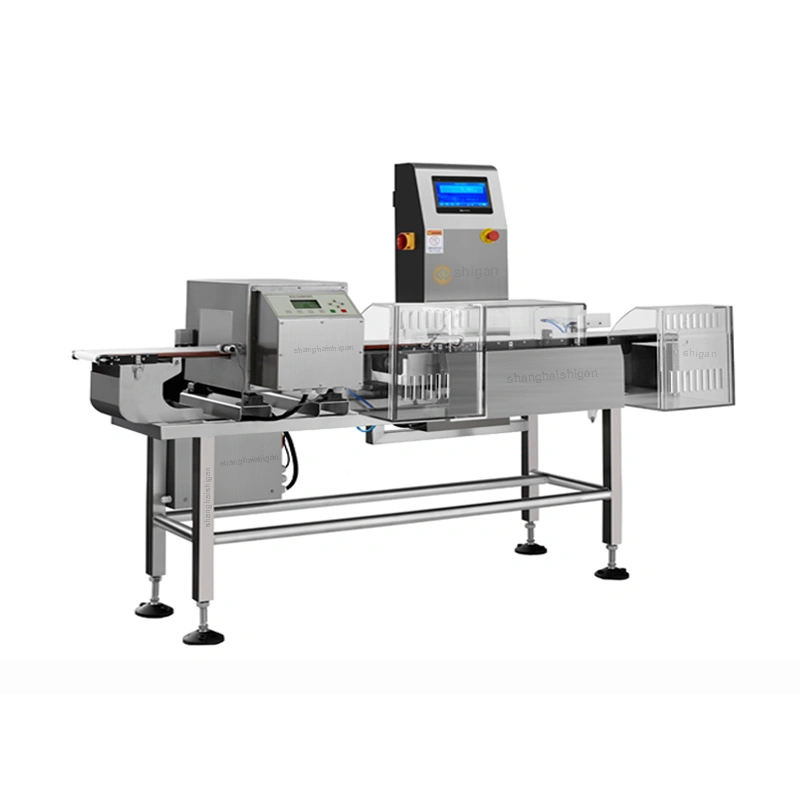

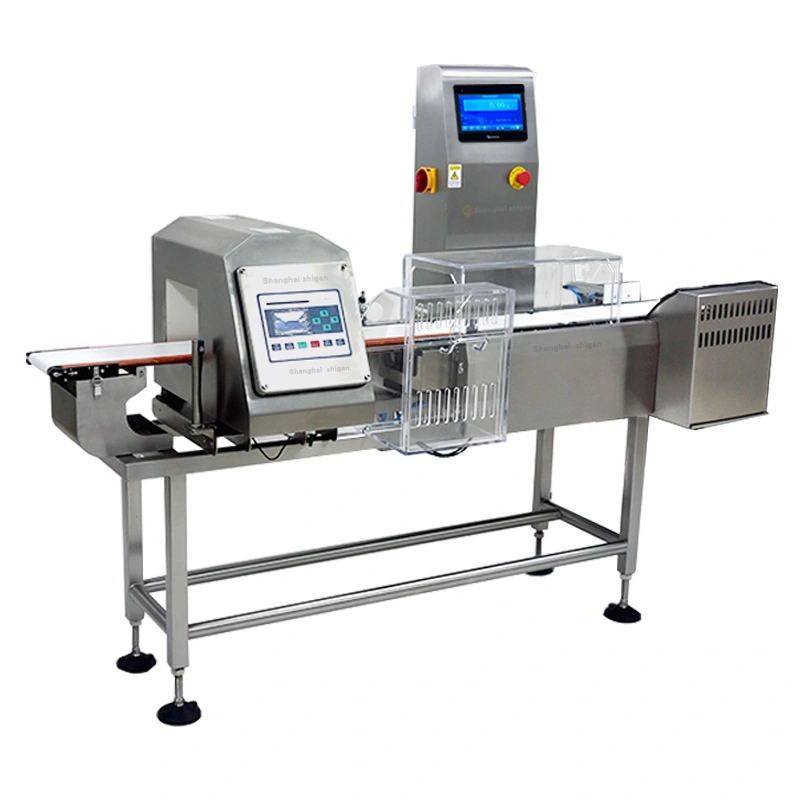

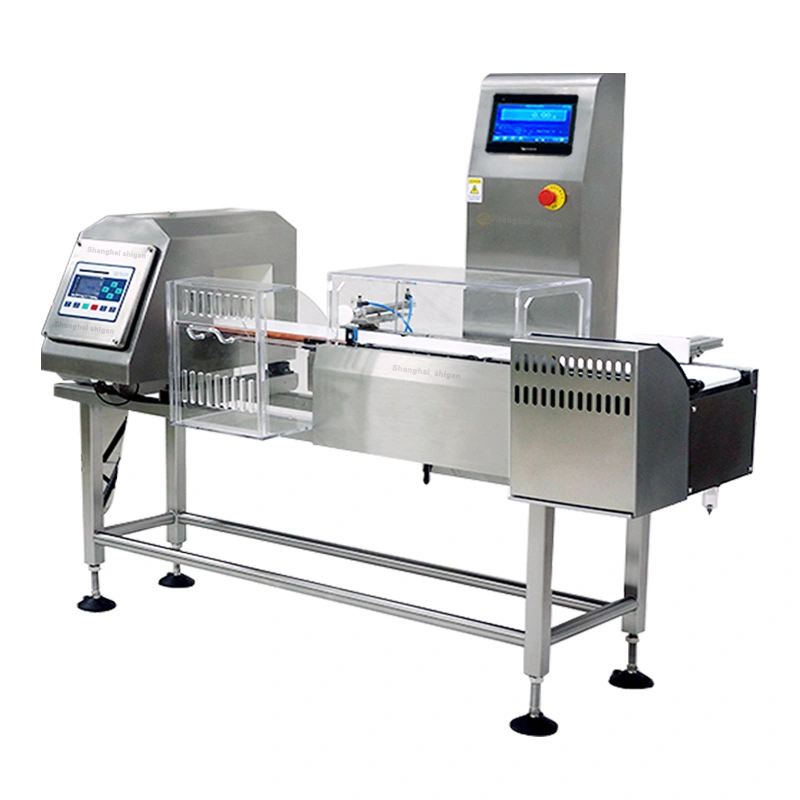

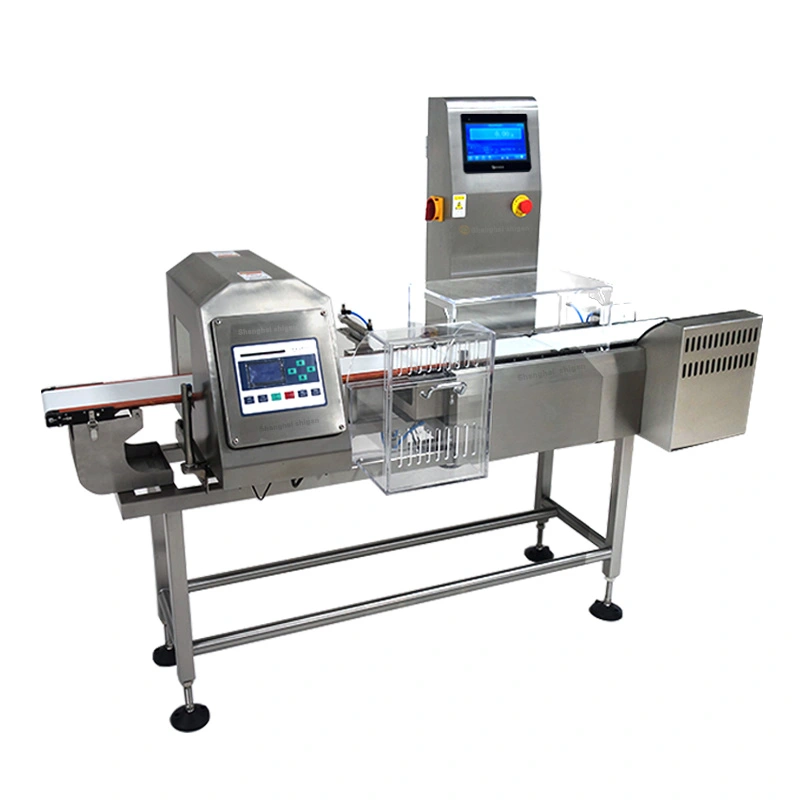

Checkweigher and metal detector combo with reject function and reverse detection is a combination system of checkweigher and metal detection in a very compact collection on one device. The combination of two detection technologies and a touch screen user interface enables simultaneous weight detection and metal detection of products.Checkweigher and metal detector combo is the first choice for companies with limited production and installation space.Both systems are controlled through a single operator terminal. This simplifies and speeds up data entry, product replacement time and processes. It is mainly suitable for the detection of stainless steel, copper, aluminum, iron and other metal foreign objects and online weight detection in the food, pharmaceutical, electronics, chemical, rubber and plastic, toys, wool spinning and other industries.If you are interested in our products,please contact us!
Detection method: double-balanced coil induction method
Detection sensitivity: iron (φmm) 0.6-0.8, stainless steel (φmm): 1.5-2 non-ferrous (φmm): 1.2-2.3
Induction adjustment: microcomputer control
Detection width: 600mm (can be customized)
Detection height: 120mm (can be customized)
Alarm mode: sound and light alarm when metal foreign matter is detected, the conveyor belt automatically stops or optional automatic rejection device
Power supply: AC220V 50-60Hz
Power: about 140W
Dimensions: L1650-H1050*W900(mm)
Machine weight: 90kg
1. The system adopts a variety of the latest technologies in the industry, and is equipped with a hardware solution that combines high-speed DSP, high-performance FPGA and 32-bit microcontroller, making the performance of the whole machine even better;
2. Using the unique metal foreign body detection method of Youdun, multiple detection algorithms run at the same time, with high detection accuracy, good reliability and strong anti-interference ability;
3. Wide range of application, dry, wet, and high-salt products can be detected, and good detection results can be achieved;
4. Simple structure design, the whole machine is made of stainless steel (SUS304), the material is thick, the structure is firm, and it is anti-rust, anti-corrosion and easy to clean;
5. Fully sealed design, the protection level reaches IP66, dustproof and waterproof.
It is mainly used for metal detection in various industries such as textiles, frozen products, toys, food, additives, medicines, health products, cosmetics, etc. It can detect iron, stainless steel, copper, aluminum and lead and other metal particles. Bulk, bags, boxes, boxes, etc. in all forms.
