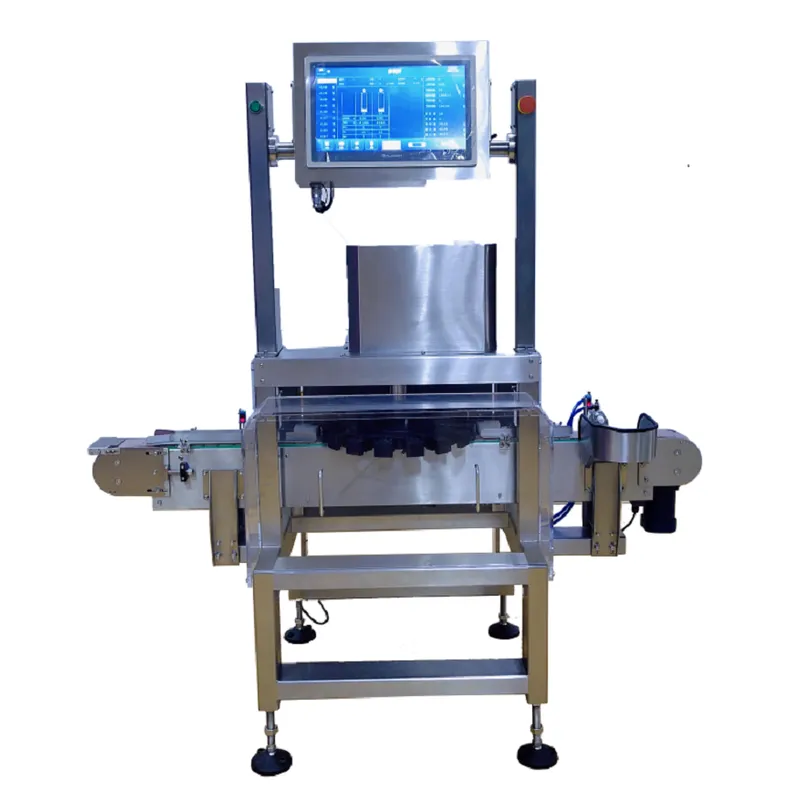

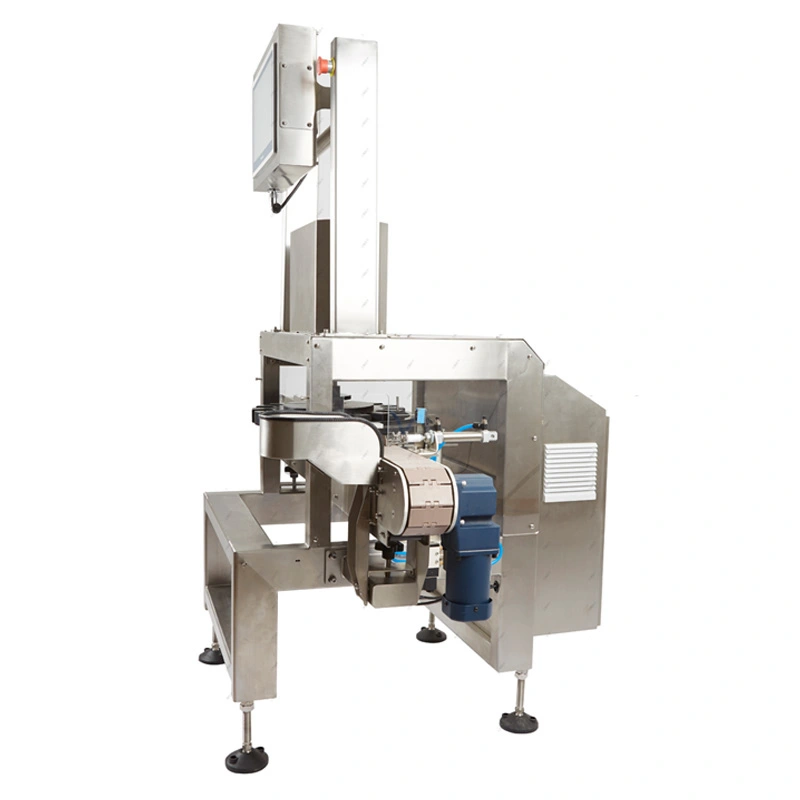

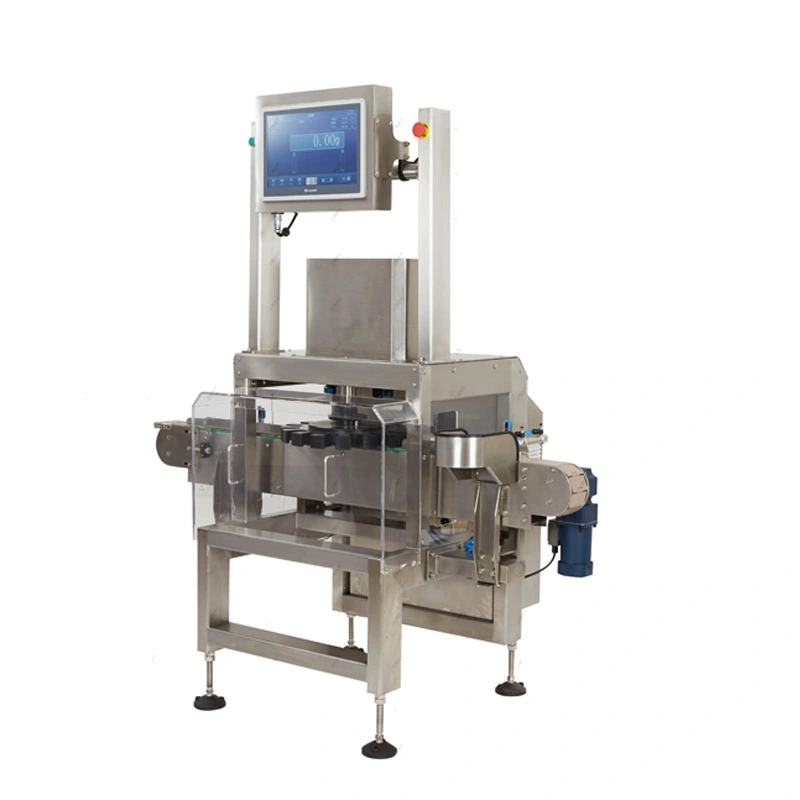

The Checkweigher For Vials And Small Containers can ensure that the product will not fall under extremely high operating conditions.This series of checkweigher is specially designed for round or square bottles with a small diameter and a height greater than the diameter of the bottle body.Bottle Line Check Weigher With Rejection provides a powerful solution for high-speed bottling production lines. Assure! In view of the characteristics of bottled/canned products, in order to prevent bottled products from being damaged, our company specially installed guardrails in the buffer weighing area to prevent unnecessary accidents.
Model: SG-Z1
Weighing range: 5-300g
Minimum scale: 0.01g
Sorting speed: up to 50 pieces/min (one channel)
Conveying speed: 20-100m/min
Operation mode: touch operation
Conveying direction: Facing the touch screen from left to right
Removal method: air blowing removal/push plate removal
Belt height from the ground: 750±50mm (can be customized according to customer requirements)
Machine structure: stainless steel (SUS304)
Power supply: 220V 50-60HZ
Power: about 300W
Windshield: thick acrylic (to avoid airflow interference)
Working environment: temperature: 0℃～40℃, humidity: 30%～95%
Remarks: The properties of the tested products and the use environment are different, and the detection speed and accuracy are also different. The actual test is the standard.
1. Adopt advanced digital signal processing to realize high-speed and stable weighing.
2. LCD touch screen, easy to operate.
3. Self-diagnosis function, when Rom/Ram, A/D light tube.
4. Belt disassembly without tools, easier to clean.
5. Sound and light stop automatically. blast. Or pneumatic push rod emergency stop button for safe working status (according to customer's choice).
6. Strong SUS304 stainless steel structure, good performance.
1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
Packing Detail:
1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
A. Pre -sale:
1. In accordance with the customer's requirements, the customer quotes the customer, and the customer has special requirements for timely recording feedback;
2. Sign a standardized product order contract, clarify responsibilities and other related matters;
3. Provide free warranty for one year, lifelong maintenance service, and be responsible for debugging the product before delivery;
B. After -sales:
1. If the customer's product fails, the problem will be solved for you as soon as possible
2. During the warranty period, the product maintenance is free. It exceeds the warranty period and can also provide maintenance. If the accessories are replaced, the product accessories are provided at the cost price.
