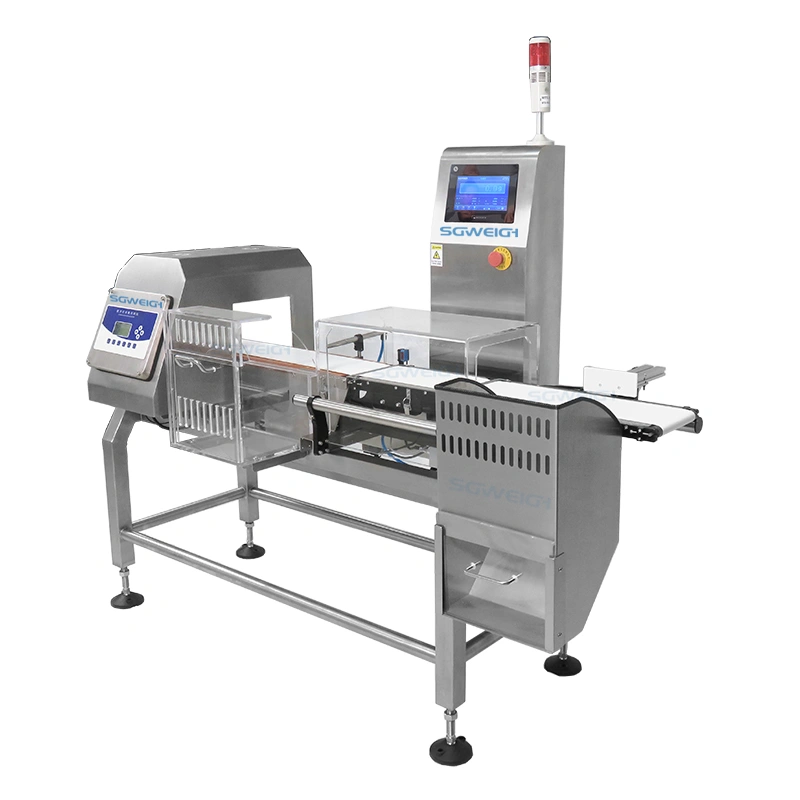

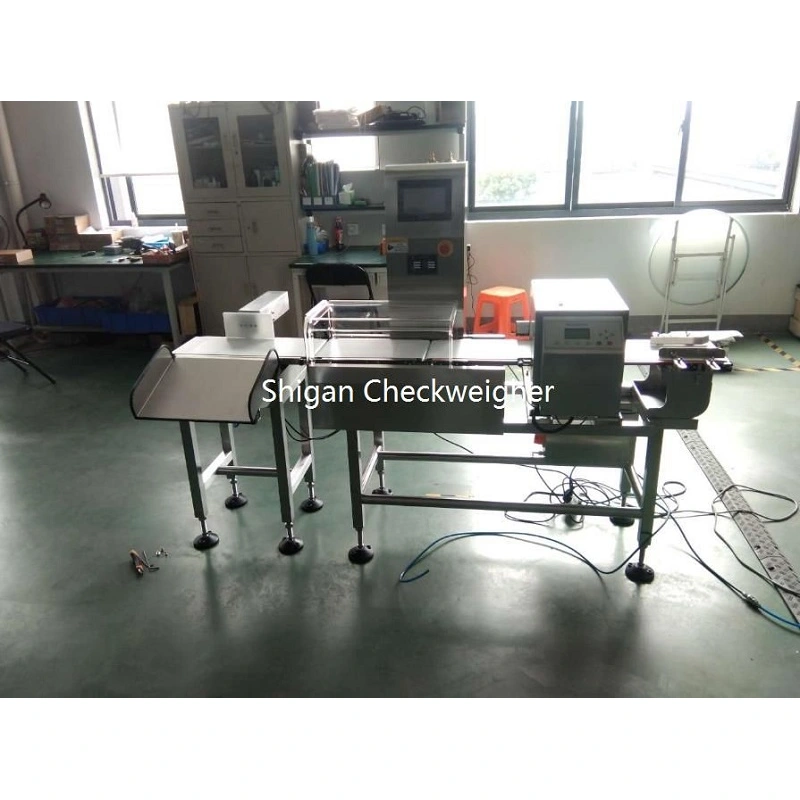

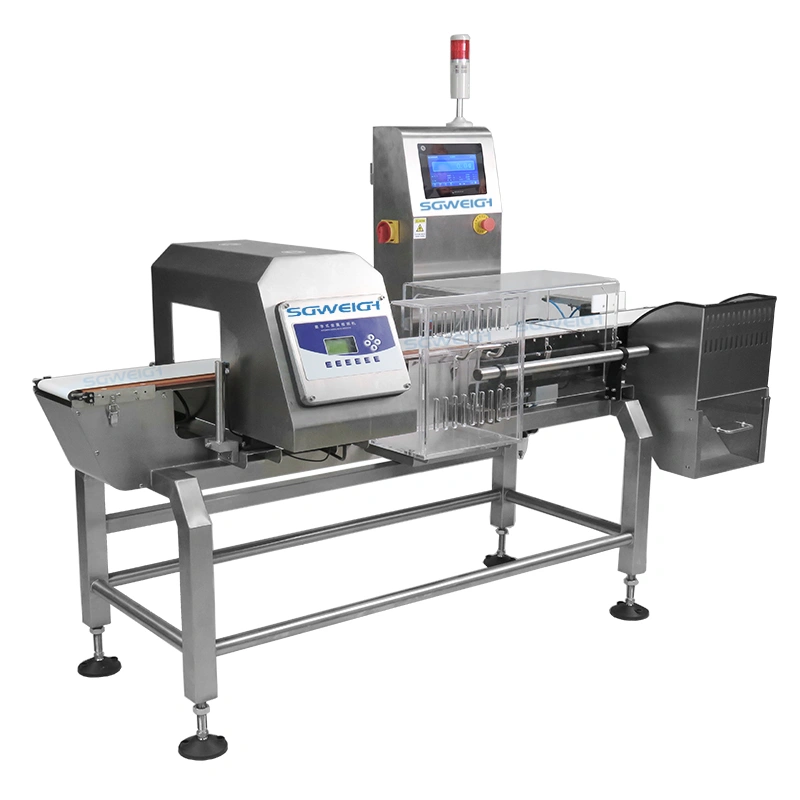

The Cost-Effective Check Weigher Metal Detector Combination Machine has a small footprint. It is an online inspection equipment specially designed for automatic packaging lines.Combined Metal Detector with Check Weigher is the most effective solution for end-of-line inspection and quality control.Welcome to consult for quotation information !
Measuring method: electromagnetic induction / digital load cell
Size: 330×150mm
Accuracy: FE0.8mm SUS2.0mm
Selection accuracy: ±0.5g
Weighing range: 5 grams - 900 grams
Passing height: 110m
Pass width: 280mm
Packaging length: ≤300mm
Display graduation value: 0.1g 0.2g 0.5g 1g
Number of sorting segments: 3 segments
Sorting ability: 60 times/min
Conveyor belt speed: 10-45 m/min
Ground height: 735mm—800mm
Working temperature: 0-40℃
Weight: about 160kg
Dimensions: 1900mm×700mm×1120mm (L×W×H)
For reference only, please consult for details!
Contact us to recommend a product that is suitable for you!
1. It can detect the quality of magnetic and non-magnetic metal miscellaneous protection products.
2. It can automatically learn products with relatively large effects, and adjust and compensate internal parameters according to the size of the product effects, so as to achieve safe product passing and detectable metal impurities.
3. 100 kinds of product parameters can be memorized, and the name of the memorized product can be changed, so that it is convenient to find the corresponding product parameters in many products at any time
4. The probe coil is fully sealed with glue, so as to improve the anti-interference ability to the outside world and reduce false alarms caused by external metal movement.
5. Anti-vibration, anti-noise performance, and temperature change, can adapt to harsh working environment.
6. The stable stainless steel probe and conveying frame adopt a fully welded "open structure" to meet hygienic requirements.
7. Conveyor belts are available in food grade and non-food grade.
8. Protection grade IP65, in line with HVCCP and IPS certification.
1. Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases
Packing Detail:
☂ Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
✈ We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
About the price
The price is based on the customer service quotation as the real price!
About quality
Seven-day replacement, one-year warranty, lifetime maintenance!
About the certificate
Each product will be equipped with a certificate of conformity before shipment, please rest assured to buy!
About delivery
The delivery cycle is within 3-5 days after the order is placed. If there is stock, it will be sent out in a short time. The customer needs to customize it. The specific delivery time will be notified to you by the customer service track!
About maintenance
If the customer's product fails, we will provide you with a specific solution.
