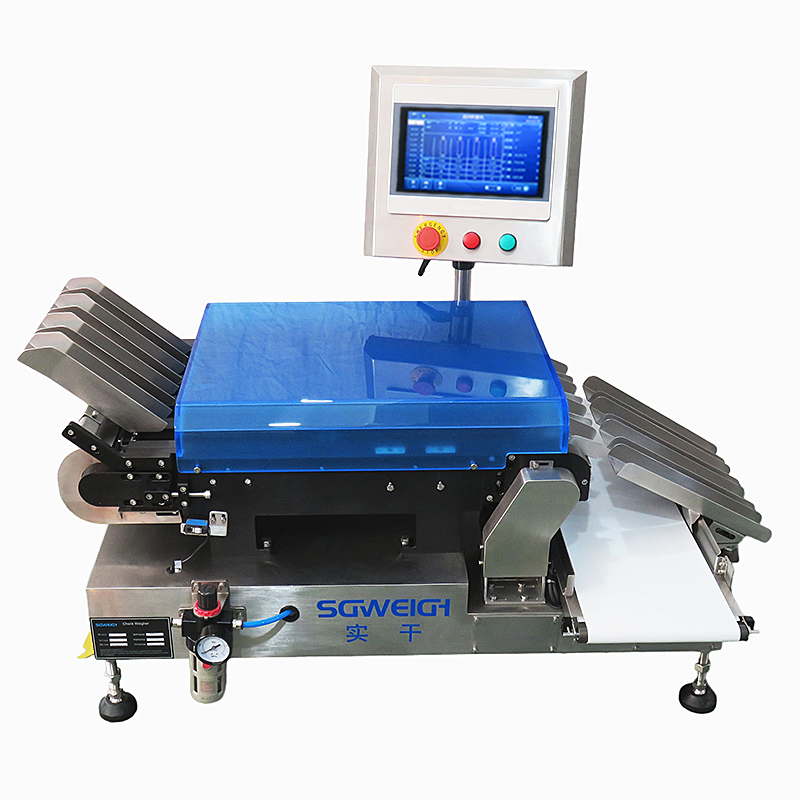

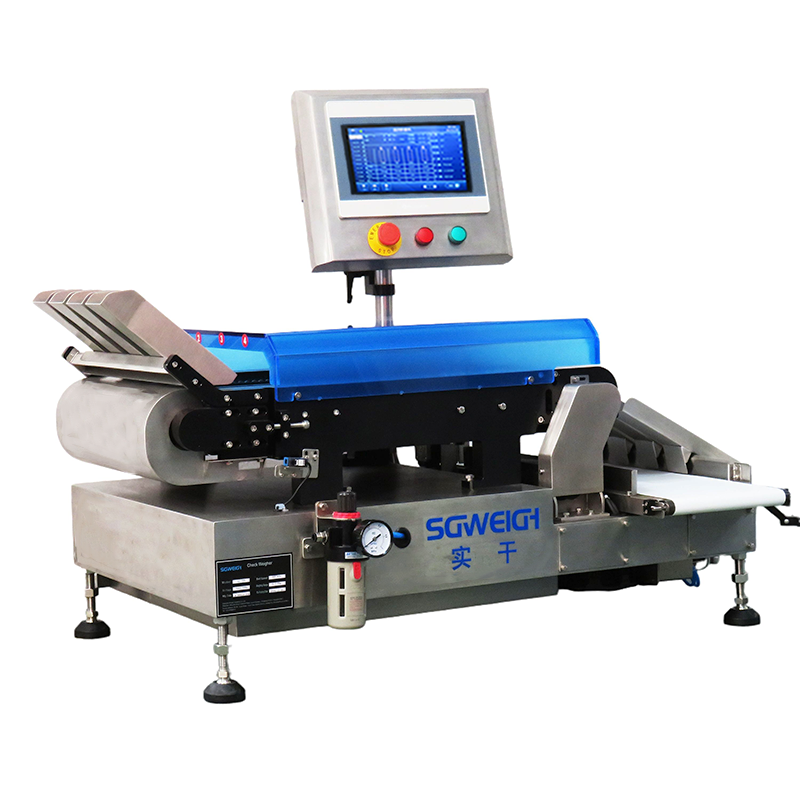

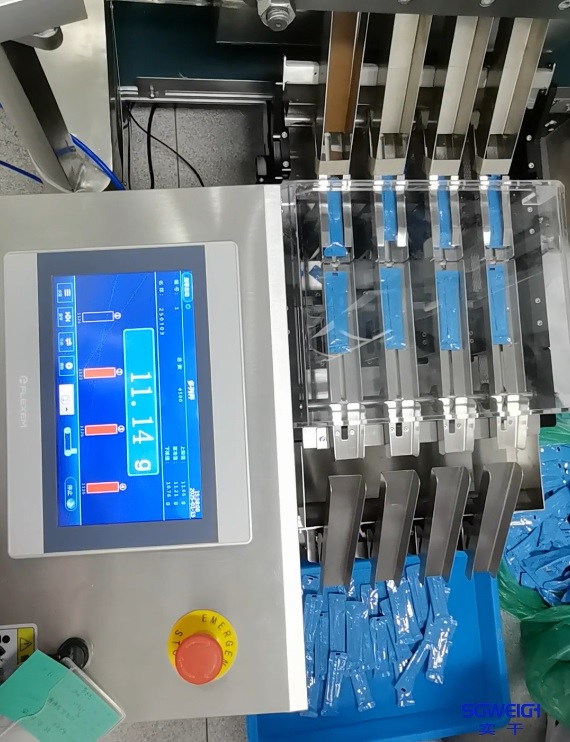

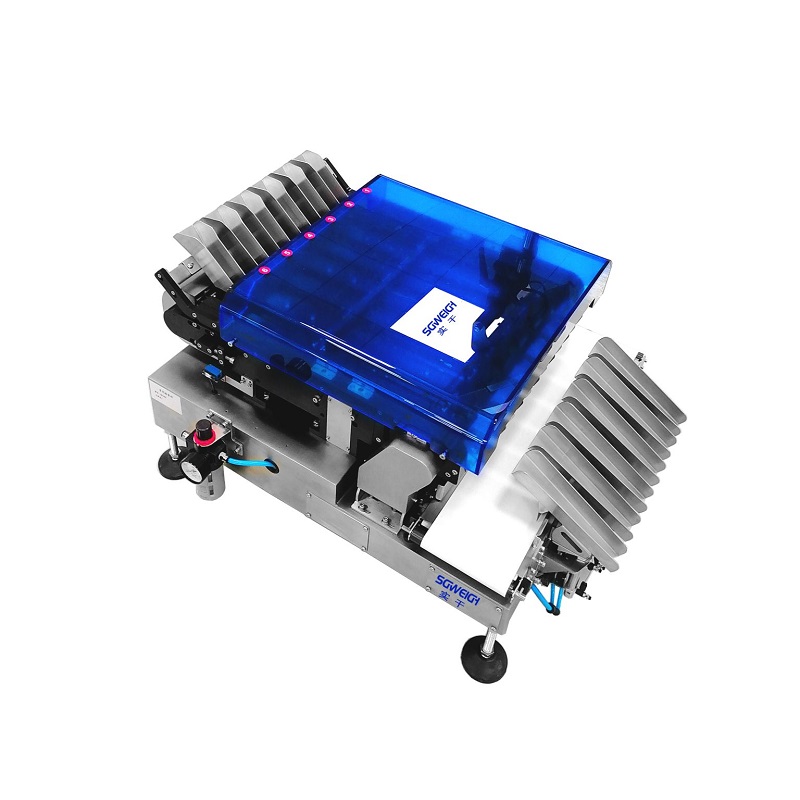

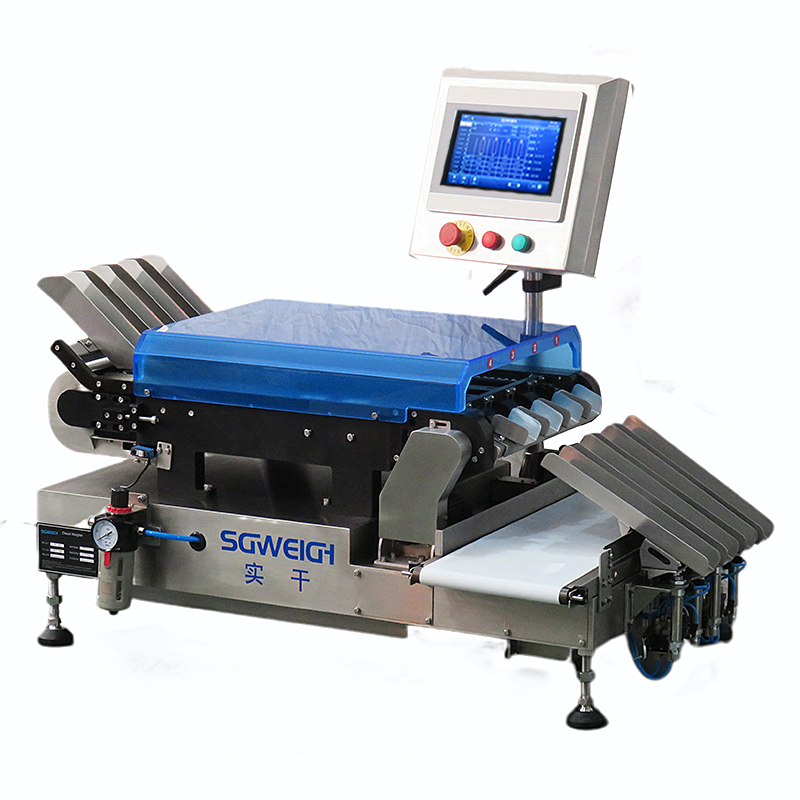

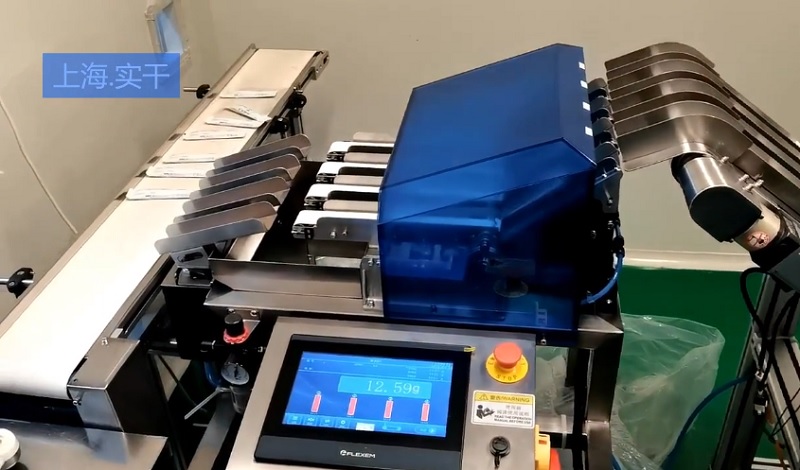

The 4-Lane Stick Packs Check Weigher is a high-precision inline weighing system designed for multi-lane packaging lines.Multi-line Check Weigher ensures every stick pack leaving the production line meets strict weight standards — detecting underweight or overweight products instantly.
Model:SG-4X
Weighing range:1-50g
Accuracy:0.01g (Depends on products)
Weighing speed:The single-lane speed can reach up to 70 pcs/min (depending on the length of the product)
Restrictions of product:L:180 W:40 H:2-20(mm)

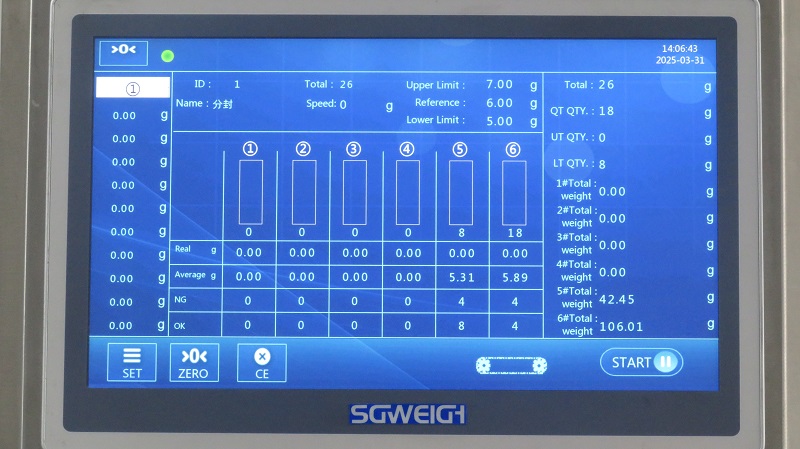

Operation way:Touch screen
Operation screen:12 inch screen
Material:Stainless steel（SUS304）
Power supply:220V 50-60HZ
Power:About 200W
1. High speed and high accuracy.
2. Sanitary design, conveyor tool-free disassembly
3. Small footprint, independent channels, trend control.
4. Data output supports common send/receive communication protocols.
5. Multi-level user password protection to ensure data security.
6. No additional spreading conveyor is required, as the checkweigher can receive packages at the same center spacing as the filling and packaging machine.
Inner use the plastic wrapping ,out package will use stronger wooden cases.
Our standard package process:
1) Dust & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5) Packing Modules into Plywood Cases
6) Mark Shipping Mark In The Cases
If any special requirements, we will pack it as requested.
