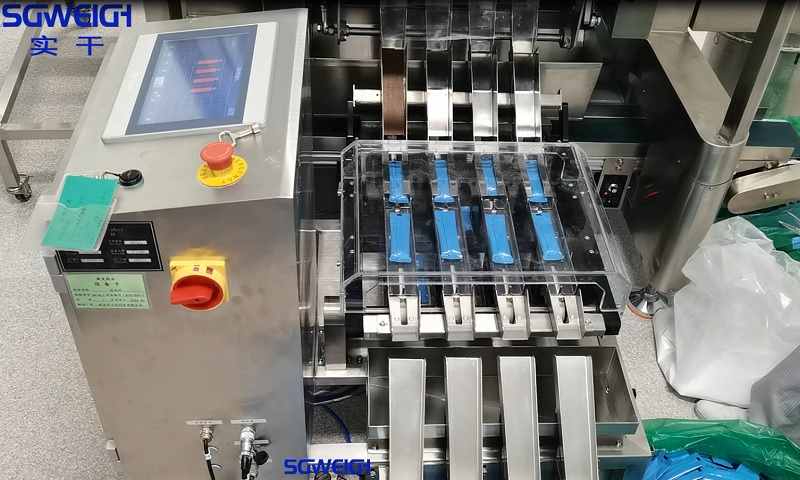

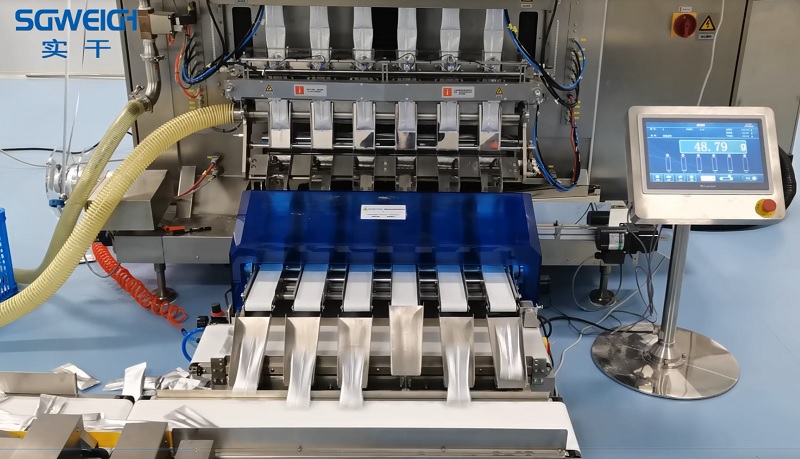

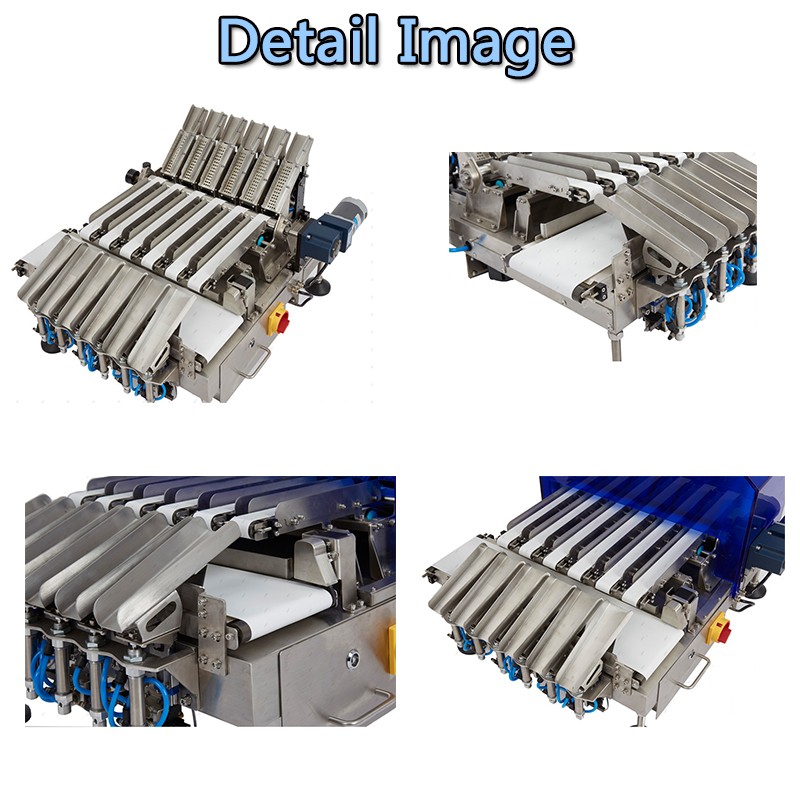

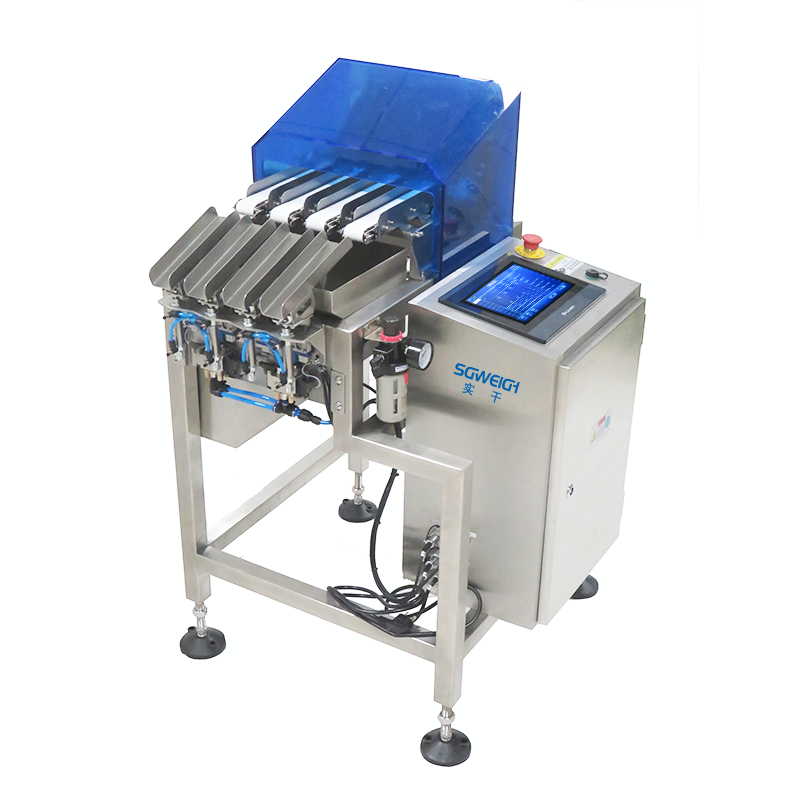

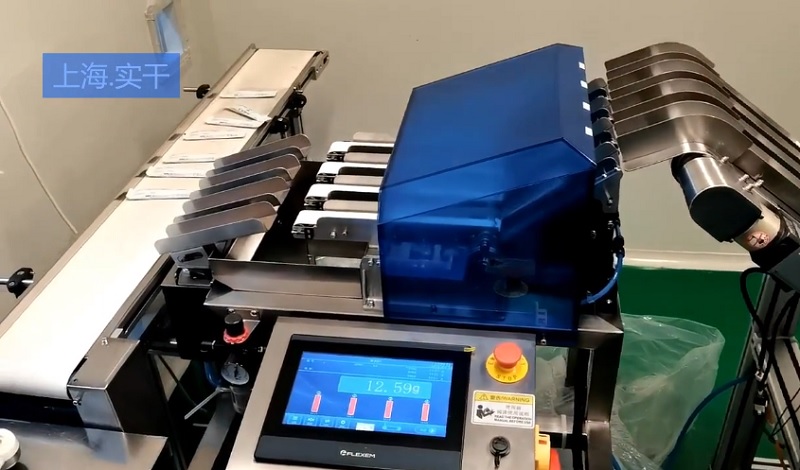

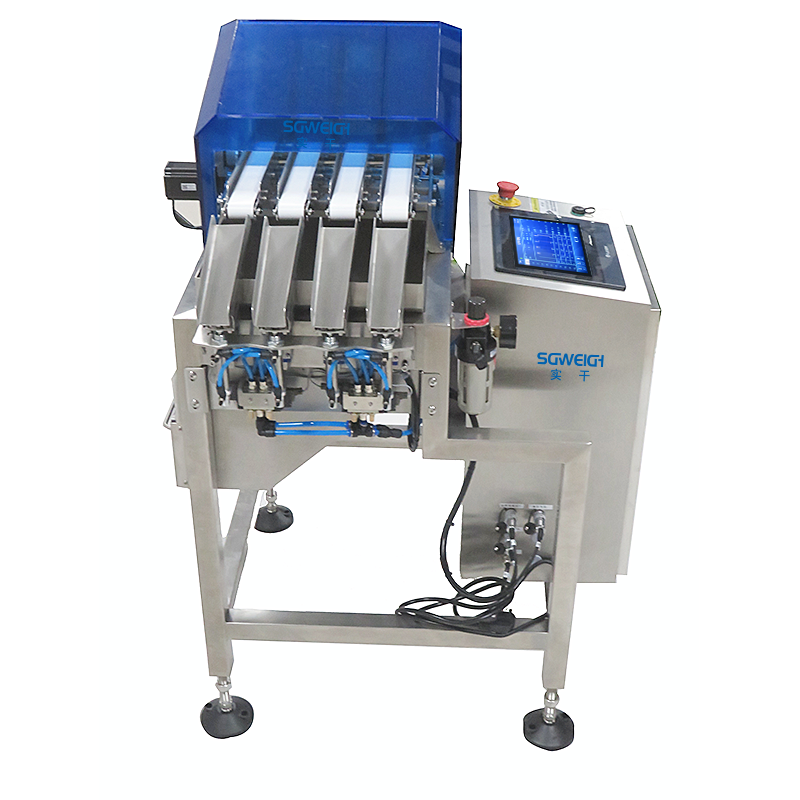

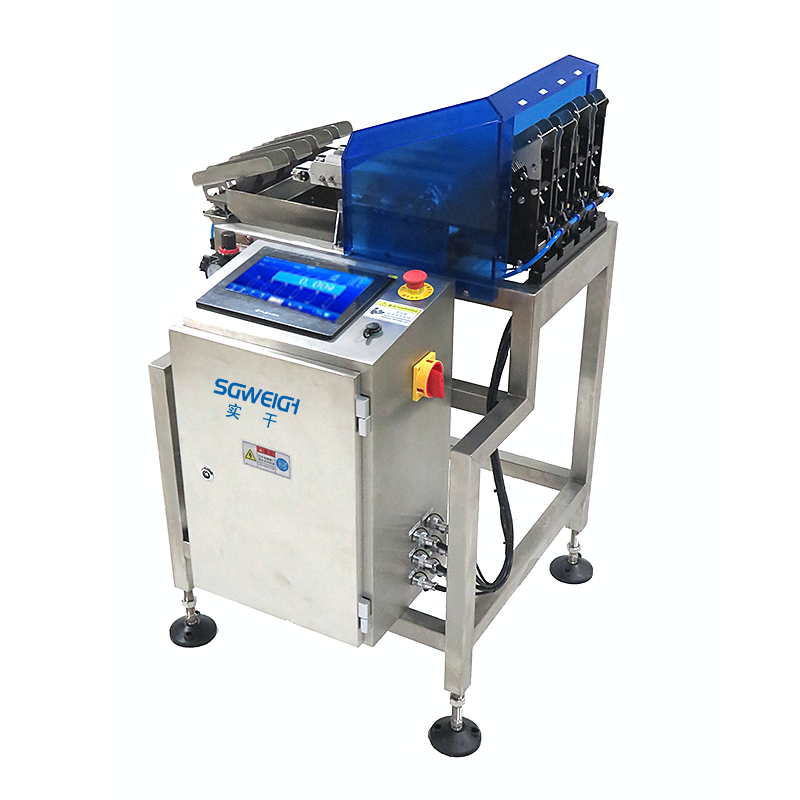

Dynamic Multi Lines Checkweigher Solution is an automated weighing system commonly used in high-speed production or packaging lines. It can simultaneously process, weigh, and sort four parallel filled strips.4-Track Weight Checker for Liquid Long-Stick Packs ensures that every bag on the production line meets the nominal weight, preventing underfilling or overfilling.
Model:SG-4X
Weighing range:1-50g
Accuracy:0.01g Depends on product
Weighing speed:The single-lane speed can reach up to 70 pcs/min (depending on the length of the product)
Restrictions of product:L:180 W:40 H:2-20(mm)
Operation way:Touch screen
Operation screen:12 inch screen
Material:Stainless steel（SUS304）
Power supply:220V 50-60HZ
Power:About 200W
Weight:About160KG

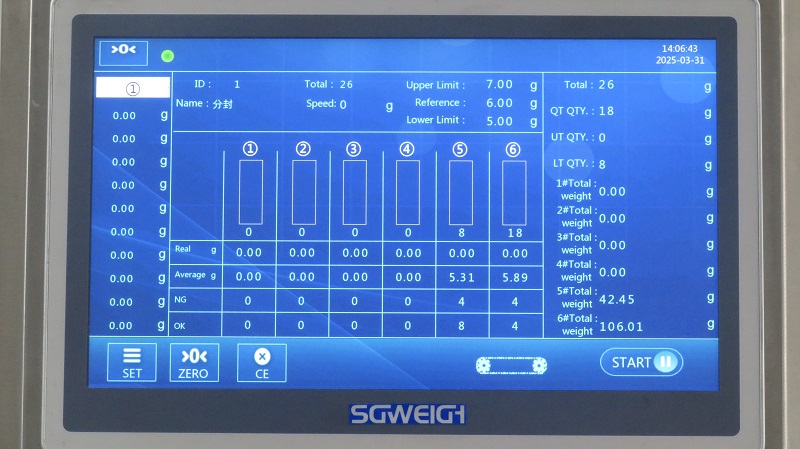

1. Color LCD touchscreen interface for easy operation.
2. Default language options: Chinese and English.
3. Storage for 100 product test data types for user convenience.
4. USB data storage port for transferring report data to a PC for analysis and printing.
5. Password protection for parameter settings, restricting access to management personnel only.
6. Automatic zero-point tracking system ensures reliable test data.
7. External data communication port for connection to other equipment on the production line (e.g., multi-lane packaging machines, metal detectors) (customizable).
Inner use the plastic wrapping ,out package will use stronger wooden cases.
Our standard package process:
1) Dust & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5) Packing Modules into Plywood Cases
6) Mark Shipping Mark In The Cases
If any special requirements, we will pack it as requested.
