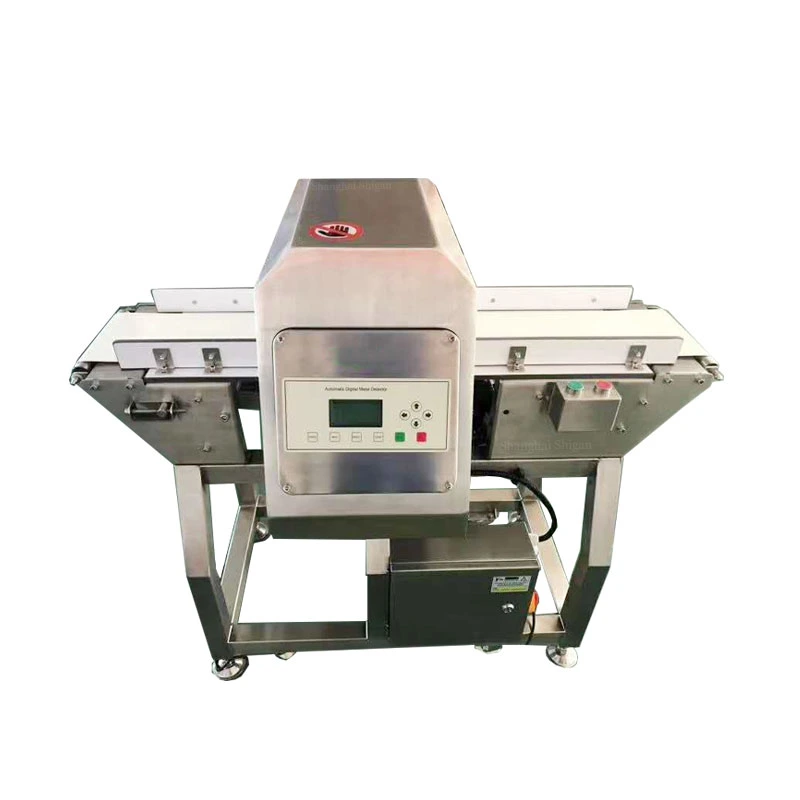

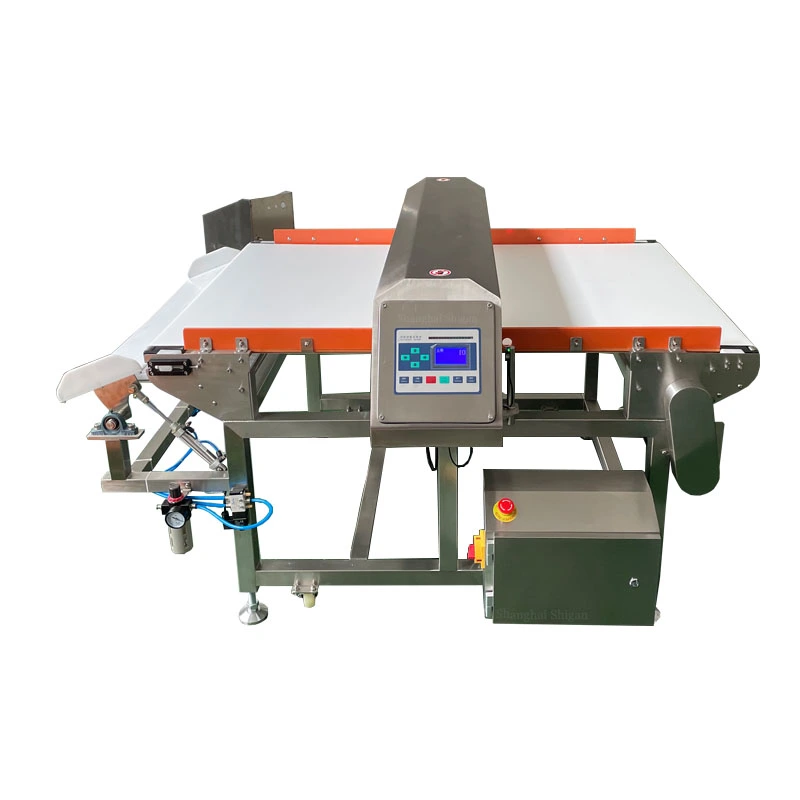

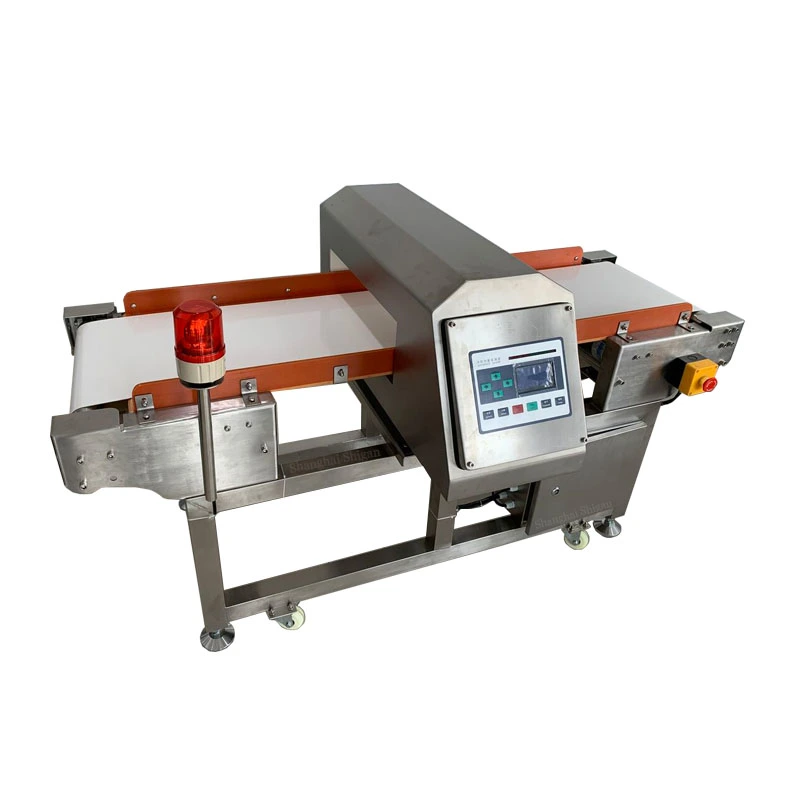

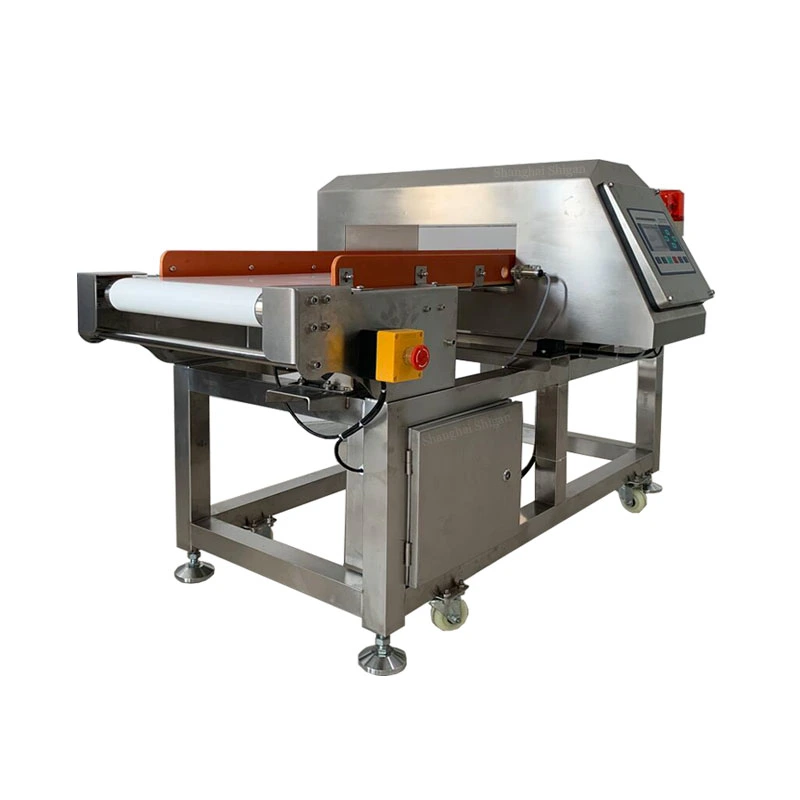

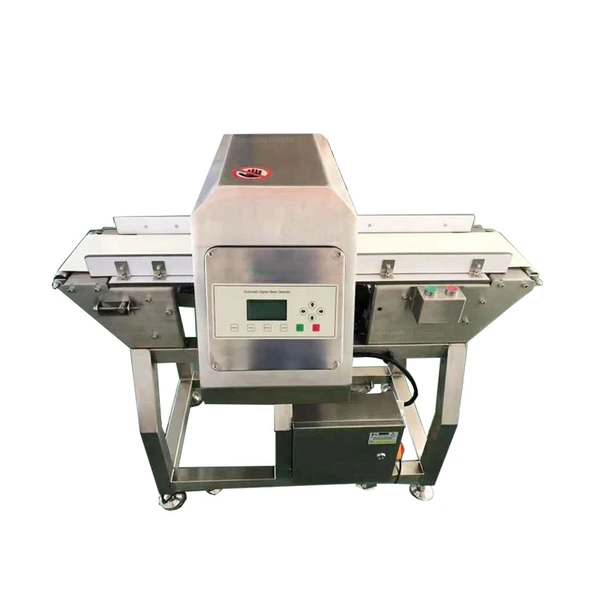

Flip plate type daily chemical metal detector with rejection function adopts the principle of balance, through the combination of DSP and single-chip microcomputer, it realizes the full digitization and intelligence of metal detection technology, highly intelligent operation and use, excellent performance, simple and easy to use, and improves production efficiency. It is used to detect various metal impurities such as metal chips, broken needles, iron wires, lead, copper, aluminum, tin, stainless steel, etc., which are mixed or lost in raw materials or products. Excellent performance, simple operation, wide application industry. At the same time, the metal detector also adopts many new technologies and new methods such as phase adjustment, which effectively solves the common problems such as "product effect".If you are interested in our products,please contact us !
Type:SG-M400
Machine Grade:Food Grade
Detect method:Electromagnetic wave detection
Detecting width:150-1000mm customized according to requirements
Detecting height:80-500mm (or custom-made)
Detecting sensitivity:Fe 0.8mm-1.2mm, Non-Fe 1.5mm- 2mm, SUS 1.5mm- 2.5mm
Detecting adjustment:Intelligent adjustable
Belt Speed:25m /min (or specified)
Alarm mode:The buzzer alarm, the motor automatically stop
Power:AC220V,50/60Hz (Or Customized)
1. It can be used to detect iron, copper, aluminum, stainless steel mixed in non-metal products, and digitally display the iron and non-ferrous signals.
2. There is a belt deviation correction design, which is not easy to run for a long time.
3. Single or double coil detection can be used alone or in combination, with Chinese and English menus.
4. Using digital DSP programming design, LCD screen plus membrane switch touch control panel.
5. It can automatically set the learning to obtain the applicable detection performance, and can store and memorize 100 kinds of products.
6. With product effect automatic learning function, product effect filtering, stainless steel and non-ferrous metal copper test pieces can still be detected after small pieces of aluminum foil are packaged.
7. The whole machine frame adopts stainless steel material laser cutting welding and wire drawing process, food white PVC or PU belt, 304 stainless steel tube or non-metal drum optional.
8. It has anti-seismic ability, and it is not easy to cause false alarms when colliding and beating the machine.
Can be widely used in food, pharmaceutical, tobacco, chemical, textile, clothing, footwear, leather, toys, rubber, plastic, paper, cosmetics, hygiene products, cleaning products, electronics, wood, board, renewable resources and other industries and In the field.
Our products can be shipped by sea, air and land.
