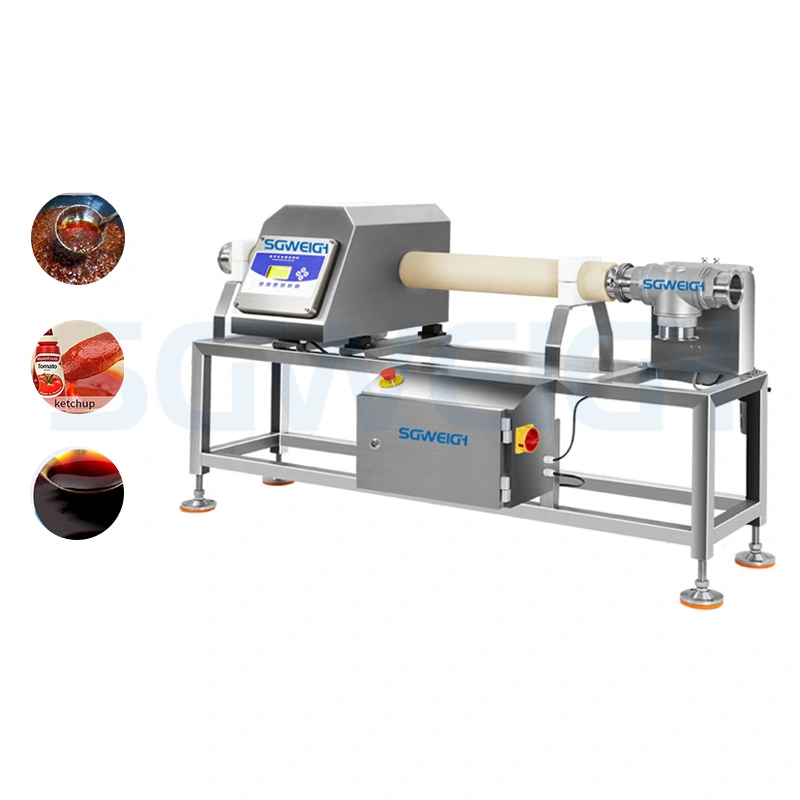

The Food Grade Stainless Steel Metal Detector Machine adopts a fully sealed detection method, which is mainly used for metal detection before packaging, and can detect powder, granules, paste, and liquid.Intelligent Control Sauce Pipe Type Metal Detector Machine can effectively identify various magnetic and non-magnetic small metals (such as aluminum, stainless steel, iron, etc.) in materials.

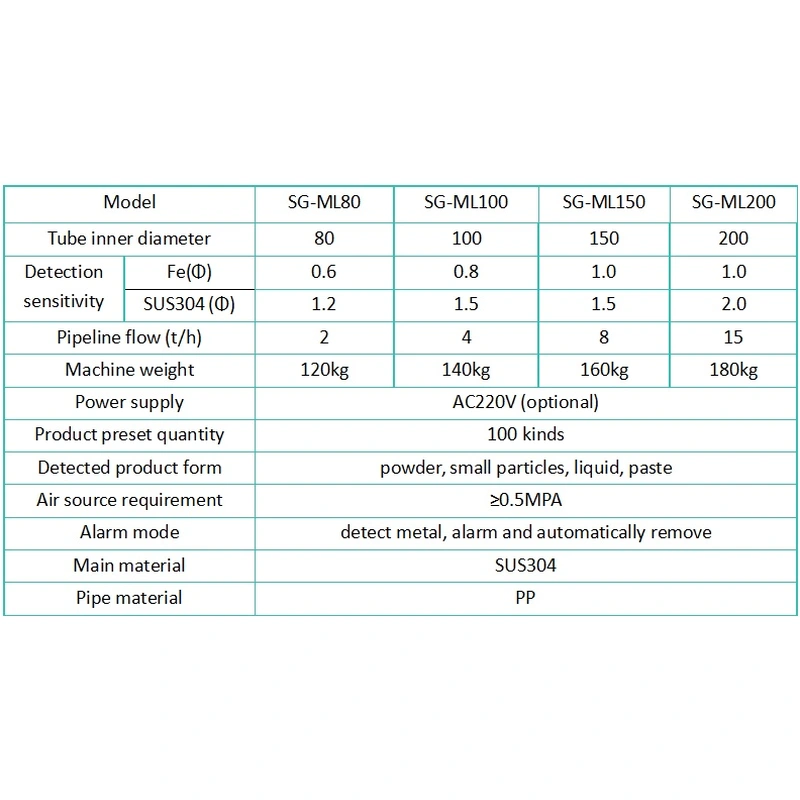

Model: SG-ML80/SG-ML100/SG-ML150/SG-ML200
Tube inner diameter: 80/100/150/200
Detection sensitivity: Fe (Φ)-0.6/0.8/1.0/1.0
SUS304 (Φ): 1.2/1.5/1.5/2.0
Pipeline flow (t/h): 2/4/8/15
Machine weight: 120kg/140kg/160kg/180kg
Power supply: AC220V (optional)
Product preset quantity: 100 kinds
Detected product form: powder, small particles, liquid, paste
Air source requirement: ≥0.5MPA
Alarm mode: detect metal, alarm and automatically remove
Main material: SUS304
Pipe material: PP
1. Our metal detectors are very easy to integrate into piping systems thanks to the quick lock fittings.
2. Thanks to their practical, robust and hygienic stainless steel design and high protection class, they are particularly easy to clean.
3. They have high sensitivity to all metals.
4. The control unit with touch display ensures extremely simple and intuitive operation.
5. With self-monitoring, self-calibration and temperature compensation functions.
1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
Packing Detail:
1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
★Pre-sales
project design,performance introduction,technical agreement,contract signing,production testing and we can customized production according to your requirements.
★In-sales
we will provide you with the latest process in the product assembly,packing and transportation.
★Installation
◎We provide videos and instruction manual to show the process of installation.
◎We provide training for installation for free in our factory.
◎We can send technician to buyer's factory to install the machine and provide training service.
★After-sales
◎ For our machines, we will provide some spare parts and easy broken parts free of charge when delivering.
◎We will have one year free warranty period. During warranty period, if there is any malfunction for the machine, we will try our best to solve the problem within 24 hours. If there are some spare parts needed to be replaced, we will provide the spare parts for free. Beyond warranty, we will charge the cost price for spare parts.
