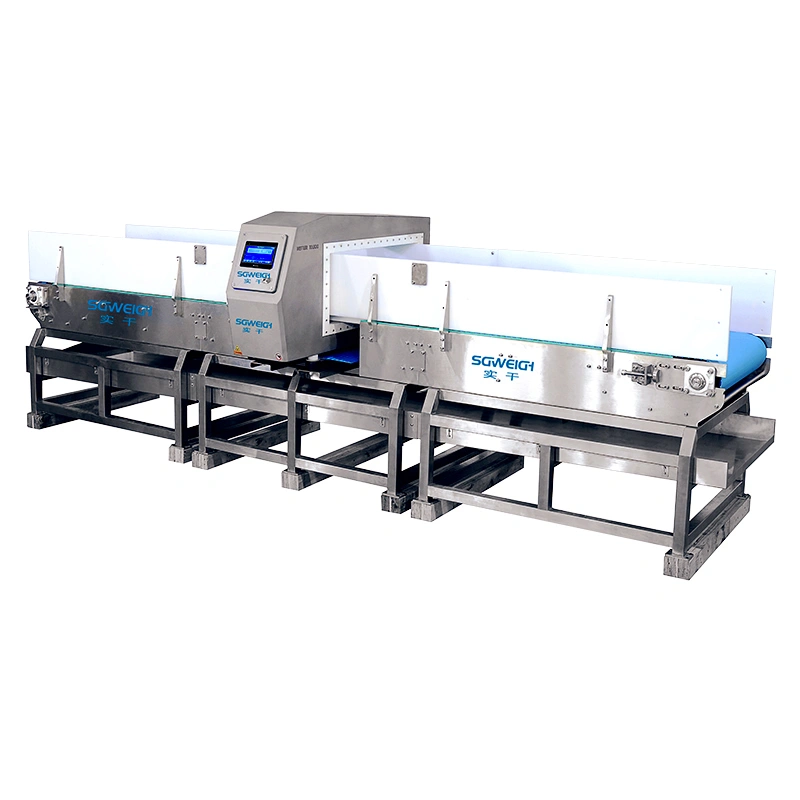

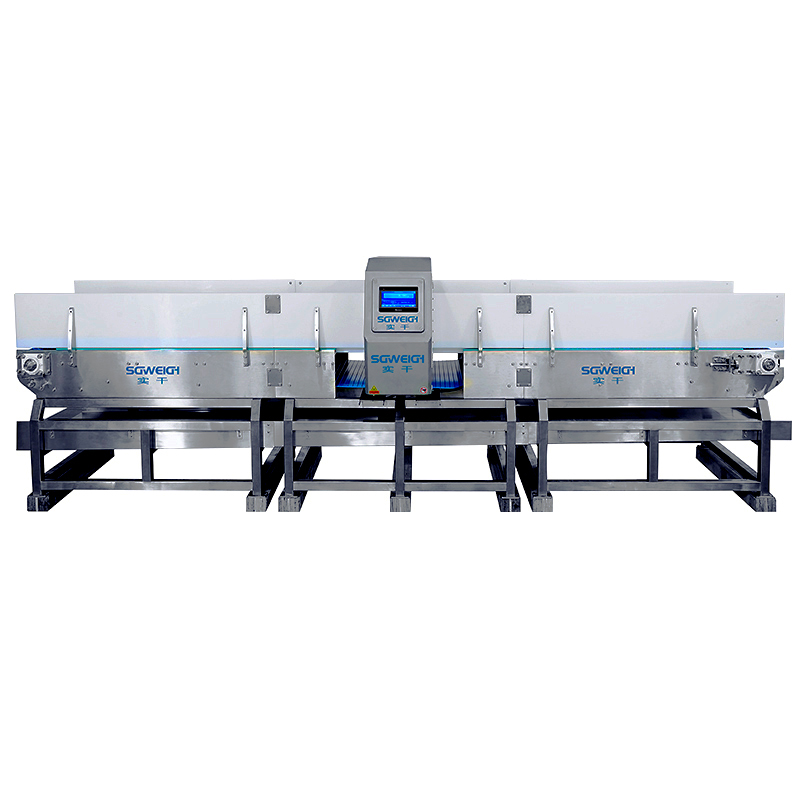

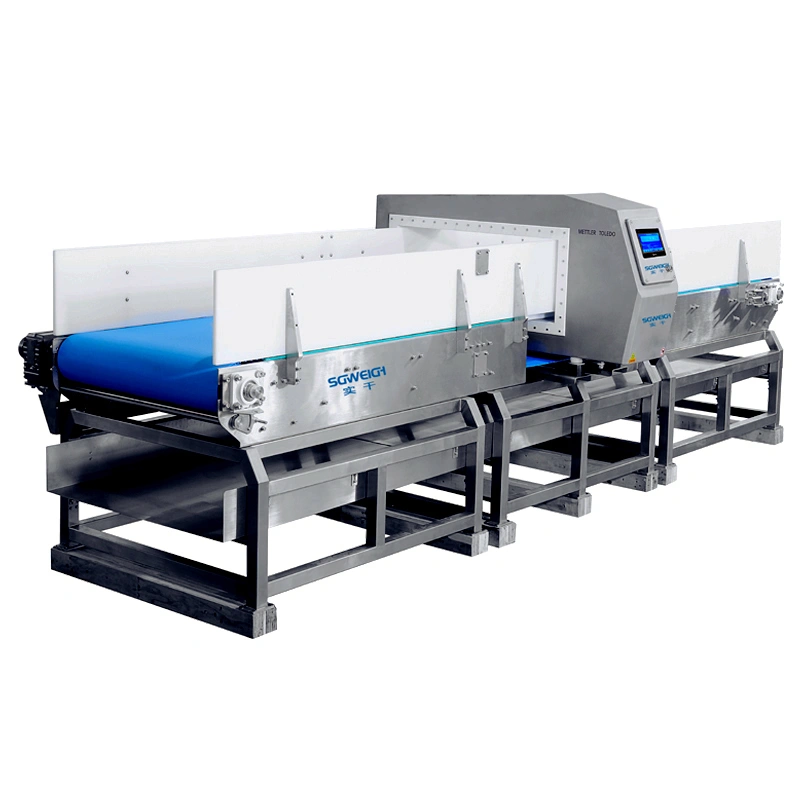

The Heavy Object Metal Detector is a highly sensitive metal foreign body detection device designed for large, heavy products.Conveyor Tunnel Metal Detector utilizes a high-strength, load-bearing conveyor structure and a wide inspection channel, making it suitable for metal detection of large packaging bags, cartons, barrels, and boxed products.
Type:SG-M400
Detection sensitivity: in empty state
H-100mm: Fe≥Φ0.8mm, Non-Fe≥Φ1.5mm, SUS≥Φ1.5mm
H-120mm: Fe≥Φ0.8mm, Non-Fe≥Φ1.5mm, SUS≥Φ2.0mm
H-150mm: Fe≥Φ1.0mm, Non-Fe≥Φ1.5mm, SUS≥Φ2.0mm
H-200mm: Fe≥Φ1.2mm, Non-Fe≥Φ2.0mm, SUS≥Φ2.5mm
Effective detection hole width: 150-1000mm customized according to requirements
Effective detection hole height: 80-500mm customized according to requirements
Maximum speed of conveyor belt: 25m/min
Conveyor belt material: food grade PU belt
Protection class: IP65
Display and operation mode: LED fast key input
Machine weight: about 120kg
Power requirements: AC220V 50HZ
1. Highly Sensitive Detection
Can detect foreign objects such as iron, stainless steel, and non-ferrous metals.
Advanced digital signal processing technology ensures detection accuracy and stability.
2. Sturdy and Durable Construction
The frame is constructed of welded stainless steel, offering excellent vibration and interference resistance.
Suitable for long-term, continuous operation.
3. Heavy-Duty Conveyor System
Equipped with a high-load-bearing belt conveyor, it can handle products weighing 1-50 kg.
Adjustable conveyor speed to match the cycle time of automated production lines.

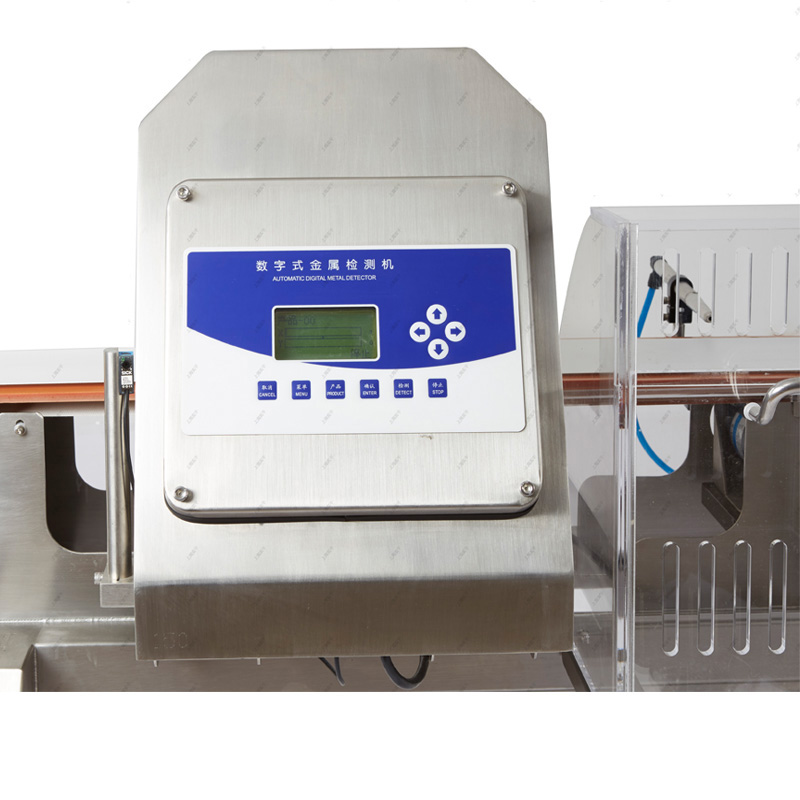

4. Intelligent Human-Machine Interface
User-friendly touchscreen operation allows for easy parameter settings.
Automatically records inspection data and can be connected to the factory's MES system or printer.
5. Multiple Rejection Methods
Configurable rejection methods include pusher, lift gate, air blower, and alarm shutdown, depending on product type.

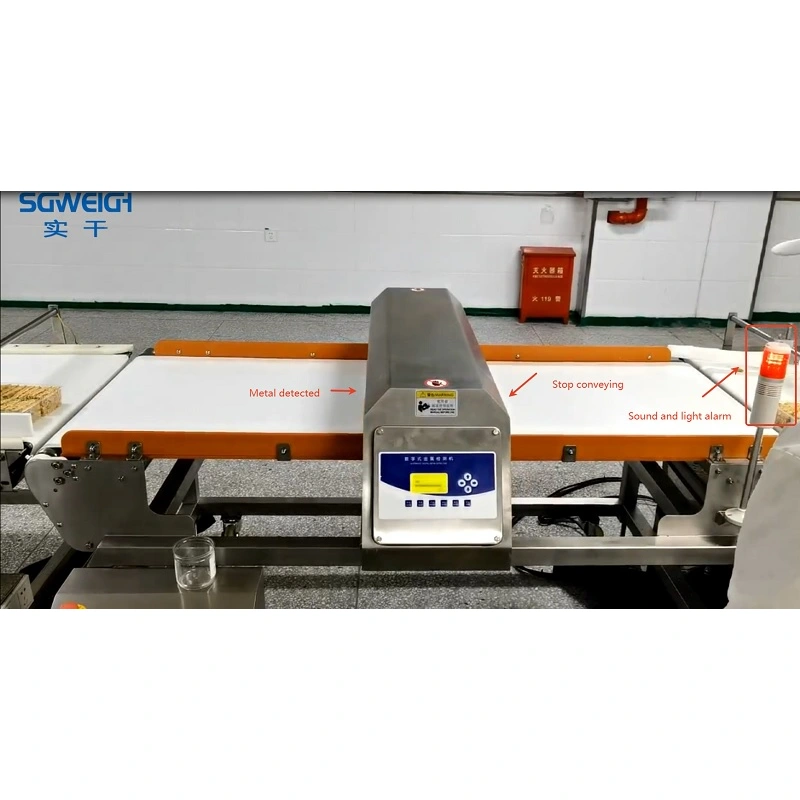

An alarm shutdown function is available for overweight or fragile products to prevent secondary damage.
Large-packaged food (e.g., 25kg flour, 10kg frozen meat, boxes of beverages)
Chemical and raw material industries (powders, resins, plastic granules)
Daily chemical industry (boxes of soap, laundry detergent)
Agricultural products
Our machines is fully tested and calibrated before delivery.

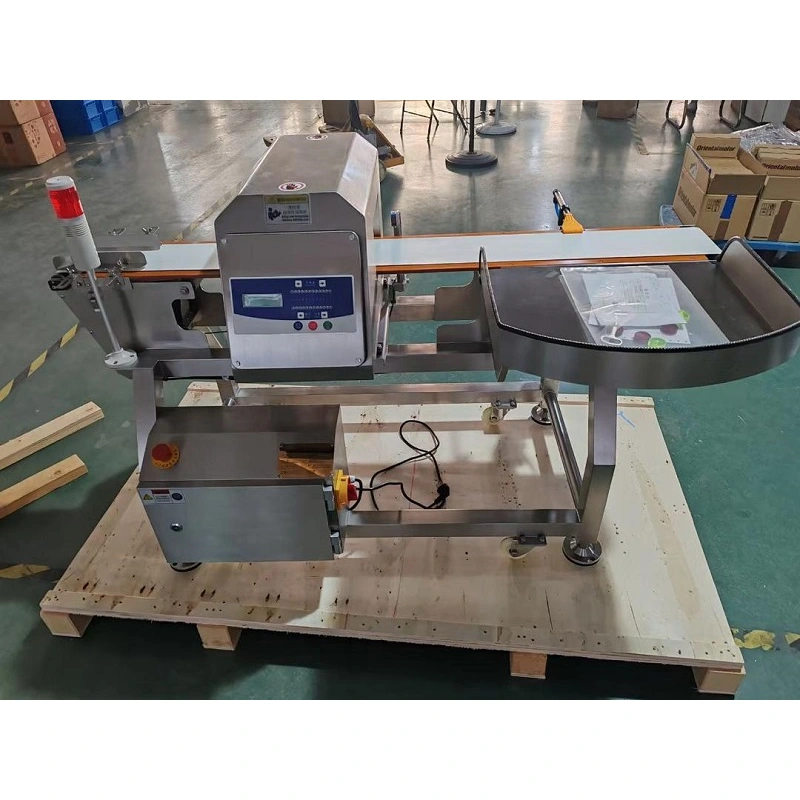

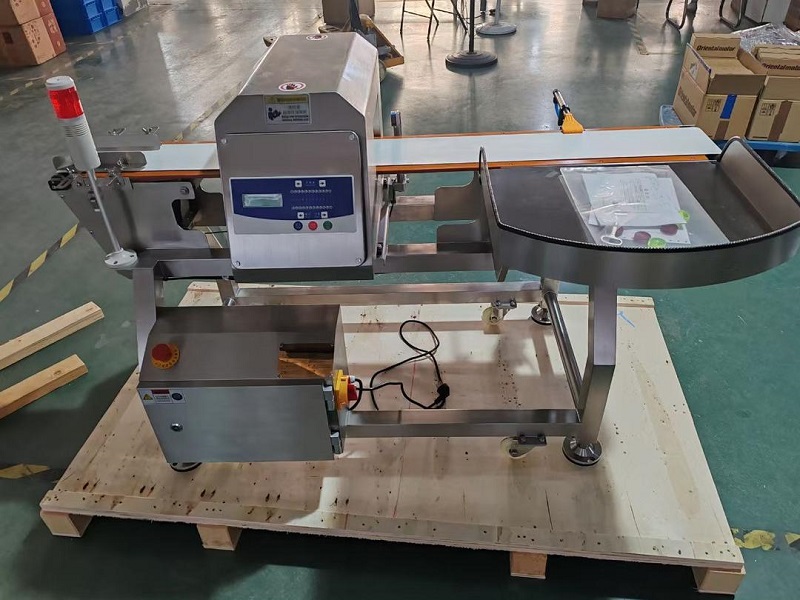

It is packed in a strong wooden case with internal shockproof protection.
Various shipping options are available — by sea, air, or land — ensuring safe and on-time delivery by professional logistics partners.
