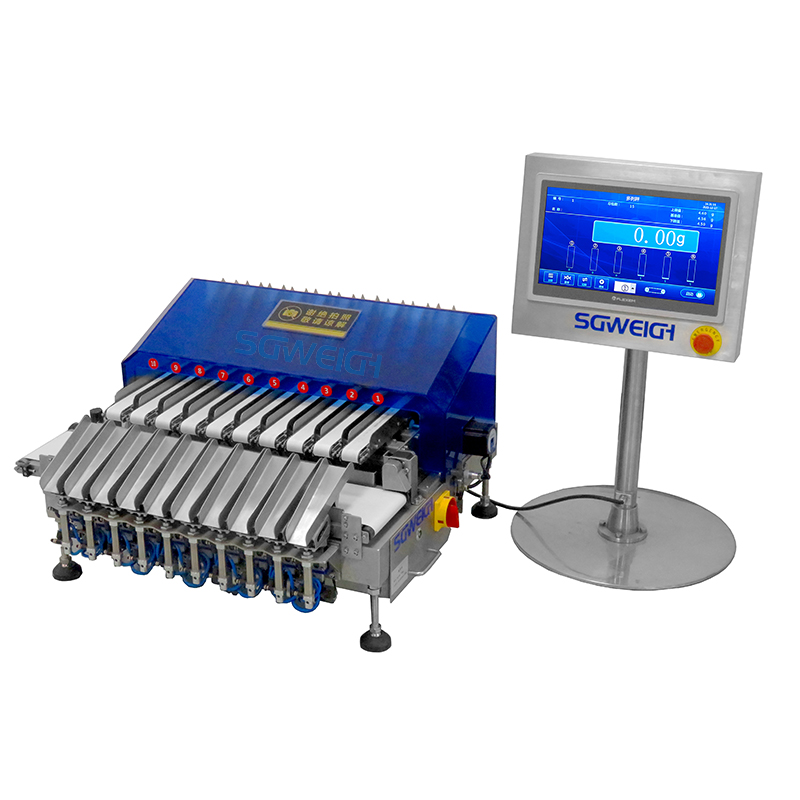

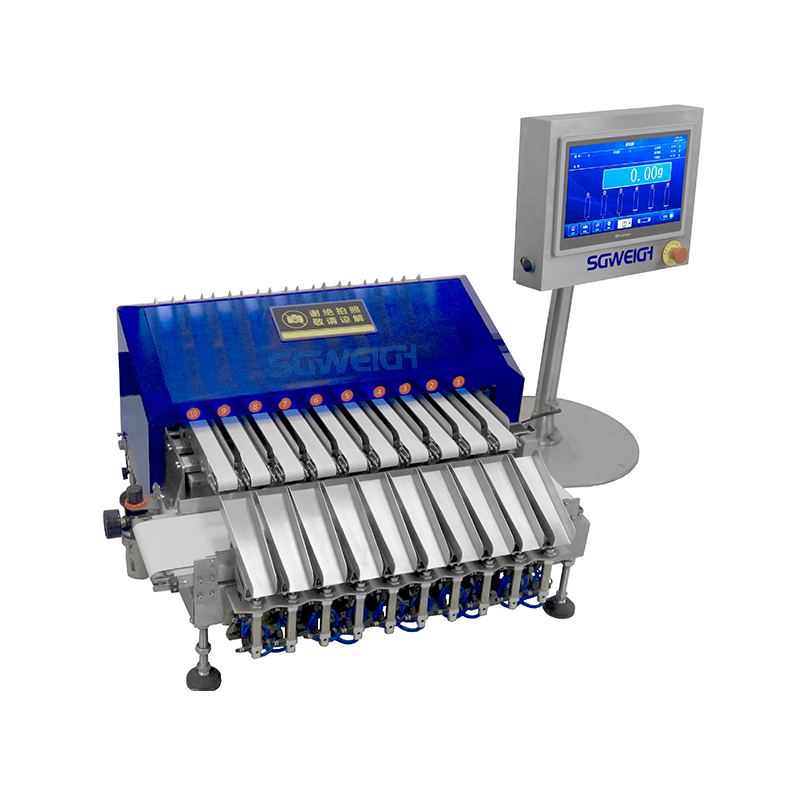

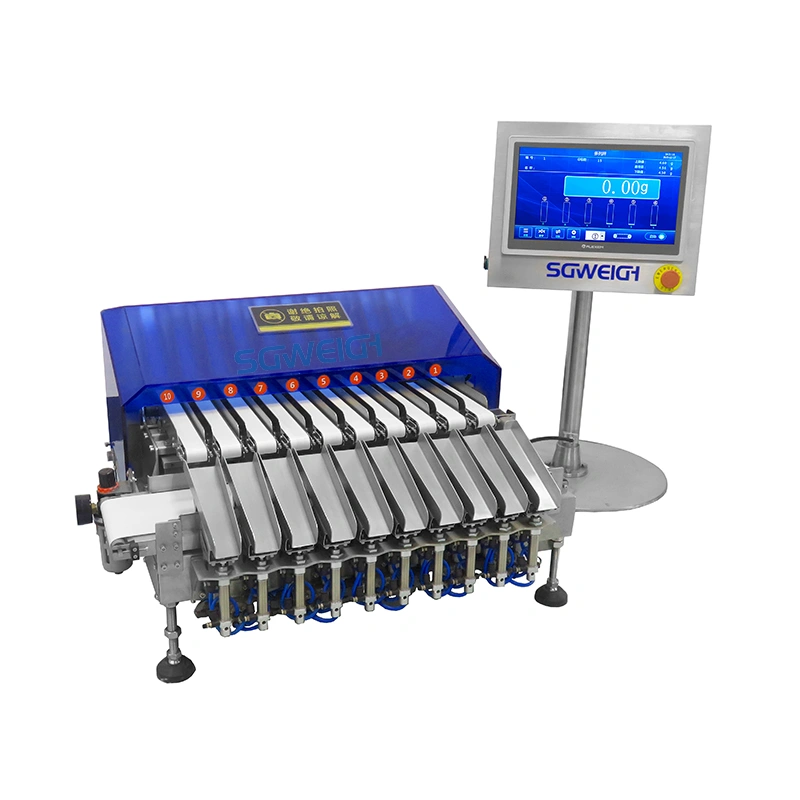

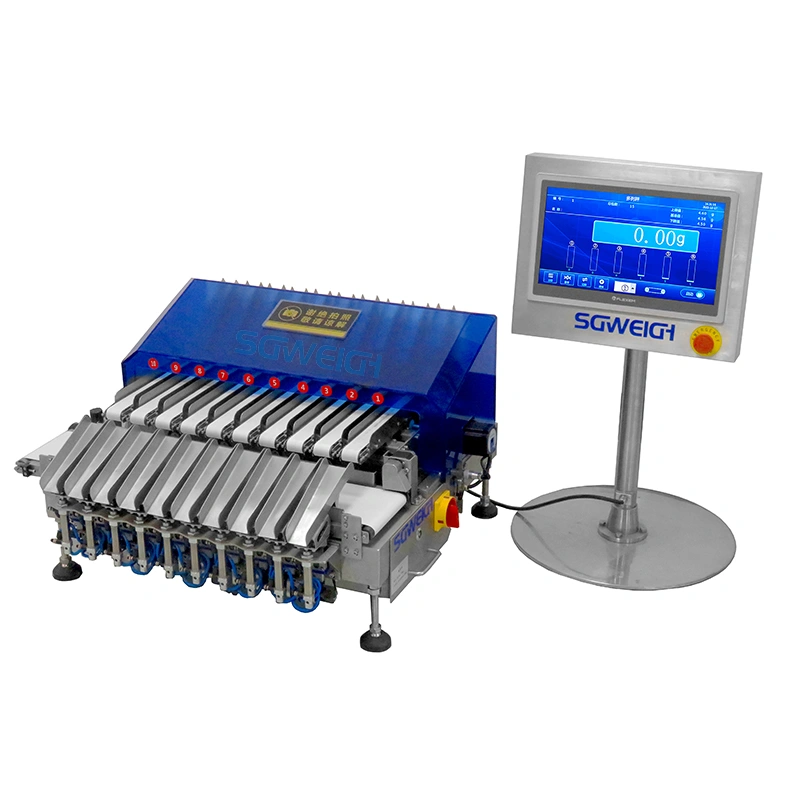

Multi-Lane Stick Granule Coffee Checkweigher is a high-speed, automated weighing system designed to ensure the accuracy of stick-shaped sachets (such as sugar, salt, coffee, or pharmaceutical powders) in production lines. 2-10 Lines Weight Checkers are ideal for nearly any production line application that requires high-speed,accurate weighing of small packaged products.
Type:SG-10X
Weighing scope:2-300g
Restrictions of product:L:180 W:40 H:2-20(mm)
Accuracy:±0.01g (Depends on products)
Division scale:0.01g
Belt width:30mm
Highest speed:70pcs/min(one lane)
Weight of machine:about 200Kg
Powder supply：AC220V 50HZ
Power:about 300W
Main material:SUS304(Stainless Steel)

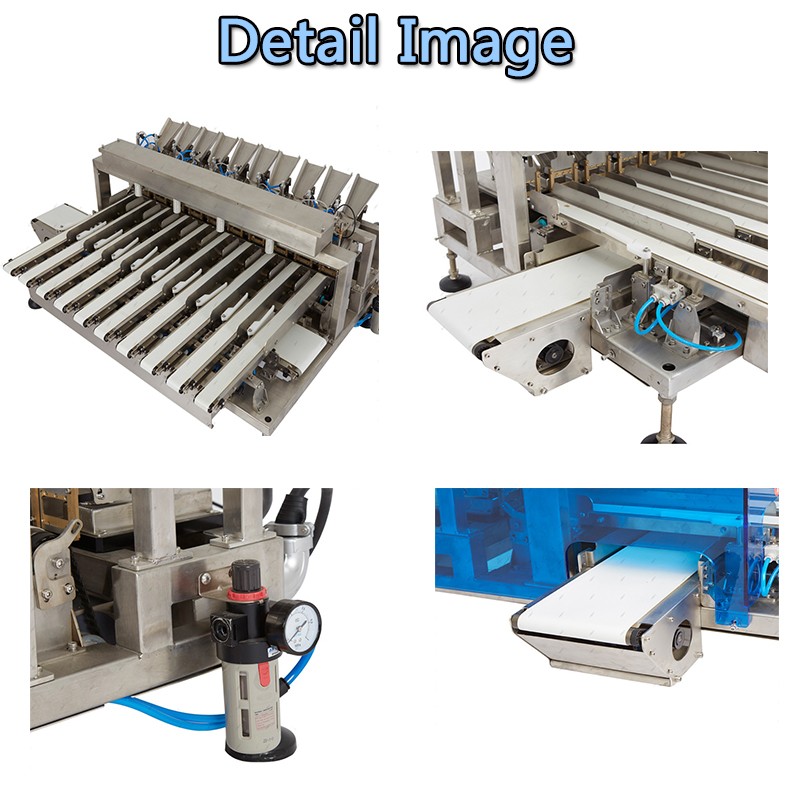

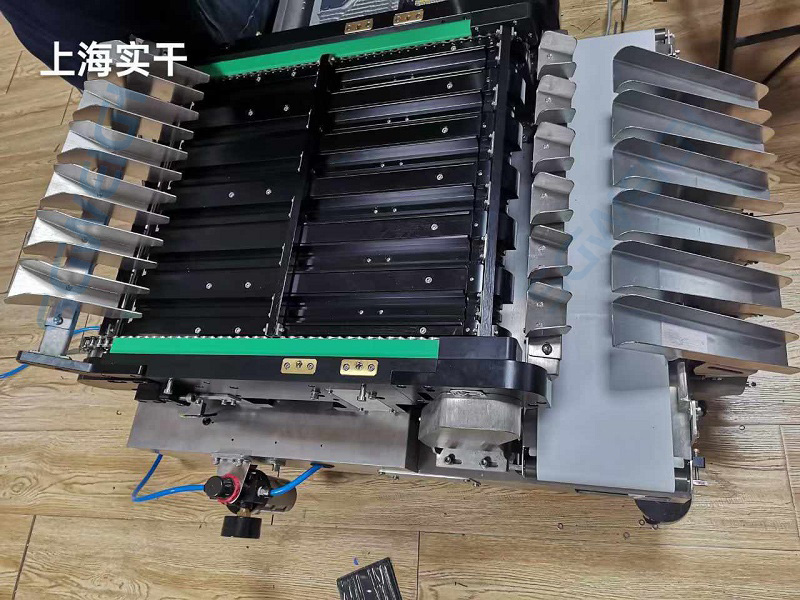

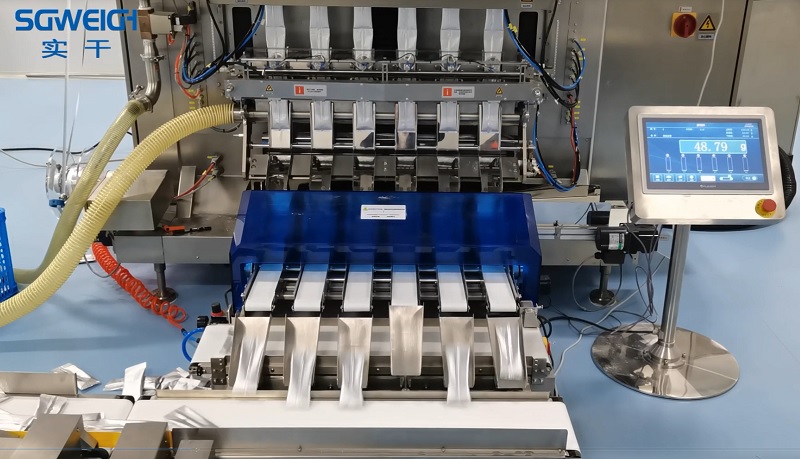

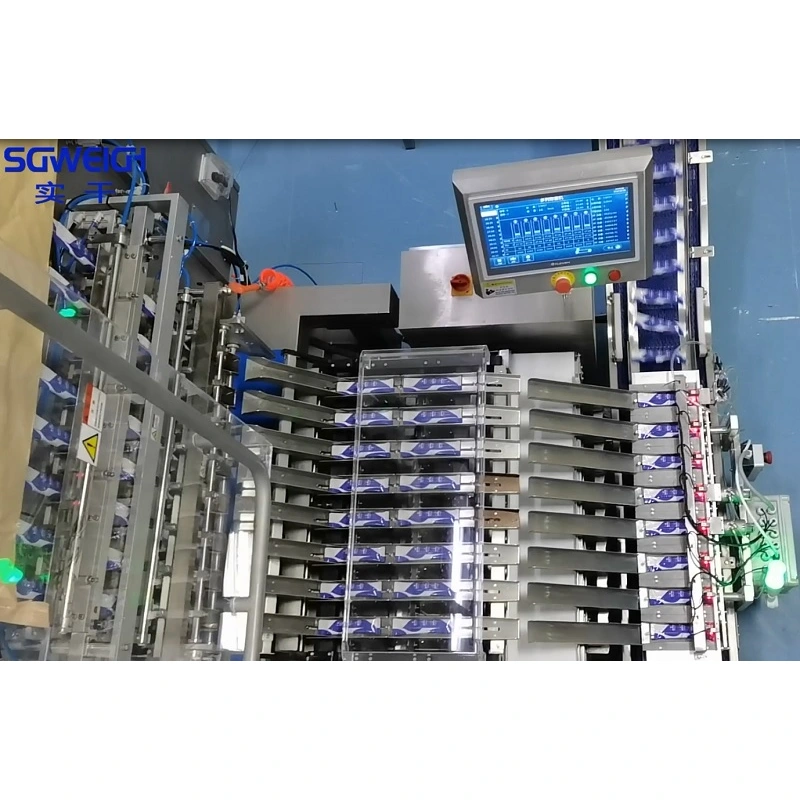

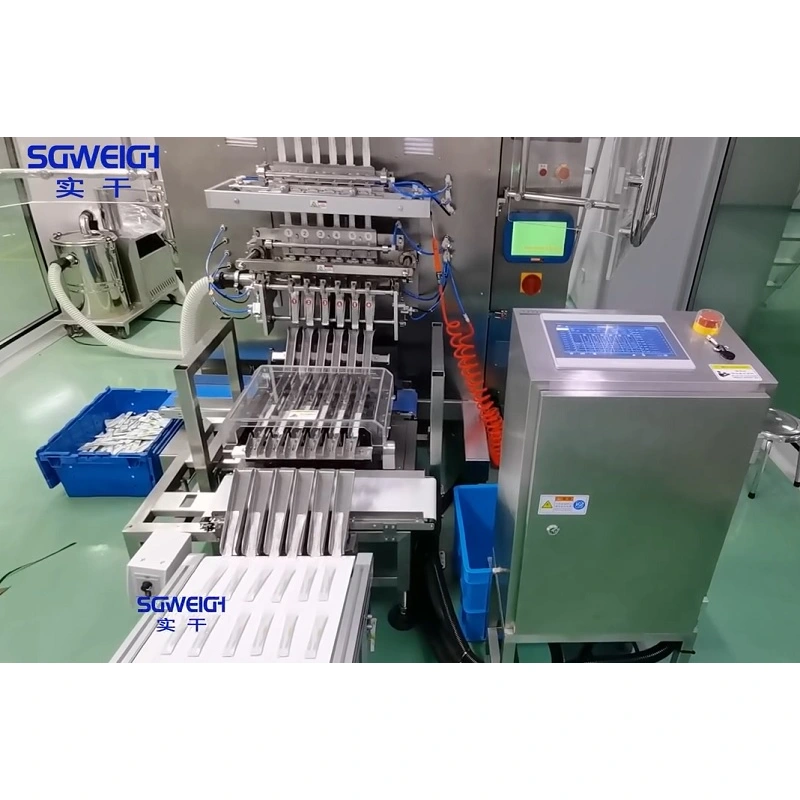

Multi-channel passing products to improve production efficiency
(the number of channels can be customized)
1. N-lane slide patent checkweigher
2. Highest checkweighing speed:70 cuts/min (per lane)
3. Highest accuracy: 0.01g
4. Each lane can separately reject unqualified products.
5. Checkweighing data feedbacks to packing machine to realize real time adjustment of each lane.
6. The number of continuous unqualified products of each channel can be modified.
7. Statistic data export interface: USB

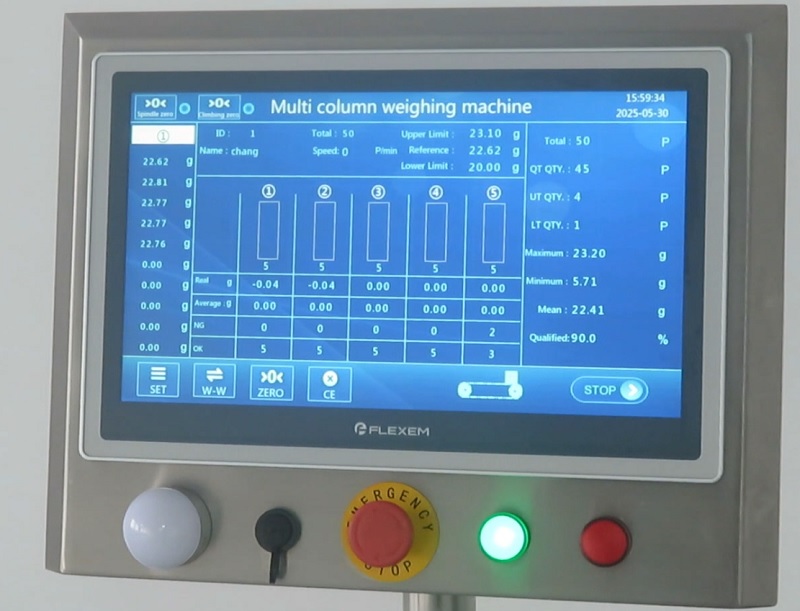

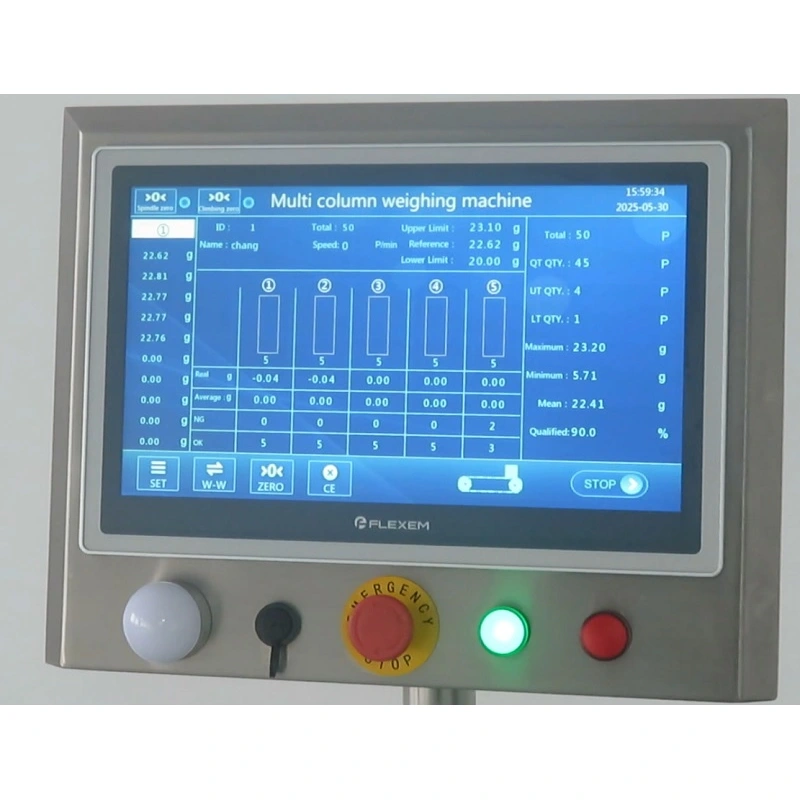

8. Statistic data of each channel: real time results display, trend graph display, histogram display.
Inner use the plastic wrapping ,out package will use stronger wooden cases.
Our standard package process:
1) Dust & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5) Packing Modules into Plywood Cases
6) Mark Shipping Mark In The Cases
If any special requirements, we will pack it as requested.
