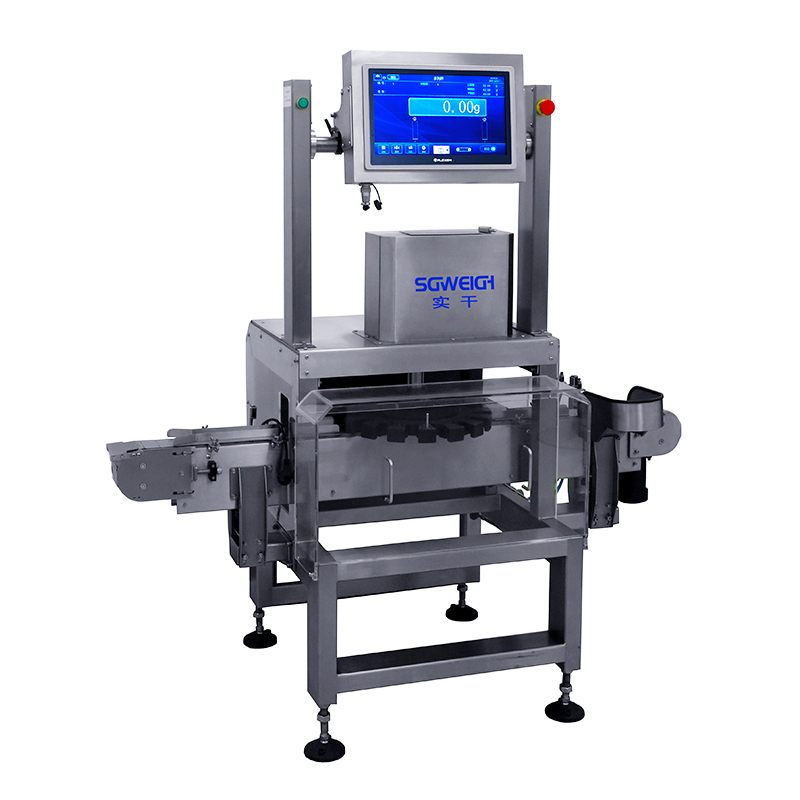

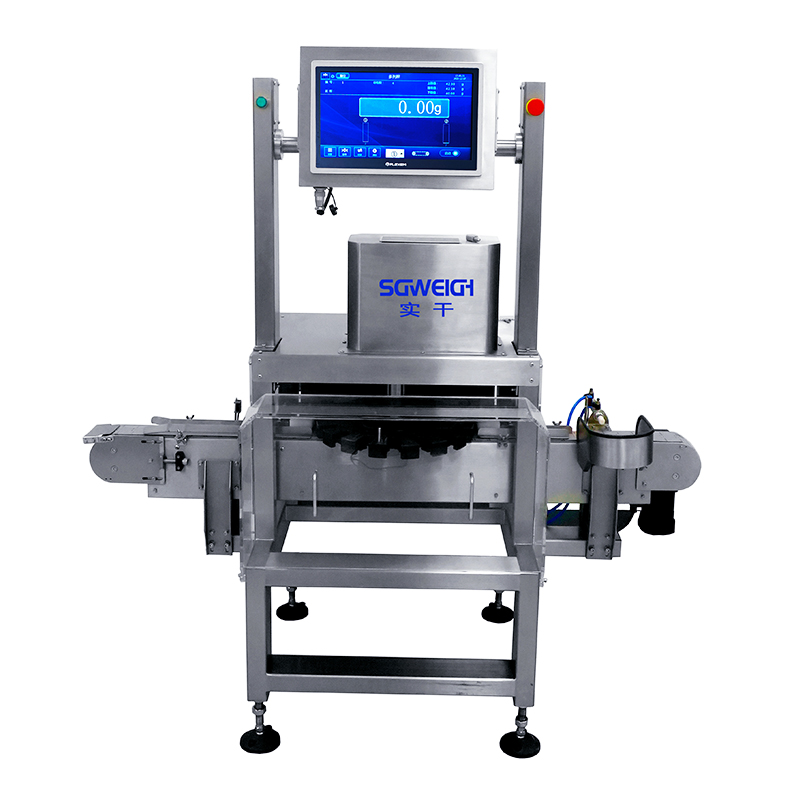

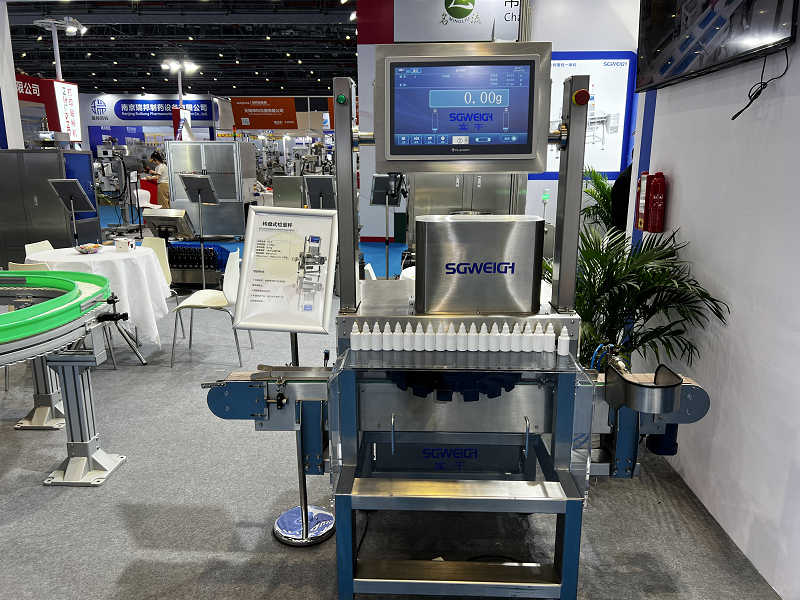

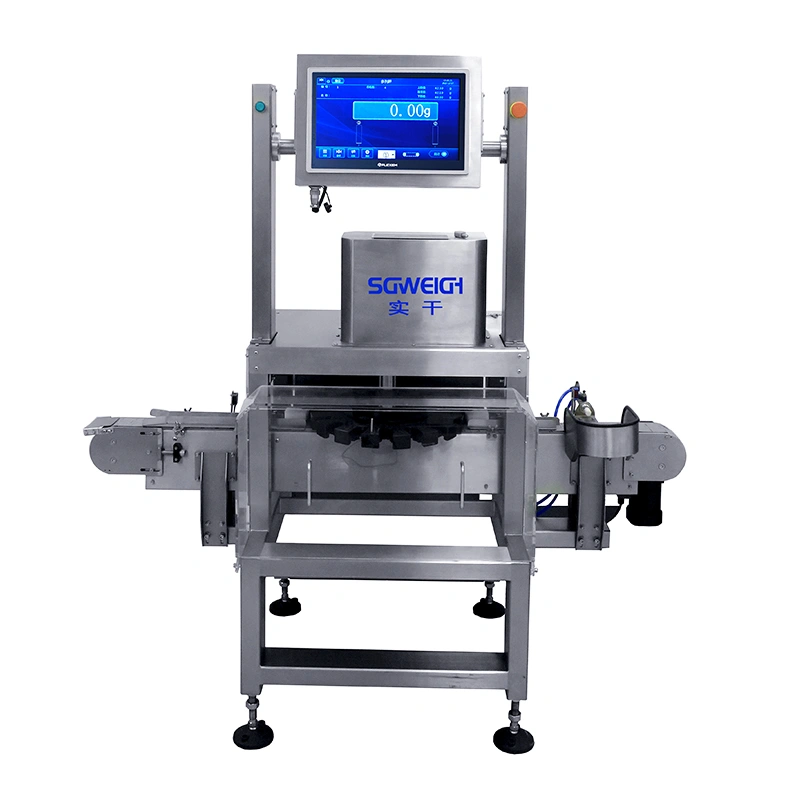

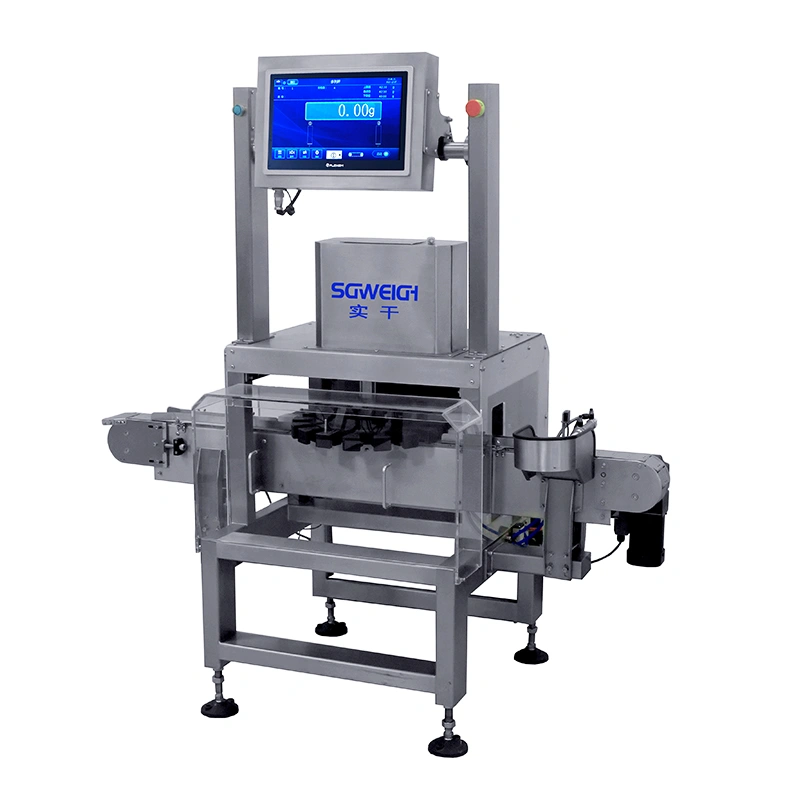

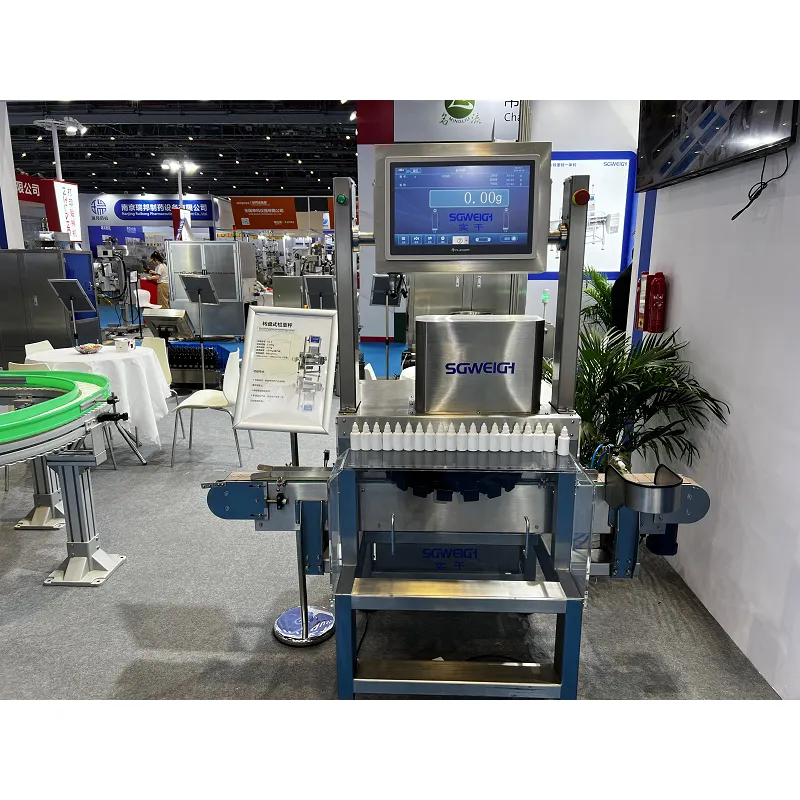

The High-Accuracy Pharma Eye Drop Containers Rotary Checkweigher is a device used for dynamic weighing of bottled products on automated production lines, and is widely used in food, beverage, pharmaceutical, cosmetics and other industries.Rotary Checkweigher for Bottles/Vials can quickly detect whether the weight of each bottle of product meets the preset standard, and automatically remove unqualified products to ensure product quality and packaging consistency.
Model: SG-Z (single/dual channel)
Weighing range: 5-300g
Minimum scale: 0.01g
Sorting accuracy: ±0.02 grams (depending on the product)
Sorting speed: maximum 60 pieces/minute (single channel)
Conveying speed:20-50m/min
Operation mode: touch operation
Conveying direction: Facing the touch screen from left to right
Rejection method: air blowing removal/push plate removal
Belt height from the ground: 750±50mm (can be customized according to customer requirements)
Machine structure: stainless steel (SUS304)
Power supply: 220V 50-60HZ
Power: about 1500W

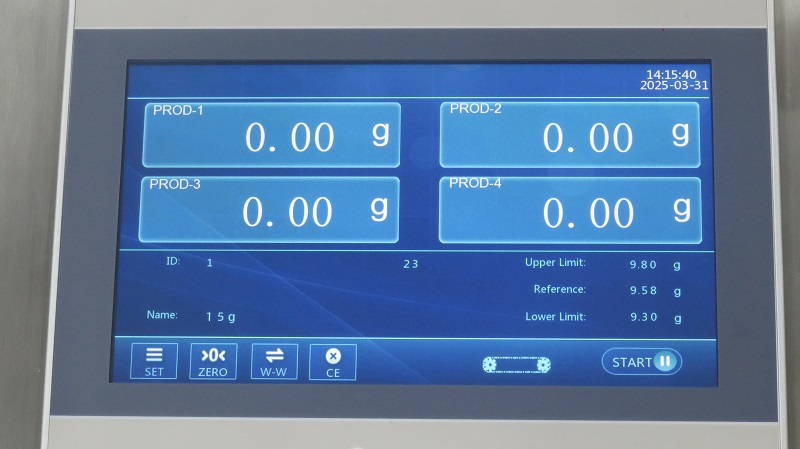

◎Large screen display, clear viewing, easy operation.
◎Default Chinese and English operation interface.

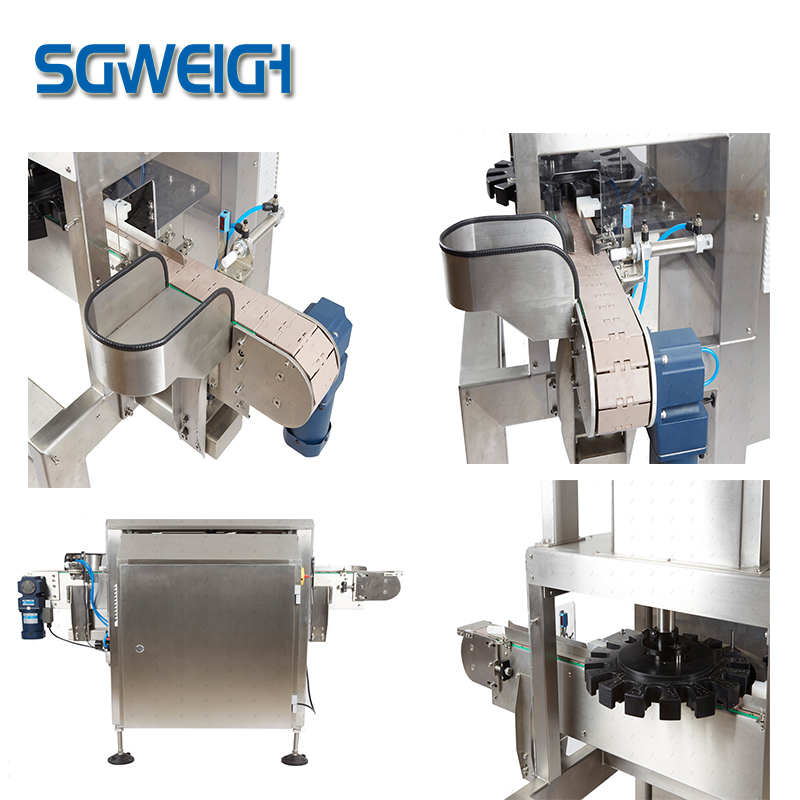

◎Photoelectric positioning, the turntable accurately delivers the product to the weighing sensor.
◎The chain conveyor is strong and durable.
◎Three-level operation authority management, support for self-set passwords.
◎100 product formulas are preset and stored.
◎Unqualified products are automatically rejected.

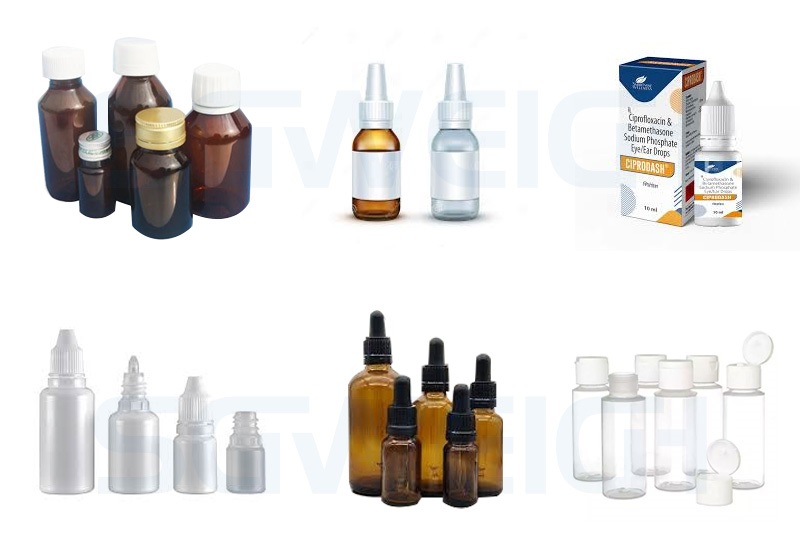

Checkweigher for small to medium sized cylindrical packages such as bottles, jars and cans.
Inner use the plastic wrapping ,out package will use stronger wooden cases.
Our standard package process:
1) Dust & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5) Packing Modules into Plywood Cases
6) Mark Shipping Mark In The Cases
If any special requirements, we will pack it as requested.
