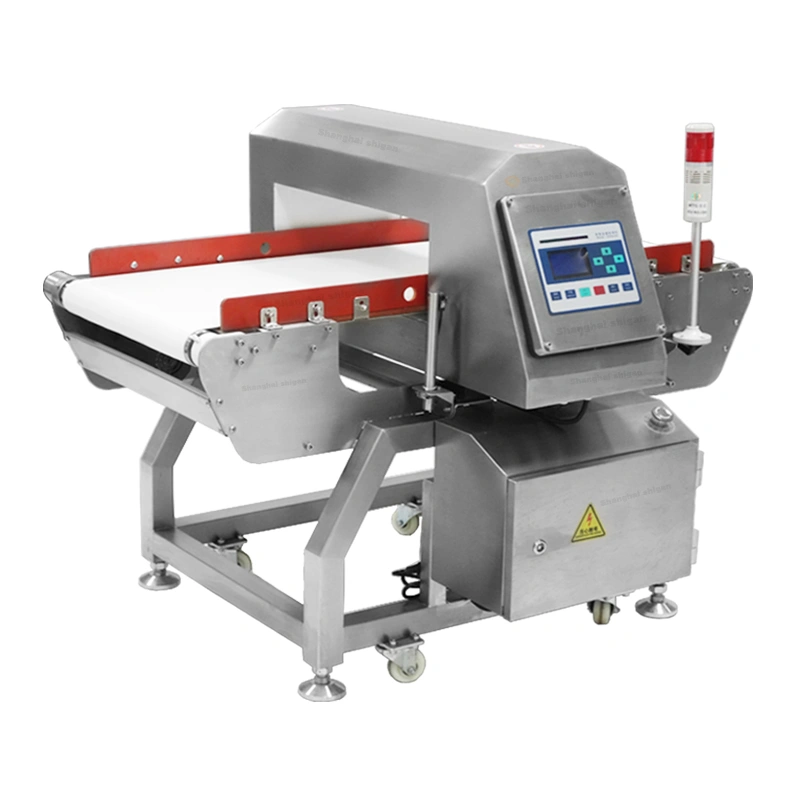

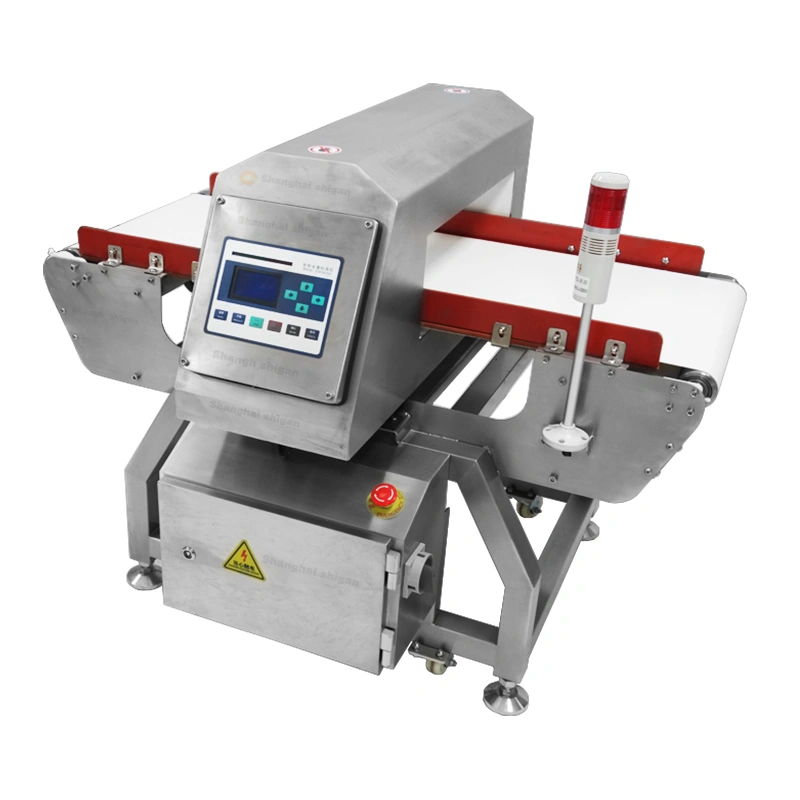

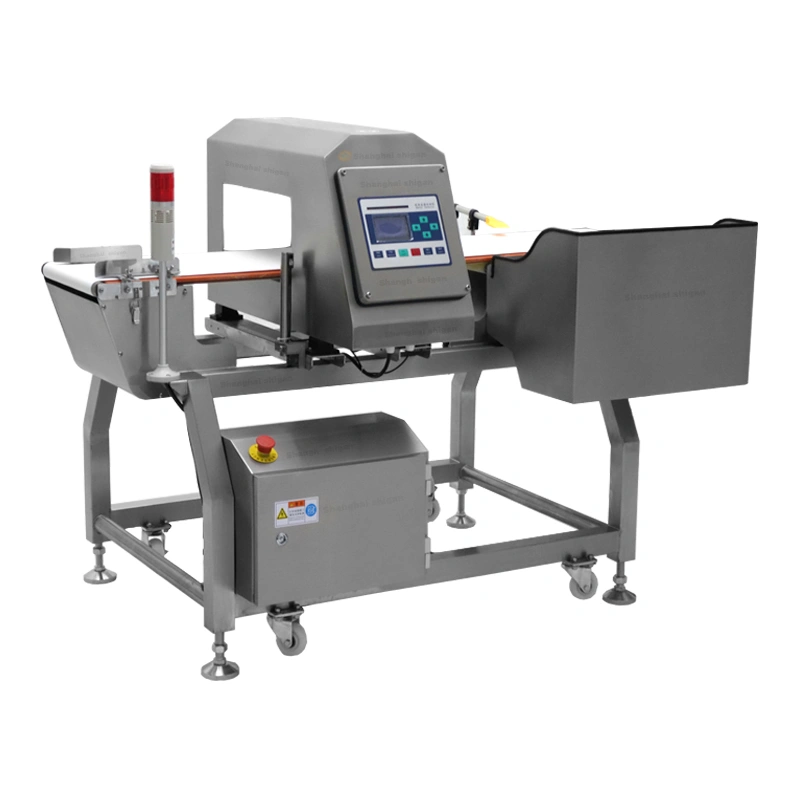

High Precision Conveyor Belt Industrial Metal Detectors are widely used in various industries to detect and remove metal contaminants from products, ensuring safety and quality control.They are commonly found in food, pharmaceuticals, textiles, plastics, and packaging industries.
Type:SG-M400
Detection sensitivity: in empty state
H-100mm: Fe≥Φ0.8mm, Non-Fe≥Φ1.5mm, SUS≥Φ1.5mm
H-120mm: Fe≥Φ0.8mm, Non-Fe≥Φ1.5mm, SUS≥Φ2.0mm
H-150mm: Fe≥Φ1.0mm, Non-Fe≥Φ1.5mm, SUS≥Φ2.0mm
H-200mm: Fe≥Φ1.2mm, Non-Fe≥Φ2.0mm, SUS≥Φ2.5mm
Effective detection hole width: 150-1000mm customized according to requirements
Effective detection hole height: 80-500mm customized according to requirements
Maximum speed of conveyor belt: 25m/min
Conveyor belt material: food grade PU belt
Protection class: IP65
Display and operation mode: LED falt key input
Machine weight: about 120kg
Power requirements: AC220V 50HZ
Power: 200W
1. The metal detector adopts a highly humanized and intelligent design, with a bottom-level self-learning function.
2. The metal detector can store 100 product parameters. Once the product parameters are set, there is no need to adjust them again.
3. The metal detector adopts modular design and installation, which is conducive to disassembly and assembly, convenient maintenance, and low maintenance cost.
4. It can be customized according to the size, weight, and characteristics of the detected product to achieve the best detection sensitivity.
5. The rejection system and control system can be customized according to the characteristics of the production line to improve production efficiency.
Q1. Are you a manufacturer or a trader?
A: Shanghai Shigan Industrial Co., Ltd. is a manufacturer located in Shanghai,China. We have our own product design team.
Q2. How many types of checkweighers do you have?
A：Our company has a variety of models of checkweighers, suitable for most products and can be applied to almost all industries. Our company's checkweighers can be customized according to demand.We have standard checkweighers, bottle checkweighers, multi-lane checkweighers,tablet capsule checkweighers, box checkweighers,heavy object checkweighers and so on.
Q3. What factors should be considered when choosing a checkweigher?
What is the product you want to weigh?
How many grams/kg of the product?
What is the size of the product?
What are the speed requirements?
Accuracy requirements?
Based on the above information, our sales will recommend the most suitable checkweigher for you.
Q4. What kind of shipping methods can you provide?
A: Sea, air and international express. We will send photos and videos of the machine to customers before delivery to check the operation of the machine.
Q5. Do you accept customer logos and customizations?
A: We accept all kinds of customization and logos for all products.
Q6. How is the product packaging?Is it easy to be damaged during transportation?
A: No. We use wooden boxes, which are very safe.
