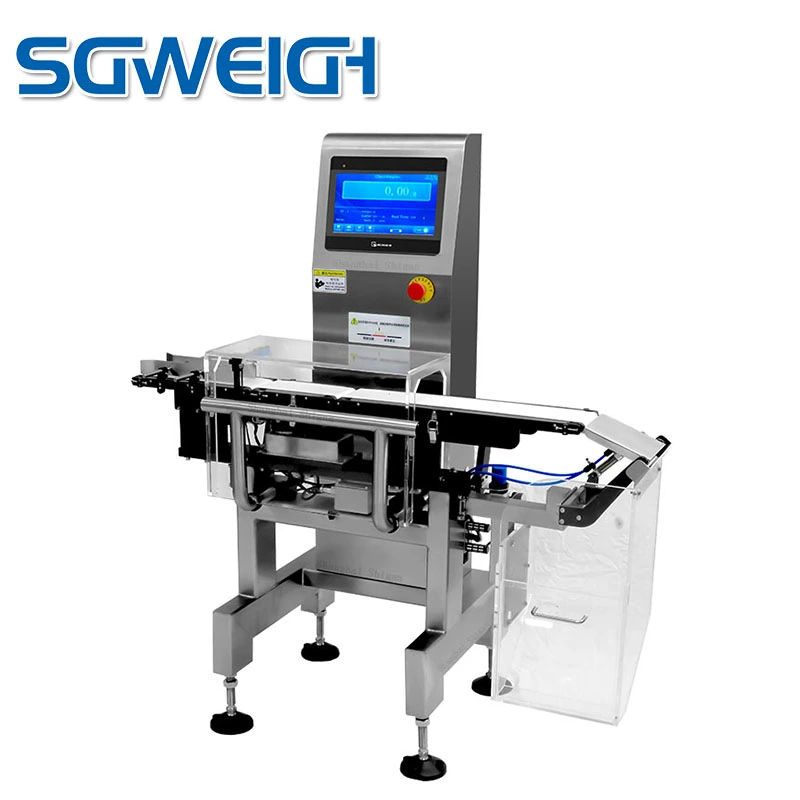

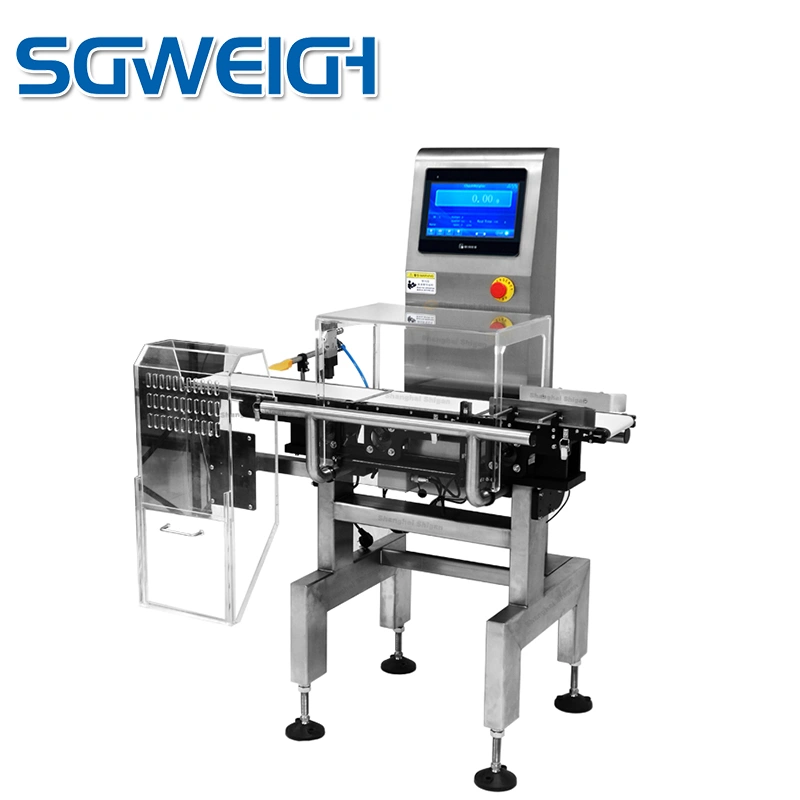

High-Speed belt Conveyor Online Intelligent Industrial Universal Check Weigher is divided into three sections,namely the speed matching section, the weighing section and the rejection section.The inspected products flow into the speed matching section of the automatic checkweigher through the conveyor belt,and are sorted to increase the distance between products and ensure that each product enters the weighing section.Automatically weigh the weight of the detected product and compare it with the standard weight.The normal range of products flows directly through the equipment rejection section,and the heavier and lighter products will be automatically rejected.Welcome to consult for quotation information !
·
Type:SG-100
Weighing:Range 2-300g
Limited of product:L:100 W:100 H:2-150mm
Accuracy:±0.05g Depend on products
Division Scale:0.01g
Belt Speed:0-90m/min
Max Speed:260 pcs/min
Belt Width:100mm
Machine Weight:70kg
Power Supply:AC 110/220V ±10% 50HZ
Power:100W
Main Material:SU304 stainless steel
For reference only, please consult for details!
Contact us to recommend a product that is suitable for you !
1. Super high adaptability to equipment environment.
2. Very friendly operation interface.
3. Parameters can be modified at any time.
4. Up to 100 product presets to meet customers’ complex needs.
5. The touch screen operating system is easy to use and comes with three-level user password protection.
6. Fast dynamic weighing algorithm software technology enables the entire system to maintain high detection accuracy even during high-speed operation.
1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
Packing Detail:
1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
