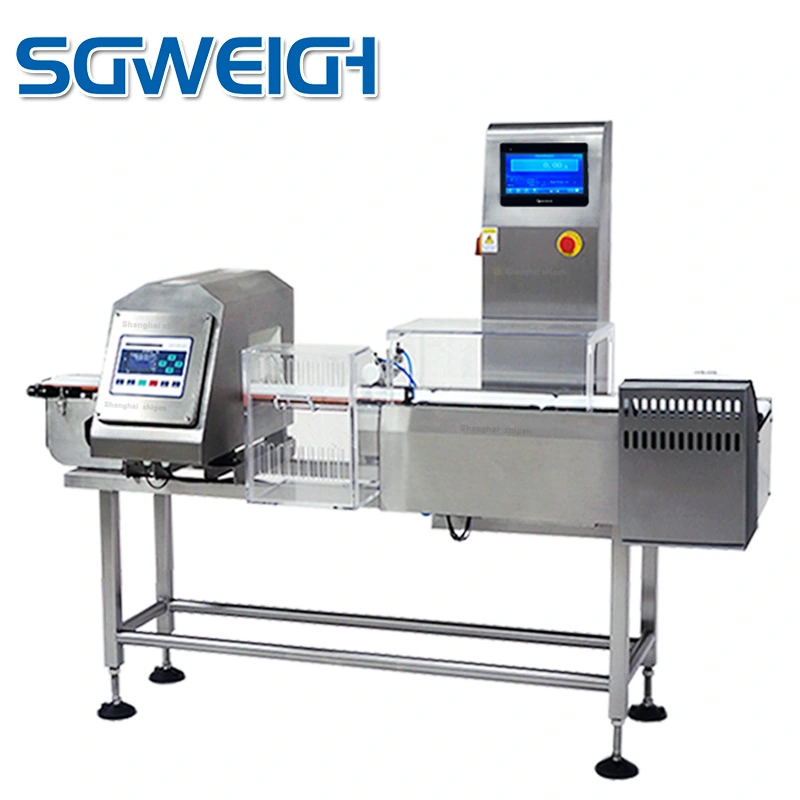

Inline Combination High Accuracy Checkweigher Metal Detector System for Food Packaging Industry
Inline Combination High Accuracy Checkweigher Metal Detector System for Food Packaging Industry
Inline Combination High Accuracy Checkweigher Metal Detector System for Food Packaging Industry
  • Inline Combination High Accuracy Checkweigher Metal Detector System for Food Packaging Industry
  • Inline Combination High Accuracy Checkweigher Metal Detector System for Food Packaging Industry
  • Inline Combination High Accuracy Checkweigher Metal Detector System for Food Packaging Industry

Inline Combination High Accuracy Checkweigher Metal Detector System for Food Packaging Industry

Inline Combination High Accuracy Checkweigher Metal Detector System for Food Packaging Industry is usually used in food, chemical, pharmaceutical and other industries to ensure product quality and safety.
tag:

Description

Product Introduction

Inline Combination High Accuracy Checkweigher Metal Detector System for Food Packaging Industry is a device used in automated production lines. It can perform two operations of weighing and metal detection at the same time. This kind of equipment is usually used in food, chemical, pharmaceutical and other industries to ensure product quality and safety.Welcome to consult for quotation information !


Inline Combination High Accuracy Checkweigher Metal Detector System for Food Packaging Industry


Technical Parameters

Model: SG-JS150

Measuring method: electromagnetic induction / digital load cell

Size: 330×150mm

Accuracy: FE0.8mm SUS2.0mm

Selection accuracy: ±0.1g

Weighing range: 5 grams - 900 grams

Passing height: 110m

Pass width: 280mm

Packaging length: ≤300mm

Display graduation value: 0.1g 0.2g 0.5g 1g

Number of sorting segments: 3 segments

Sorting ability: 60 times/min

Conveyor belt speed: 10-45 m/min

Ground height: 735mm—800mm

Working temperature: 0-40℃

Weight: about 160kg

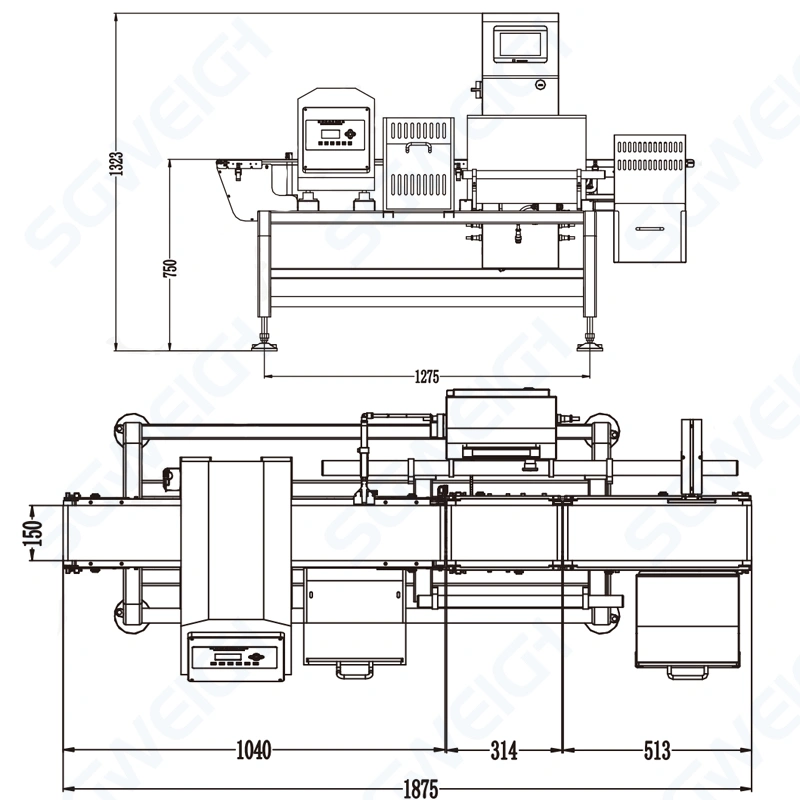

Dimensions: 1900mm×700mm×1120mm (L×W×H)

For reference only, please consult for details !

Contact us to recommend a product that is suitable for you !


Inline Combination High Accuracy Checkweigher Metal Detector System for Food Packaging Industry


Main Features

1.It has an ingenious structure, takes up less space, is easy to connect to the production line, has high detection sensitivity and is easy to operate.It can save production line space to the maximum extent and achieve more quality control.

2.Advanced technology, applying the latest multi-frequency detection technology,automatic material effect elimination technology, automatic balancing technology, and adaptive adjustment technology, bringing the equipment the simplest operation, the best environmental suitability and stability in the industry.

3.All stainless steel shock-absorbing structure design and manufacture,to ensure long-term stability and service life.

4.Can record detection parameters suitable for 100 different products, avoiding detection errors due to manual differences and avoiding downtime for product replacement.

5.The low-power design and fully sealed design ensure the protection effect with the body structure, reaching the IP65 protection level and a service life of more than 15 years.



Inline Combination High Accuracy Checkweigher Metal Detector System for Food Packaging Industry


Application


plastics industry.jpg



pharmaceutical industry.jpg


Our Company


about us.jpg


Our Customers




Our Exhibitions



Package & Shipping

1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.

2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.

Packing Detail:

1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.

2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
