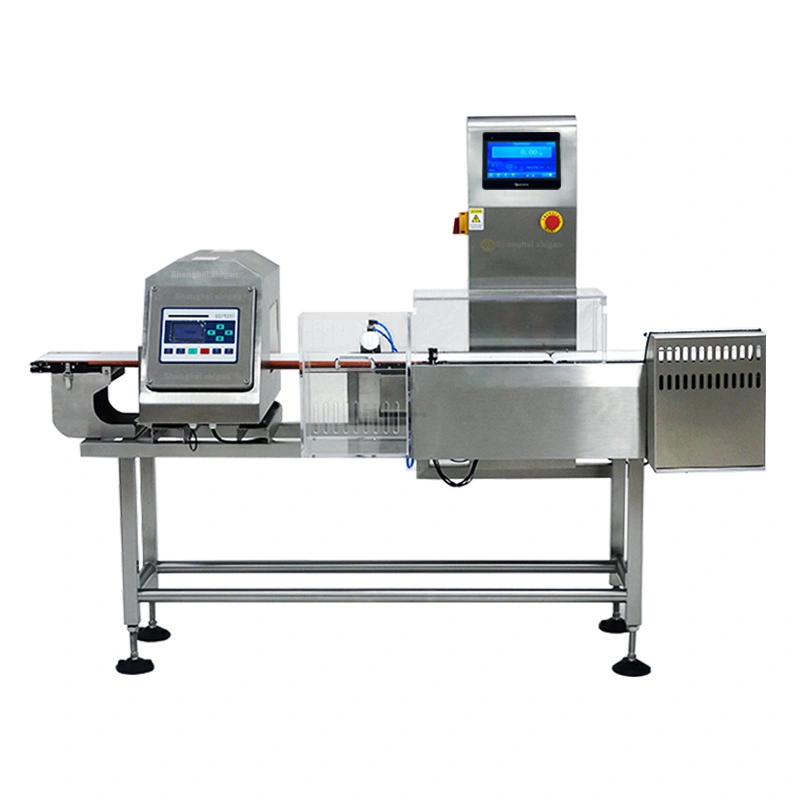

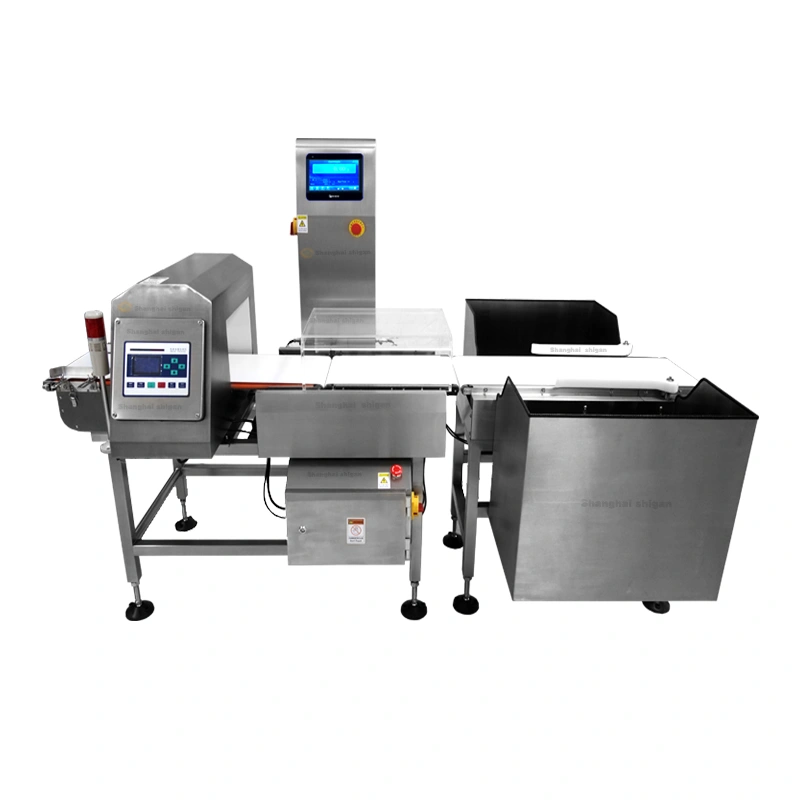

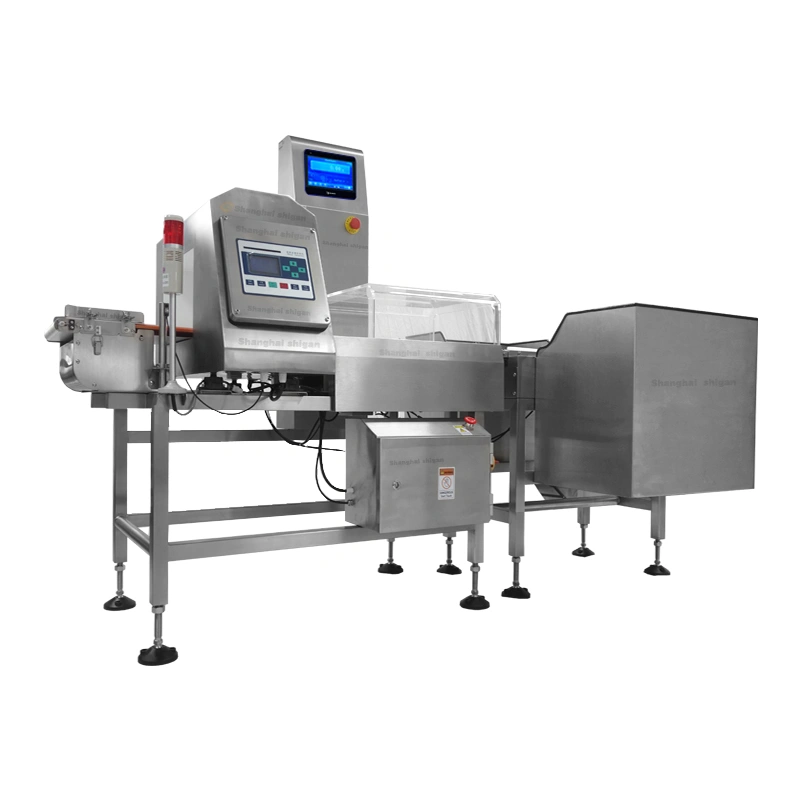

Liquid crystal display and fast automatic rejection metal detector has a small footprint, high-speed digital signal processing devices and intelligent algorithms, which improve the detection accuracy and stability, and are mainly made of stainless steel. The advanced weighing controller in the unit enables users to increase their processing efficiency and profitability.The Checkweigher and Metal Detector Combo adopts LCD liquid crystal screen display, Chinese and English menu screen, easy to realize man-machine dialogue operation.If you are interested in our products,please contact us!
Measuring method: electromagnetic induction / digital load cell
Size: 330×150mm
Accuracy: FE0.8mm SUS2.0mm
Selection accuracy: ±0.5g
Weighing range: 5 grams - 900 grams
Passing height: 110m
Pass width: 280mm
Packaging length: ≤300mm
Display graduation value: 0.1g 0.2g 0.5g 1g
Number of sorting segments: 3 segments
Sorting ability: 60 times/min
Conveyor belt speed: 10-45 m/min
Ground height: 735mm—800mm
Working temperature: 0-40℃
Weight: about 160kg
Dimensions: 1900mm×700mm×1120mm (L×W×H)
1. Double-loop electromagnetic wave detection, the combination of new analog circuit and digital circuit, greatly improves the reliability and intelligence of the product.
2. It is composed of a new type of touch screen input and a large-scale integrated circuit. The CPU completes the collection of analog signals and converts them into digital quantities for processing and output, and automatically retrieves the best point of the metal content of the detected object, which greatly improves the detection sensitivity and reliability. sex.
3. The user-friendly interface design is adopted, the whole operation process is simple and intuitive, the man-machine interface is clear at a glance, and all functions can be directly operated on the screen to complete the executed functions.
4. Various required functions and modes can be set, and self-test function can be set.
When trace metal is detected, the machine stops or kicks out non-conforming product.
Mainly used for food, medicine and industrial supplies.
