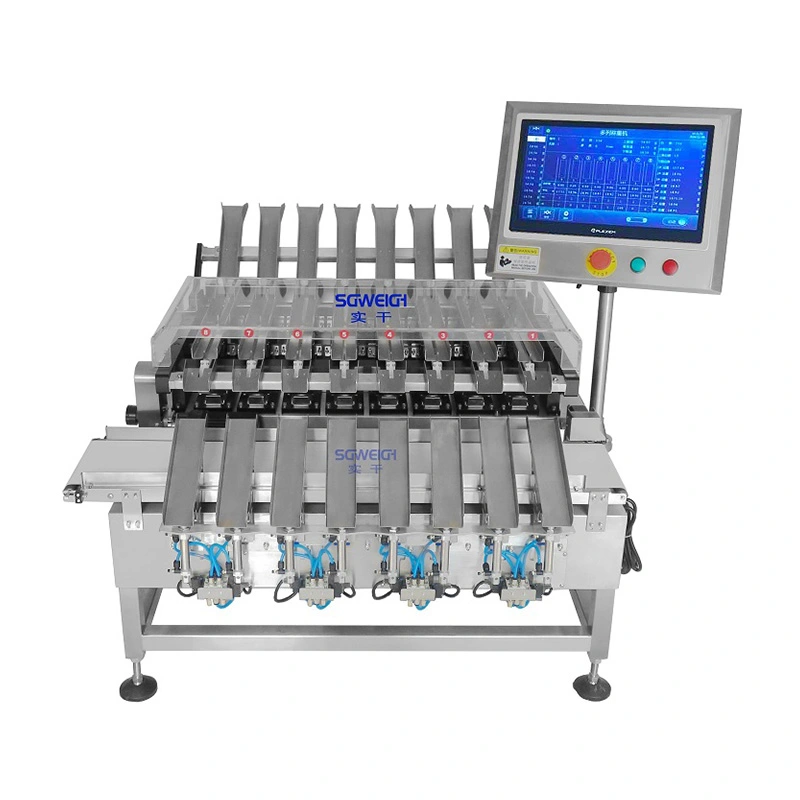

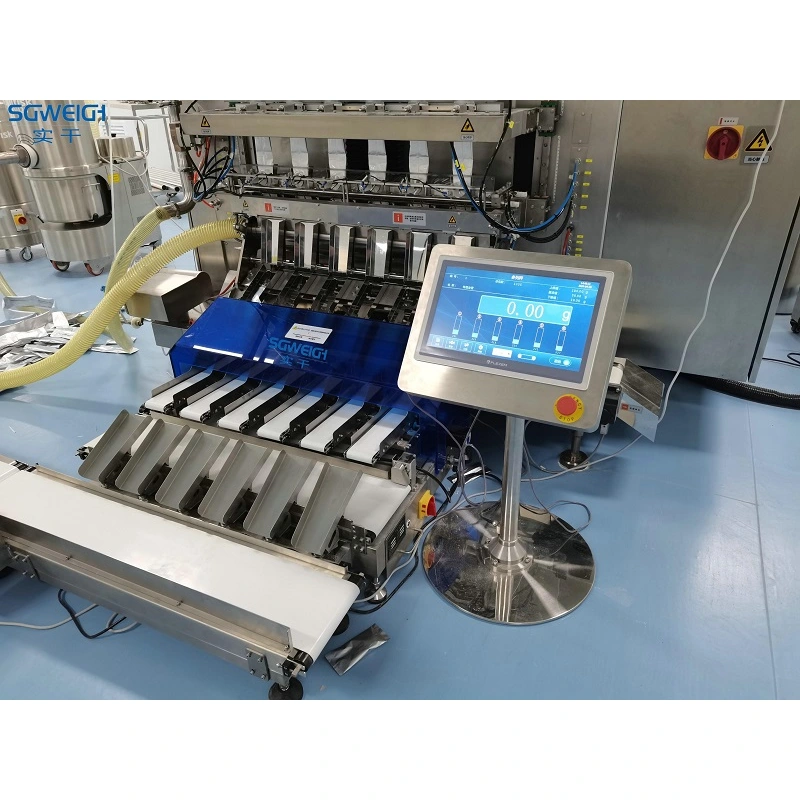

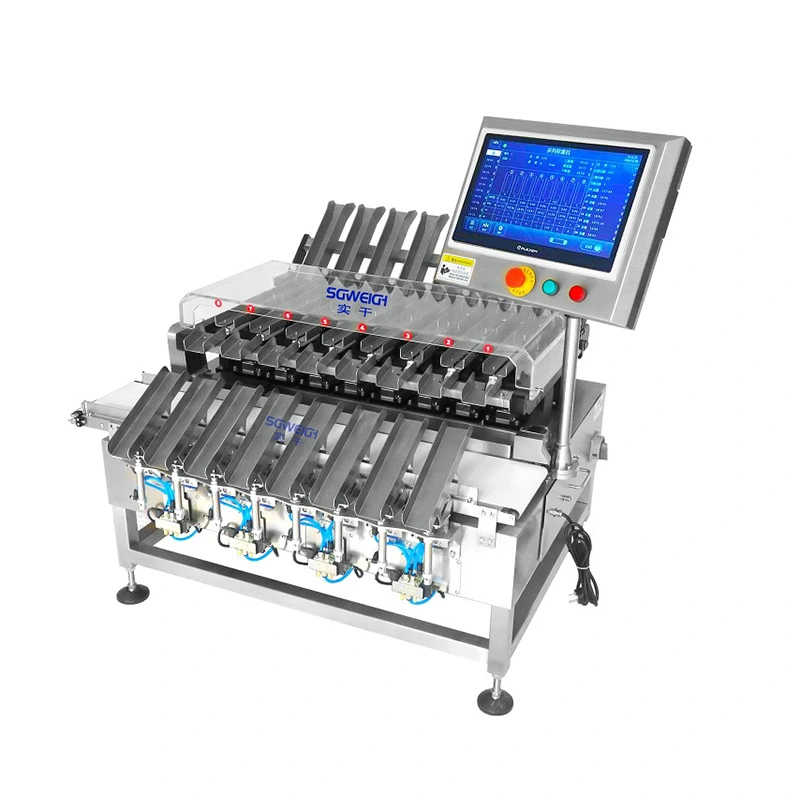

Multi-Column Package Checkweighing System is available both as a standalone machine and as a built-in system for integration into existing production processes.With up to 12 independent lanes,SGWEIGH offers tremendous productivity in a space-efficient form factor.
Type:SG-XM (2-12 lane)
Weighing scope:2-300g
Restrictions of product:L:180 W:40 H:2-20(mm)
Accuracy:±0.01g (Depends on products)
Division scale:0.01g
Belt width:30mm
Highest speed:70pcs/min(one lane)
Weight of machine:about 200Kg
Powder supply：AC220V 50HZ
Power:about 300W
Main material:SUS304(Stainless Steel)
Multi-channel passing products to improve production efficiency
(the number of channels can be customized)
1. N-lane slide patent checkweigher
2. Highest checkweighing speed:70 cuts/min (per lane)
3. Highest accuracy: 0.01g
4. Each lane can separately reject unqualified products.
5. Checkweighing data feedbacks to packing machine to realize real time adjustment of each lane.
6. The number of continuous unqualified products of each channel can be modified.
7. Statistic data export interface: USB
8. Statistic data of each channel: real time results display, trend graph display, histogram display.
Q1. Are you a manufacturer or trader?
A: We are a manufacturer and we are located in Shanghai,China. We have our own design team for product design.
Q2. What are your company's requirements for payment terms?
A: TT,L/C,Western Union,Money Gram,Paypal,International Credit Card.,
Q3: Can you explain the whole transaction process?
1. Understand the specific needs of customers and determine the machine details.
2. Sign the contract.
3. Pay the deposit.
4. The factory arranges production.
5. Test and inspect the machine before shipment.
6. Check by customers through online or on-site testing.
7. Shipment and transportation, balance payment.
Q4. What kind of shipping method can you provide?
A: By sea, by air and by international express.We will send the photo and video of machine to customer to check the machine running situation before delivery.
Q5. Do you accept customer logo and customization?
A: We accept all kinds of customization and logo for our customers for all our products.
Q6. How about the packing for product? Is it easy damaged during transportation?
A: No.We takes of wooden case and it is very safe.
Please tell us the following information while you send us an inquiry. Base on your message, we will suggest the optimum solution to you for reference.Thank you.
●What product?
●Product weight?
●Product size?
●Speed requirement?
●Accuracy requirement?
