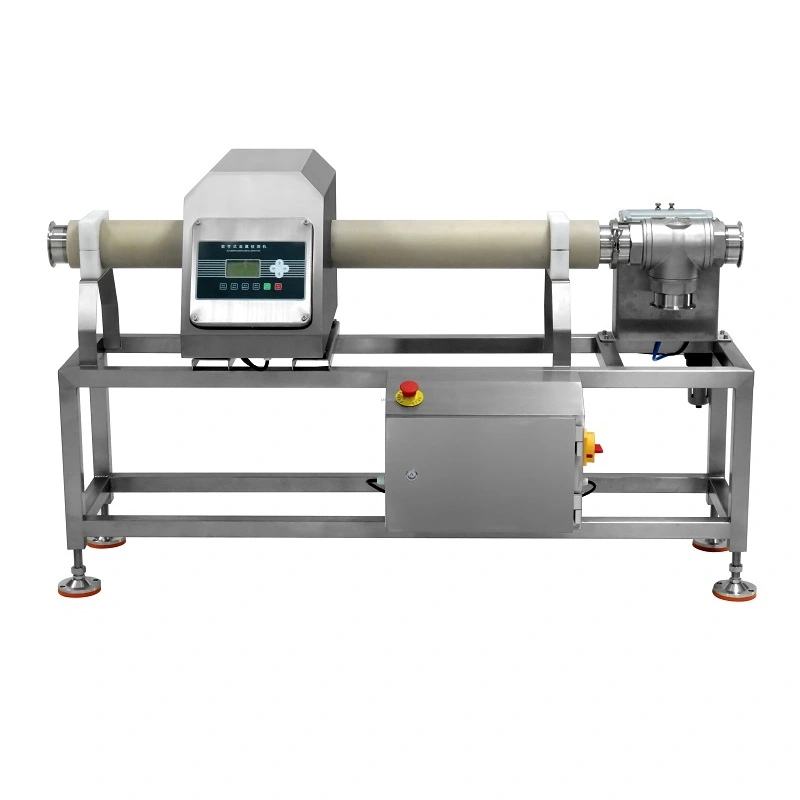

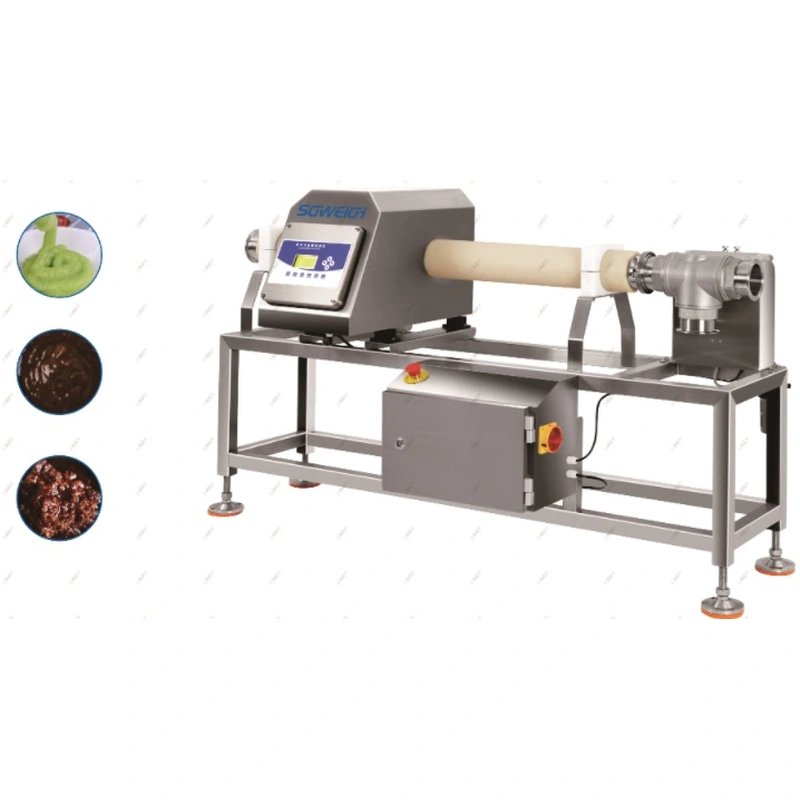

Pipeline Metal Detection Systems For Liquid/Paste are designed for liquid and pasty products. The food and beverage industry must meet the highest quality standards.The sensor and control unit housings are made of solid stainless steel.Water Factory Production Line Pipe Line Type Metal Detector can help you reliably protect machines and consumers from metal contamination. They are very easy to integrate into your production line.Welcome to consult for quotation information!
Model: SG-ML80/SG-ML100/SG-ML150/SG-ML200
Tube inner diameter: 80/100/150/200
Detection sensitivity: Fe (Φ) - 0.6/0.8/1.0/1.0
SUS304（Φ）:1.2/1.5/1.5/2.0
Pipeline flow t/h: 2/4/8/15
Machine weight: 120kg/140kg/160kg/180kg
Product preset quantity: 100 kinds
Detected product form: powder, small particles, liquid, paste
Air source requirement: ≥0.5MPA
Alarm mode: detect metal, alarm and automatically remove
Pipe material: PP

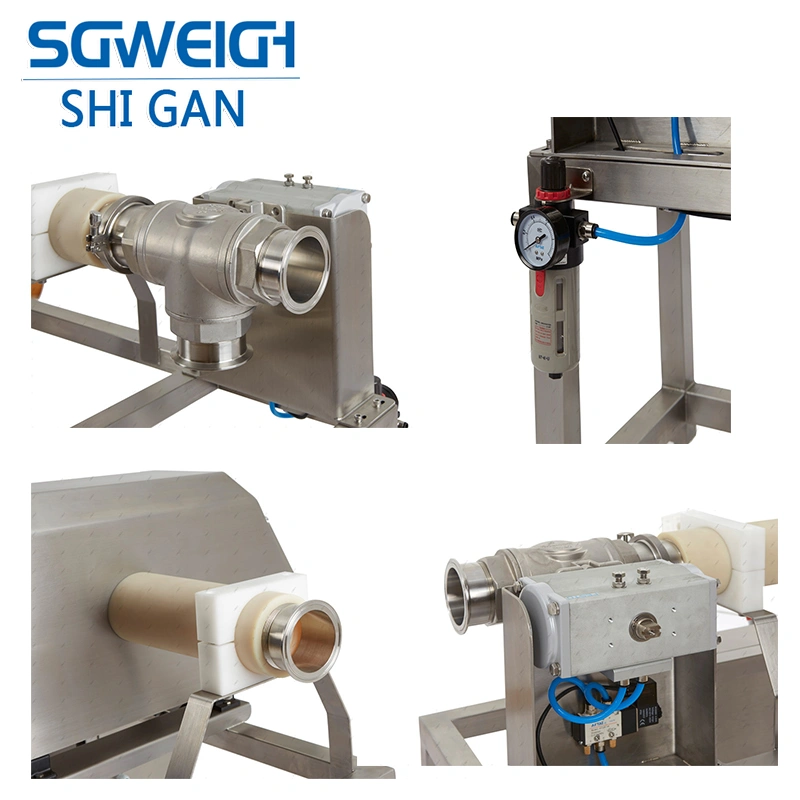

1. Our metal detectors are very easy to integrate into piping systems thanks to the quick lock fittings.
2. Thanks to their practical, robust and hygienic stainless steel design and high protection class, they are particularly easy to clean.
3. They have high sensitivity to all metals.
4. The control unit with touch display ensures extremely simple and intuitive operation.
5. With self-monitoring, self-calibration and temperature compensation functions.
1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
Packing Detail:
1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
1.Product quality commitment
(1).There are quality records and testing data for the manufacture and testing of products.
(2).For the inspection of product performance,we sincerely invite users to inspect the whole process and performance of the product in person.After the product is confirmed to be qualified,it will be packaged and shipped.
2.the product price commitment
Under the same competitive conditions, our company will sincerely provide you with a preferential price on the basis of not reducing the technical performance of the product or changing the product components.
3. Delivery time commitment
Product delivery time: as far as possible according to user requirements,if there are special requirements, it needs to be completed in advance,and strive to meet user needs.
