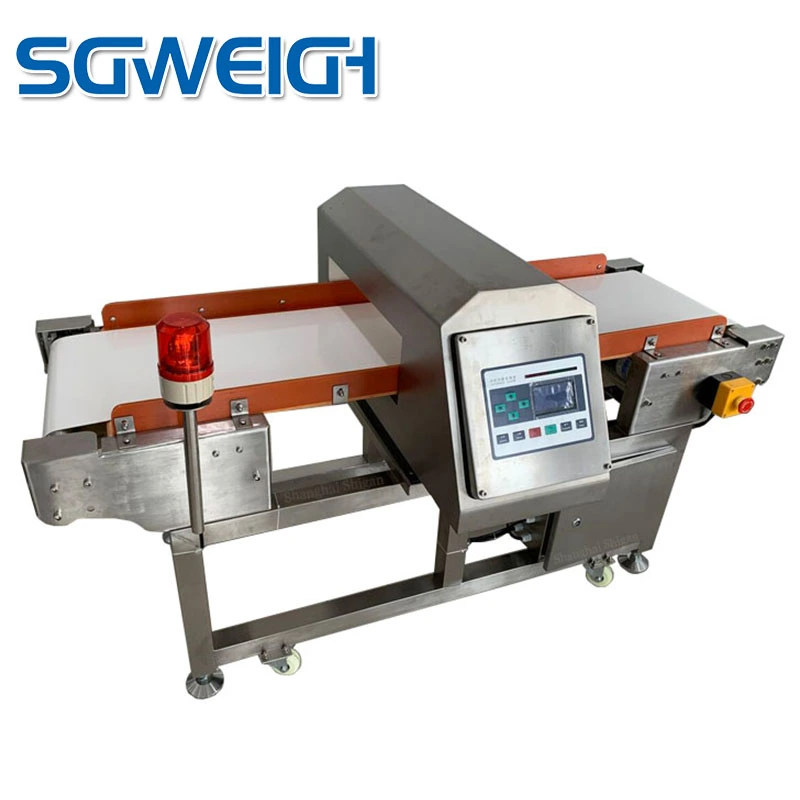

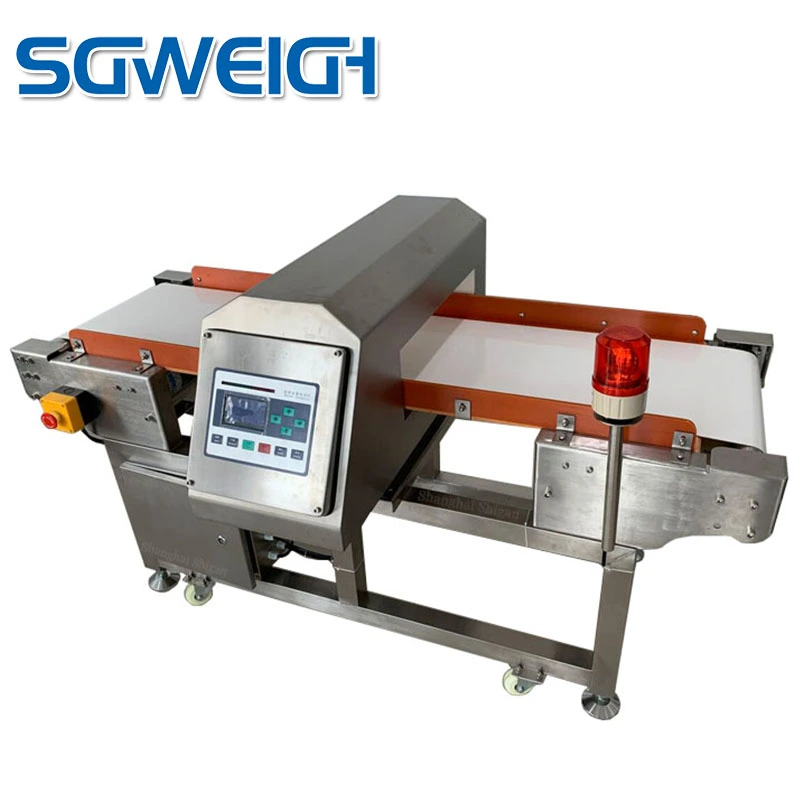

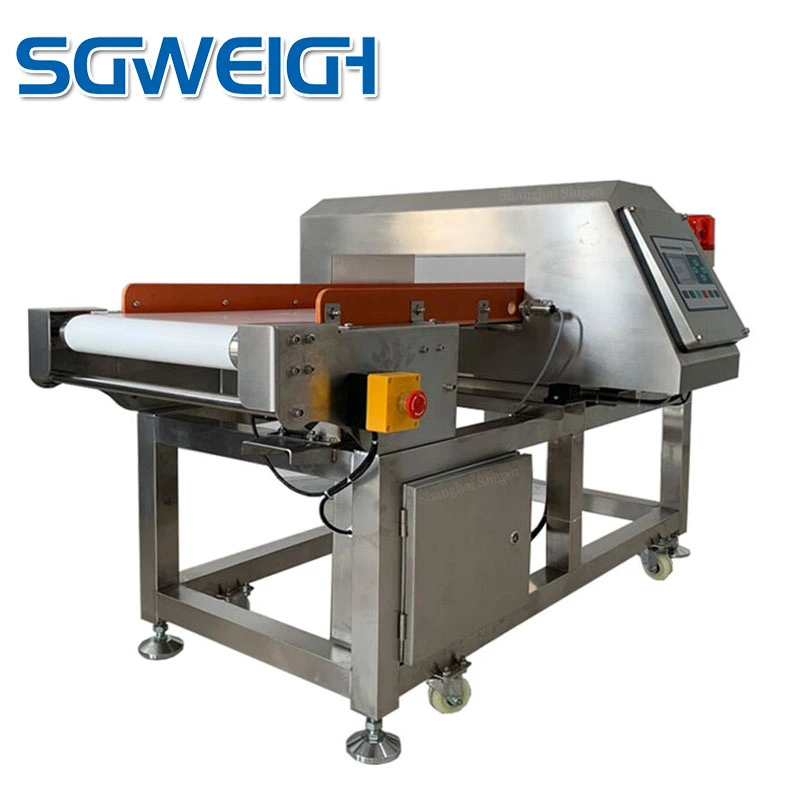

Poultry Processing Conveyor Belt Online Metal Detector for Food Security Detection
Detection sensitivity: in empty state
H-100mm: Fe≥Φ0.8mm, Non-Fe≥Φ1.5mm, SUS≥Φ1.5mm
H-120mm: Fe≥Φ0.8mm, Non-Fe≥Φ1.5mm, SUS≥Φ2.0mm
H-150mm: Fe≥Φ1.0mm, Non-Fe≥Φ1.5mm, SUS≥Φ2.0mm
H-200mm: Fe≥Φ1.2mm, Non-Fe≥Φ2.0mm, SUS≥Φ2.5mm
Effective detection hole width: 150-1000mm customized according to requirements
Effective detection hole height: 80-500mm customized according to requirements
Maximum speed of conveyor belt: 25m/min
Conveyor belt material: food grade PU belt
Protection class: IP65
Display and operation mode: LED falt key input
Machine weight: about 120kg
Power requirements: AC220V 50HZ
Power: 200W
For reference only, please consult for details!
Contact us to recommend a product that is suitable for you!
1. The metal detector adopts a highly user-friendly and intelligent design and has an underlying self-learning function.
2. The metal detector can store 100 product parameters. Once the product parameters are set, there is no need to adjust them again.
3. The metal detector adopts modular design and installation, which is convenient for disassembly and assembly, easy maintenance and low maintenance cost.
4. It can be customized according to the size, weight and characteristics of the detection product to achieve the best detection sensitivity.
5. The rejection system and control system can be customized according to the characteristics of the production line to improve production efficiency.
1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
Packing Detail:
1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
