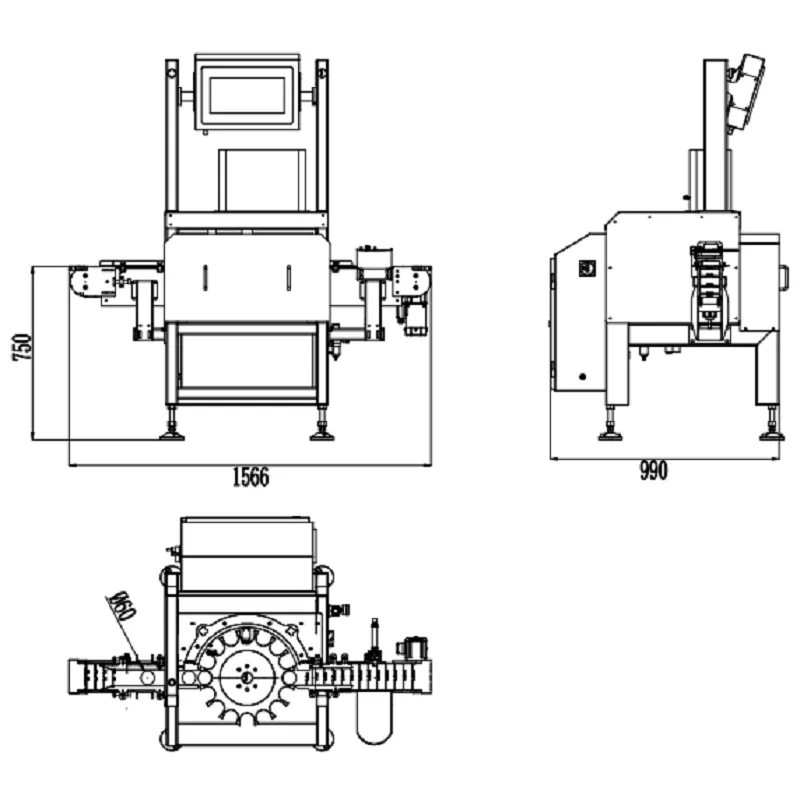

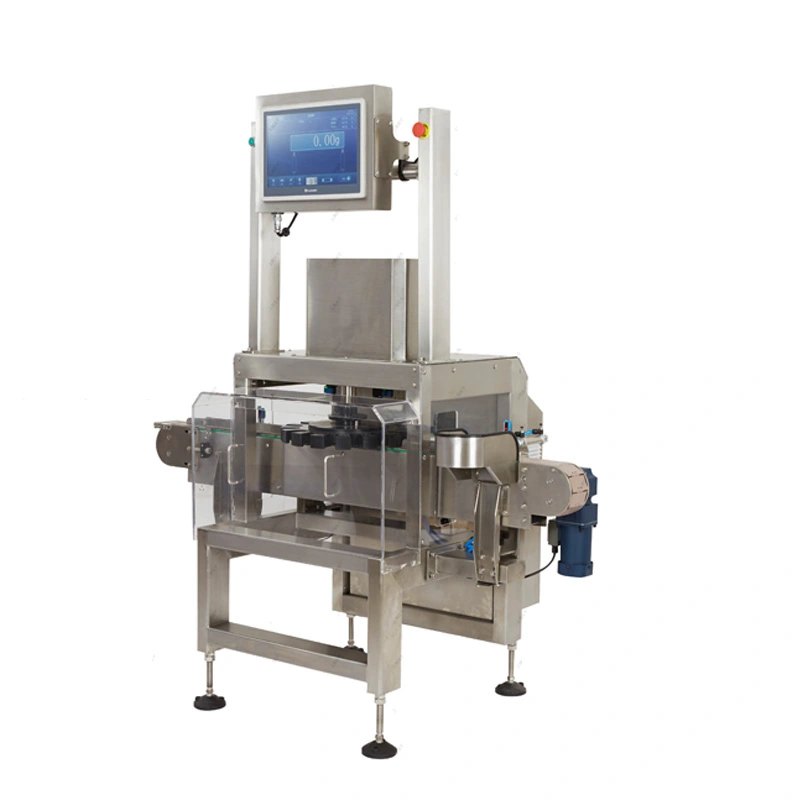

The Rotary Checkweigher is mainly composed of front-end chain plate feeding,clamping turntable,weighing module,discharging chain plate and rejection.

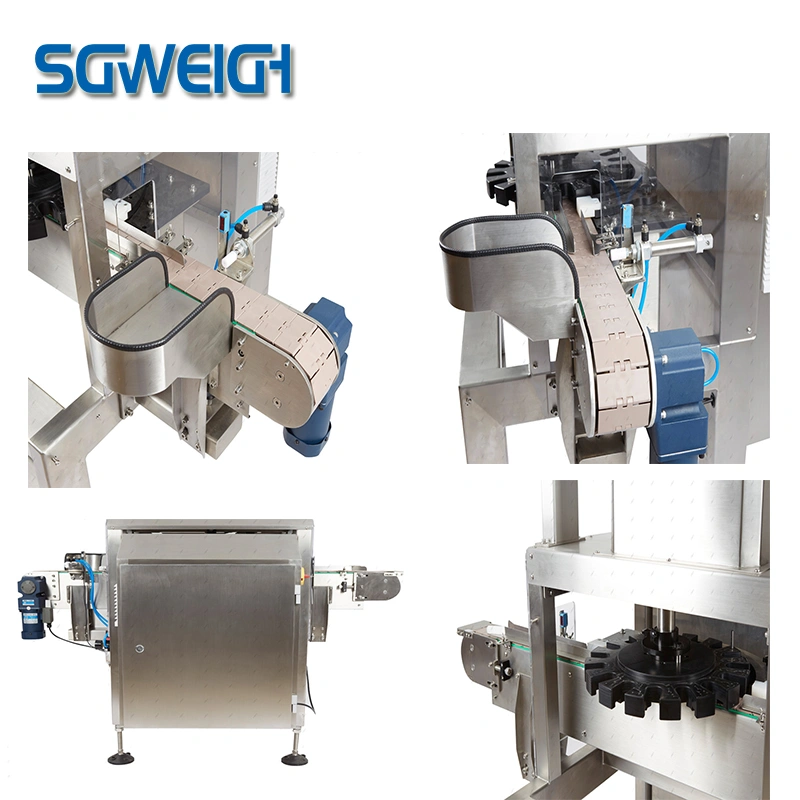

Front-end chain plate feeding:
The front-end feeding chain plate transports the tested products to the turntable one by one through photoelectric induction.
Clamping turntable:
The corresponding quantity of products is mainly clamped to the weighing module through the clamping turntable to ensure the accuracy of the quantity.
Weighing module:
Completes the collection of weight signals. When the product under test passes through the weighing module, all the weight data of the entire process will be analyzed and calculated to calculate the weight of the product under test. At the same time, the weighing module will determine whether the weight data obtained is within within the required weight range.
Rejection device:
When the products pass through this section of the conveyor belt, qualified products will continue to be transported backward. If they are not within the required weight range, the machine will start the rejection mechanism to remove products with unqualified weight (overweight/underweight).
Type:SG-Z
Weighing scope:2-300g
Restrictions of product:Ф10-100 Н:20-200(mm)
Accuracy:±0.01g (Depends on products)
Division scale:0.01g
Belt Speed:0-50m/min
Highest speed:60pcs/min,120pcs/min,180pcs/min(Optional)
Chain plate width:100mm
Weight of machine:about 260Kg
Powder supply ：AC220V 50HZ
Power:about 400W
Main material:SUS304
1.Large screen display, clear viewing and convenient operation
2.Chinese-English interface ( Multiple languages can be customized)
3.Photoelectric positioning, the turntable accurately sends the product to the load cell
4.Chain conveyor is strong and durable
5.Three-level operation authority management, support self-set Password
6.100 kinds data can store with strong data statistics function.
7.Unqualified products are automatically rejected (push type, air blowing type are optional)
1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
Packing Detail:
1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
A. Pre -sale:
1. In accordance with the customer's requirements, the customer quotes the customer, and the customer has special requirements for timely recording feedback;
2. Sign a standardized product order contract, clarify responsibilities and other related matters;
3. Provide free warranty for one year, lifelong maintenance service, and be responsible for debugging the product before delivery;
B. After -sales:
1. If the customer's product fails, the problem will be solved for you as soon as possible
2. During the warranty period, the product maintenance is free. It exceeds the warranty period and can also provide maintenance. If the accessories are replaced, the product accessories are provided at the cost price.
