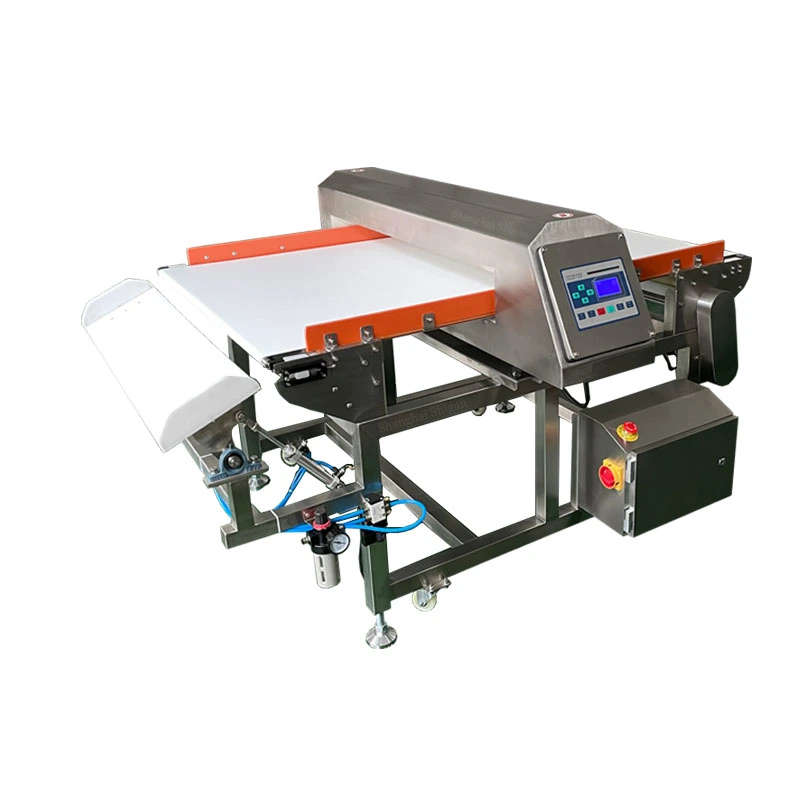

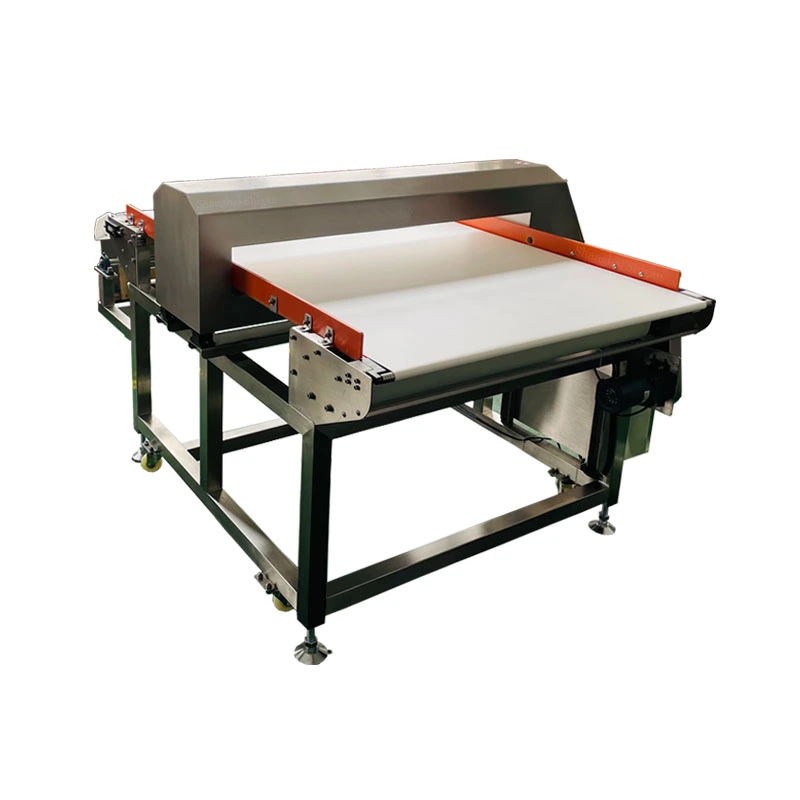

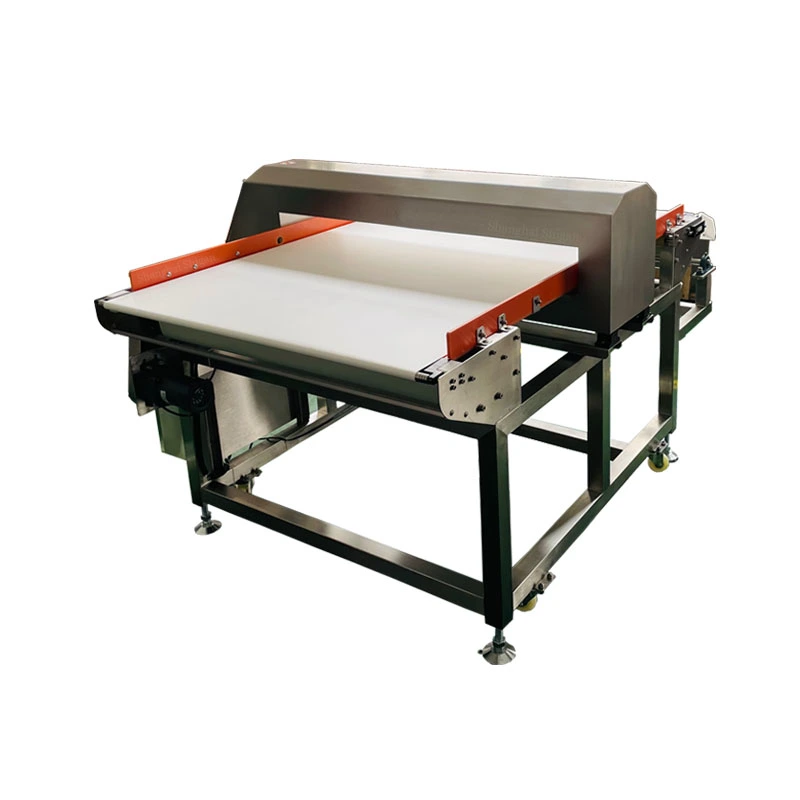

The SG-M400 Multi-Industry Metal Detector Machine is an intelligent metal detection equipment developed using digital intelligence technology.It realizes the full digitalization and intelligence of metal detection technology.Metal Detector Machine has excellent performance and simple operation, which improves the production efficiency of the enterprise.It is the ideal device for achieving the highest detection sensitivity and providing protection for your products.Welcome to consult for quotation information!
Detection sensitivity: in empty state
H-100mm: Fe≥Φ0.8mm, Non-Fe≥Φ1.5mm, SUS≥Φ1.5mm
H-120mm: Fe≥Φ0.8mm, Non-Fe≥Φ1.5mm, SUS≥Φ2.0mm
H-150mm: Fe≥Φ1.0mm, Non-Fe≥Φ1.5mm, SUS≥Φ2.0mm
H-200mm: Fe≥Φ1.2mm, Non-Fe≥Φ2.0mm, SUS≥Φ2.5mm
Effective detection hole width: 150-1000mm customized according to requirements
Effective detection hole height: 80-500mm customized according to requirements
Maximum speed of conveyor belt: 25m/min
Conveyor belt material: food grade PU belt
Protection class: IP65
Display and operation mode: LED falt key input
Machine weight: about 120kg
Power requirements: AC220V 50HZ
Power: 200W
Alarm mode: metal detection, alarm belt stop or automatic removal
Dimensions: about L1500×W850×H950mm
1. Can detect the quality of magnetic and non-magnetic metal miscellaneous products.
2. It can automatically learn products with relatively large effects, and adjust and compensate internal parameters according to the size of the product effect, so as to achieve safe passage of the product and detect metal impurities.
3. It can memorize 100 product parameters, and the name of the memorized product can be changed, making it easy to find the corresponding product parameters among many products at any time.
4. The probe coil is completely sealed with glue to improve the anti-interference ability to the outside world and reduce false alarms caused by external metal movement.
5. Resistant to vibration, noise, and temperature changes, and can adapt to harsh working environments.
6. The stable stainless steel probe and transport frame adopt a fully welded "open structure" to meet hygienic requirements.
7. The conveyor belt is food grade.
8. Protection level IP65, compliant with HVCCP and IPS certification.
9. When metal is detected, the machine will alarm and shut down. You can also choose a rejection device, air blowing, duplication, swing arm, belt upper and lower, etc. to choose from.
1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
Packing Detail:
1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
About the price
The price is based on the customer service quotation as the real price!
About the certificate
Each product will be equipped with a certificate of conformity before shipment, please rest assured to buy!
About delivery
The delivery cycle is within 10-15 days after the order is placed. If there is stock, it will be sent out in a short time. The customer needs to customize it. The specific delivery time will be notified to you by the customer service track!
About maintenance
If the customer's product fails, we will provide you with a specific solution.
