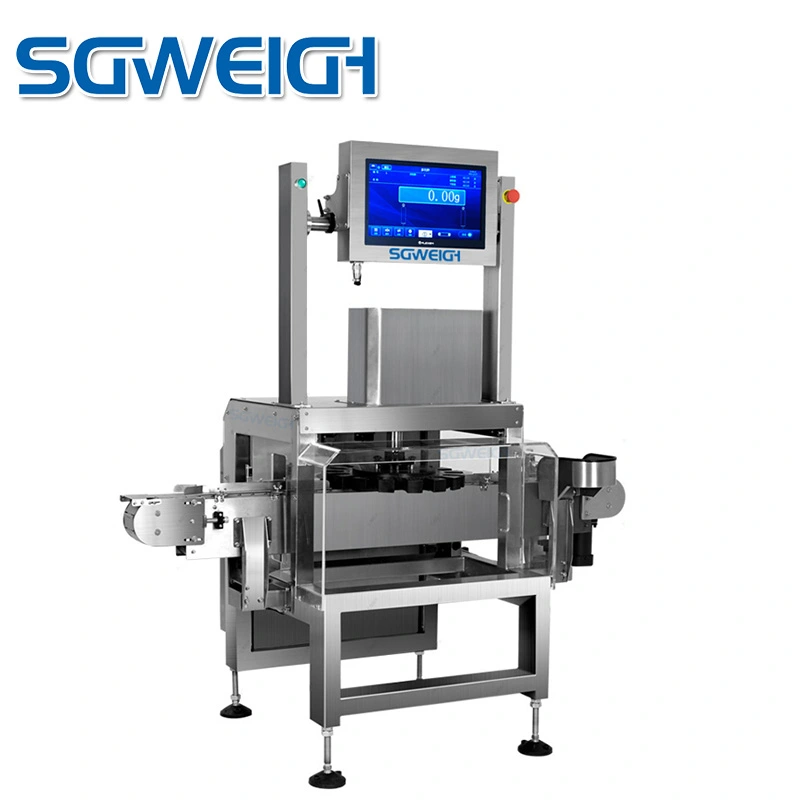

The SG-Z2 Dual-Channel Buckle-Type Conveyor Checkweigher is an automated equipment mainly used for weight detection of bottled items.Touchable Vial Rotary Checkweigher transports the items to be tested through the chain plate,and the turntable accurately delivers the products to the load cell.This kind of equipment is widely used in production lines and can effectively improve production efficiency and product quality.Welcome to consult for quotation information !
Model: SG-Z2 (dual channel)
Weighing range: 5-300g
Minimum scale: 0.01g
Sorting accuracy: ±0.02 grams (depending on the product)
Sorting speed: maximum 50 pieces/minute (single channel)
Conveying speed:20-50m/min
Operation mode: touch operation
Conveying direction: Facing the touch screen from left to right
Rejection method: air blowing removal/push plate removal

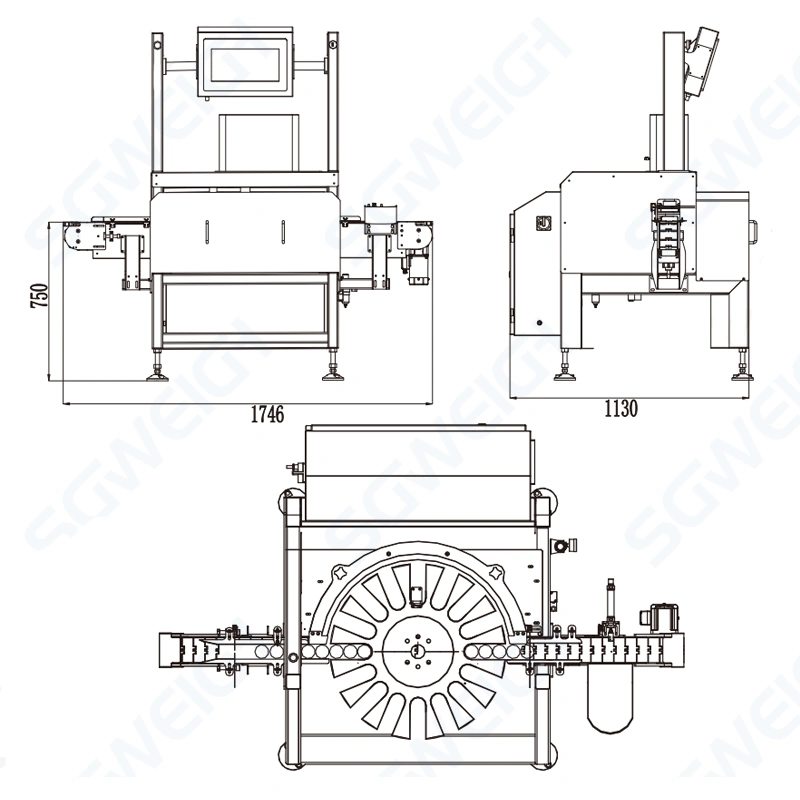

Belt height from the ground: 750±50mm (can be customized according to customer requirements)
Machine structure: stainless steel (SUS304)
Power supply: 220V 50-60HZ
Power: about 1500W
Windshield: thick acrylic (to avoid airflow interference)
Working environment: Temperature: 0℃～40℃, Humidity: 30%～95%
Note: The properties and usage environment of the tested products are different, and the detection speed and accuracy are also different. The actual test is used as the standard.
For reference only, please consult for details!
Contact us to recommend a product that is suitable for you !
1. Large color LCD touch screen interface, easy to operate and intuitive to display.
2. Supports customization of multiple languages, the default is Chinese and English.
3. Equipped with automatic photoelectric detection of empty packages, and the conveyor belt speed is adjustable.
4. Parameter settings are protected by three-level passwords and can only be operated by managers.
5. Product weighing data can be exported via USB.
6. Power-off protection function, unexpected power-off parameters remain unchanged.
7. The parameters of different products can be set to store 100 kinds of detection data, making it convenient for users to switch and call.
8. Data statistics function. The total number of products passed within a period of time/the total number of underweight products/the total number of overweight products.

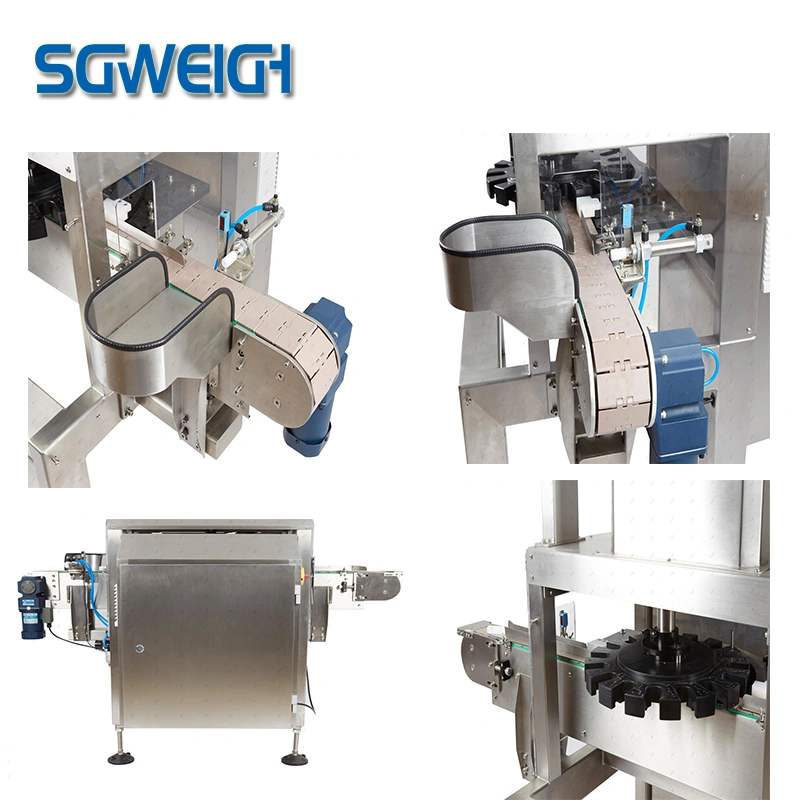

9. The mechanical structure is simple and the buckle-type conveyor belt is easy to disassemble, clean and maintain. Comply with GMP and HACCP regulations.
10. Automatic dynamic compensation value and dynamic zero-point tracking, including zero-point tracking during continuous operation of the equipment, ensure reliable detection data.
11. The curve graph/bar graph displays the statistical distribution of the sorting (re-inspection) results, and the window displays the values of the last 10 re-inspection results.
12. Using patented technology, independent research and development of single-chip microcomputer system, unique filtering algorithm, with ultra-high precision and reliability. Ensure system stability.
1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
Packing Detail:
1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
Based on the spirit of pursuing high-quality products and customer satisfaction,Shanghai Shigan Industrial Co,.Ltd solemnly promises you with the principles of preferential prices,considerate service and reliable product quality.
1.Product quality commitment:
(1). The manufacturing and testing of products have quality records and testing data.
(2). For product performance testing,we sincerely invite users to personally check the whole process and performance of the product,and then pack and ship the product after it is confirmed to be qualified.
2. Product price commitment:
Under the same competitive conditions, our company will sincerely provide you with preferential prices on the basis of not reducing product technical performance or changing product components.
3. Delivery time commitment:
Product delivery time:Try to meet user requirements. If there are special requirements,it needs to be completed in advance, and strive to meet user needs.
