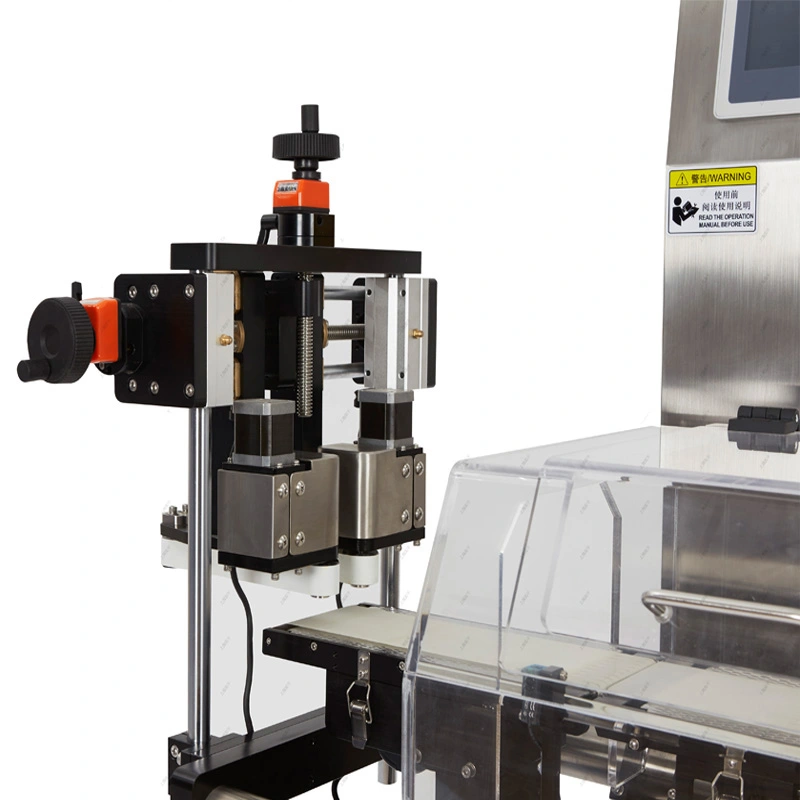

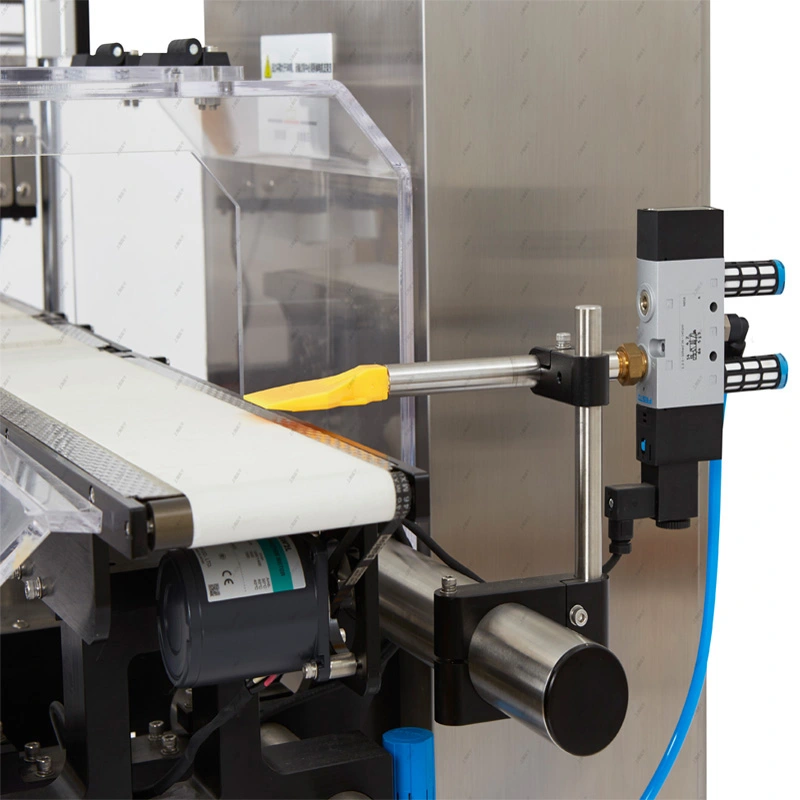

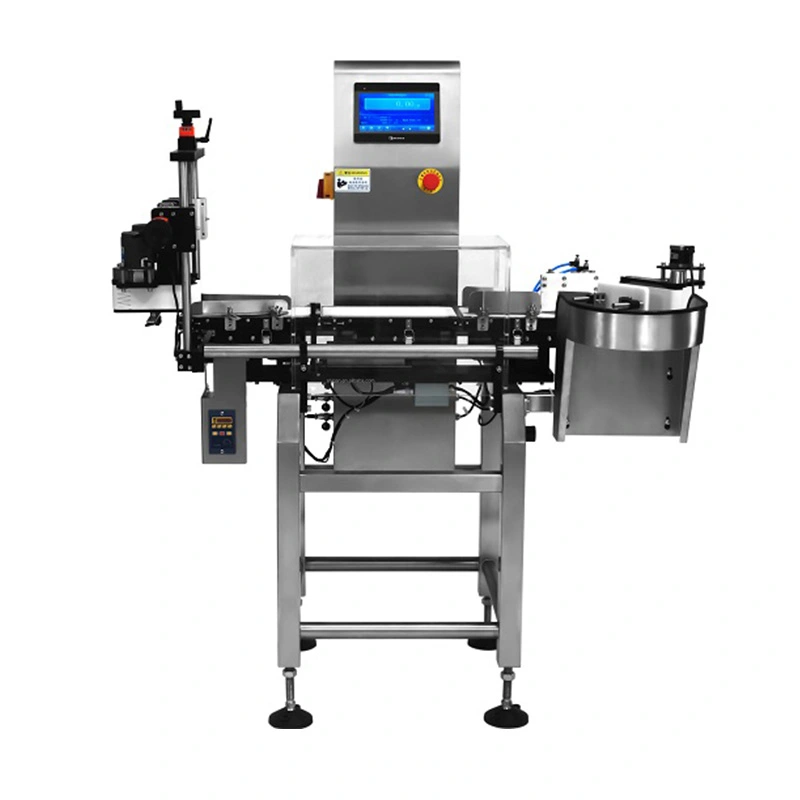

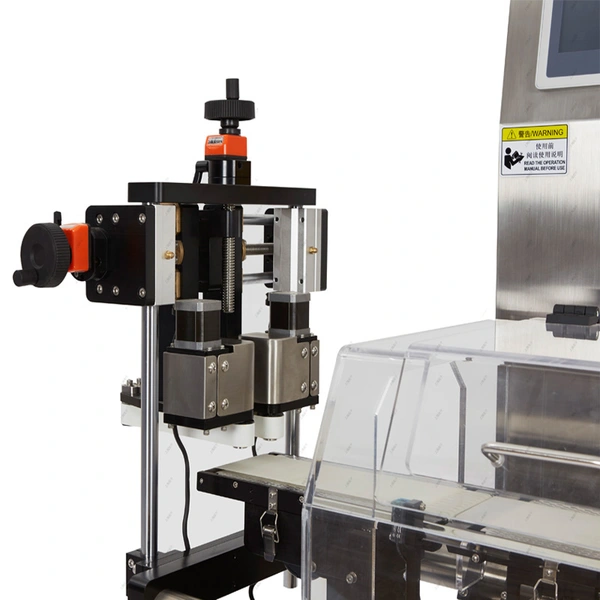

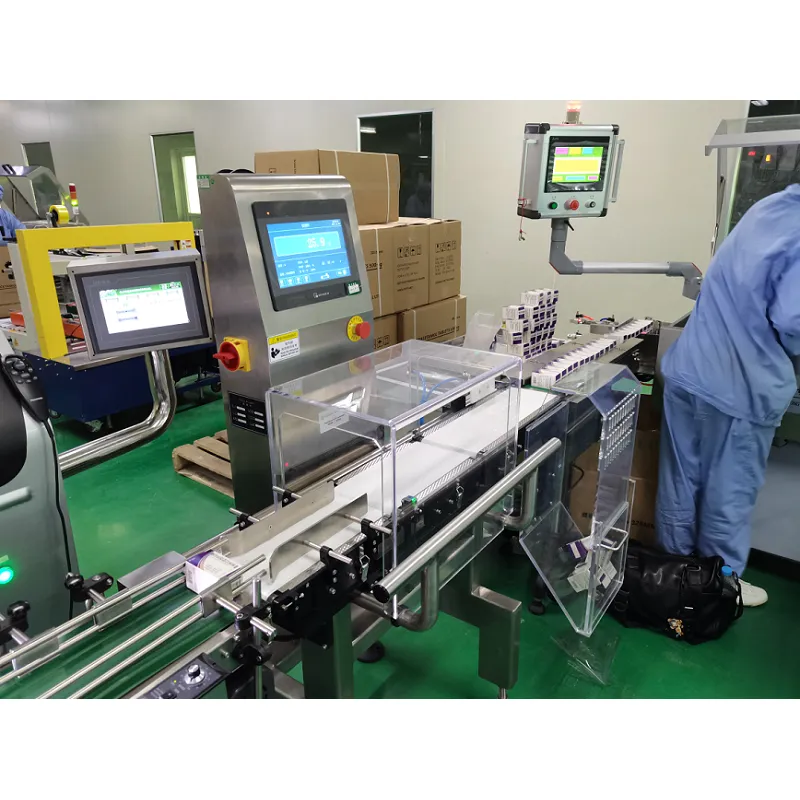

Small Medicine Bottle Checkweighers are suitable for small to medium sized cylindrical packaged products such as bottles, jars and cans.Bottled Calcium Tablets Dynamic Weighing Systems are equipped with variable speed conveyor, pneumatic rejection device and collection chamber for rejected products. Throughput is up to 450 pieces/min in the range from 2 to 300 g.
Type:SG-100HH
Weighing scope:2-300g
Restriction of product:L:100 W:100 H:2-150(mm)
Accuracy:±0.01g(Depends on products)
Division scale:0.01g
Highest speed:450pcs/min
Belt width:100mm
Belt Speed:0-120m/min
Weight of machine:about 120kg
Power supply:AC220V±10%50HZ
Power:about 200W
Main material:SUS304
1. High precision
Able to accurately measure product weight to ensure that the product meets the specified weight range.
2. Quick weighing
Using high-speed weighing sensors and efficient processors to achieve fast weighing and improve production efficiency.
3. Intelligent
LCD touch screen, Chinese/English interface, convenient for operators to view weighing data in real time.
4. High degree of automation
It can realize the function of automatically eliminating unqualified products and reduce the difficulty and workload of manual operation.
5. Highly customizable
According to different needs, the specifications and configuration of the weighing scale can be flexibly customized to meet various production needs.
1. Suitable for the detection of small bottled drugs to detect whether there is a lack of medicine particles or instructions in the bottle.
2. Suitable for use on the back-end assembly line of the filling machine.
3. Suitable for bottled products of other shapes, such as bottled eye drops, glue, etc.
Inner use the plastic wrapping ,out package will use stronger wooden cases.
Our standard package process:
1) Dust & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5) Packing Modules into Plywood Cases
6) Mark Shipping Mark In The Cases
If any special requirements, we will pack it as requested.
