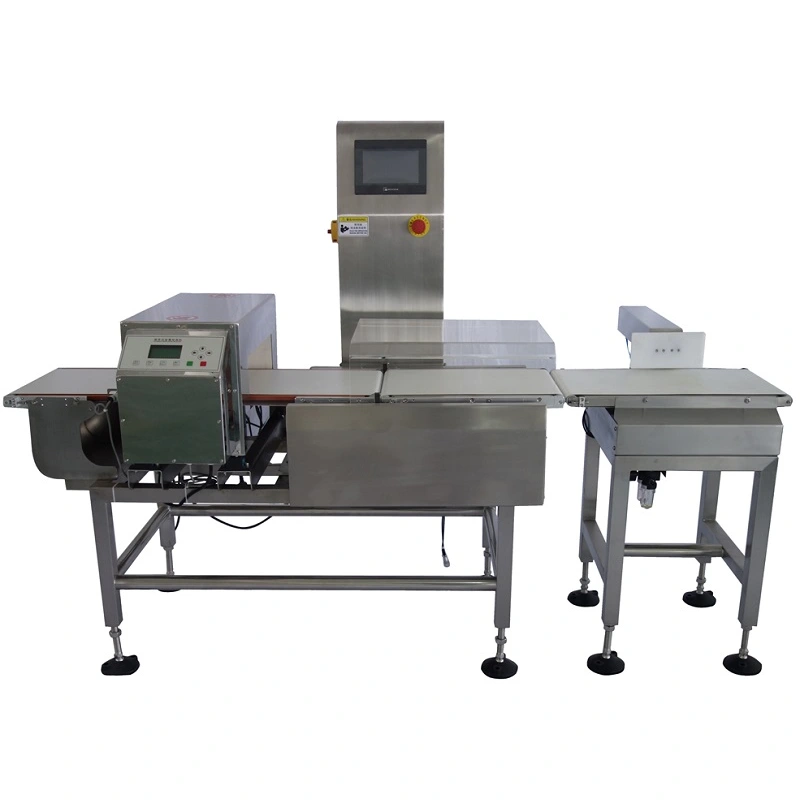

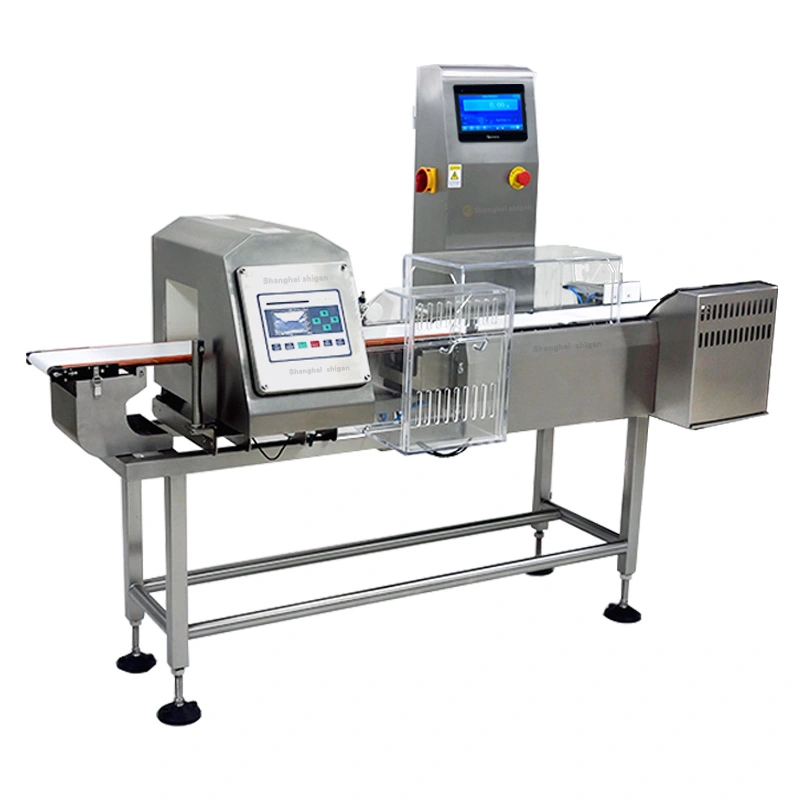

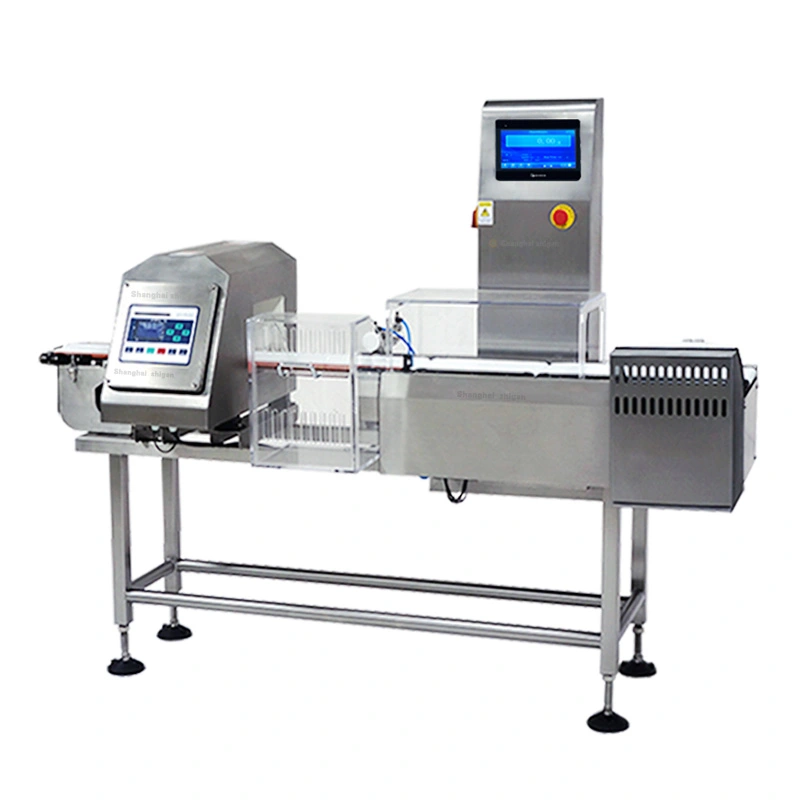

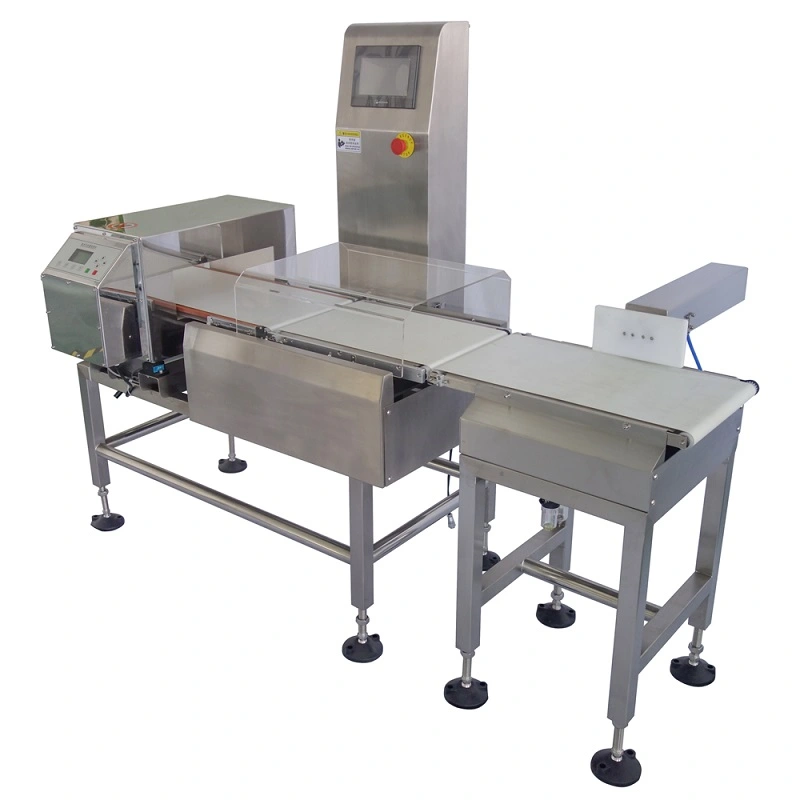

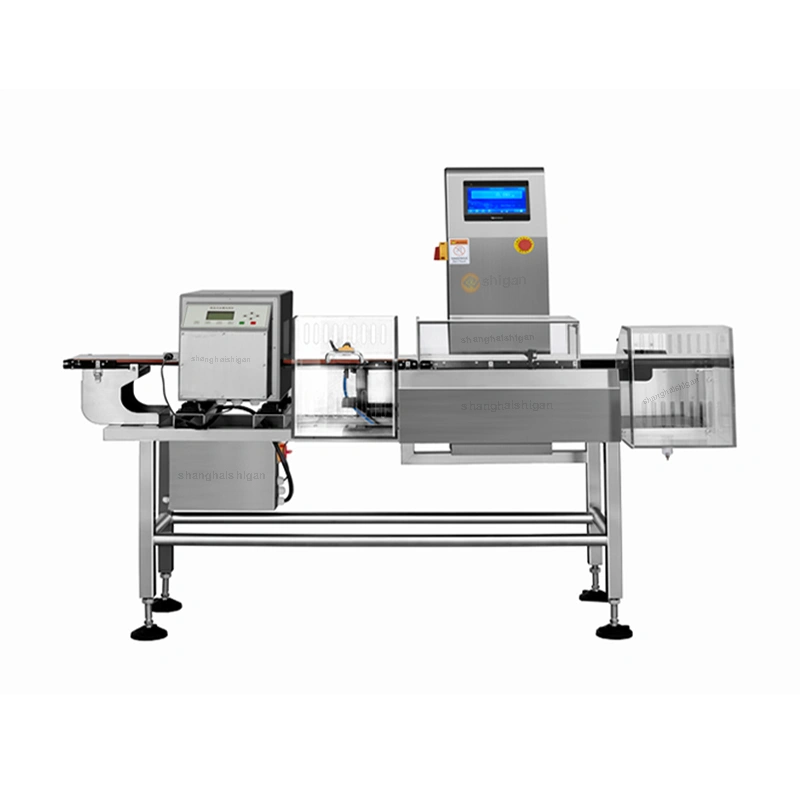

The Snack Food Meat Products Online Weight Checker And Metal Detector Machine Combo is a compact combination of automatic checkweighing scales and metal detection on one device.The two detection technologies are combined with a touch screen user interface to perform weight detection and metal detection on products at the same time.This equipment is the first choice for companies with limited production and installation space.Weight Checker And Metal Detector Machine Combo are controlled through an operating terminal.Mainly suitable for detecting stainless steel, copper,aluminum, iron and other metal foreign matter and online weight detection in industries such as food,medicine,electronics,chemicals,rubber and plastics,toys,wool textiles,etc.Welcome to consult for quotation information!
Model: SG-JS150
Detection hole width: 150mm
Detection hole height: 100-200mm
Detection sensitivity:
H-100mm: Fe≥Φ0.8mm,SUS≥Φ1.2mm
H-120mm: Fe≥Φ0.8mm,SUS≥Φ1.8mm
H-150mm: Fe≥Φ1.2mm,SUS≥Φ2.0mm
H-200mm: Fe≥Φ1.5mm,SUS≥Φ2.5mm
Effective detection hole width: 150mm
Effective detection hole height: 100-200mm
Weighing range: 5-500g
Weighing accuracy: ±0.1g(Depends on products)
Conveyor belt height: 750mm (±50mm)
Conveying capacity: 10Kg/time
Delivery direction: from left to right
Maximum speed of conveyor belt: 25m/min
Conveyor belt material: food grade PU belt
Protection class: IP65
Display and operation mode: LED LCD flat button input
Machine weight: 240kg
Power requirements: AC220V 50HZ
Power: 300W
Dimensions: about L2267×W589×H1500mm (final design shall prevail)
For reference only, please consult for details!
Contact us to recommend a product that is suitable for you!
1. Reverse detection: The use of high-precision imported through-beam switches, combined with the curve fitting algorithm, can accurately complete reverse detection.
2. Customization capabilities: customization and function development to meet various special requirements.
3. Easy and intelligent operation: using wide LCD and wizard-style interface, users can easily set up and operate.
4. Data is reliable: FRAM storage technology is used to ensure system parameters and data.
5. Advanced manufacturing technology: The metal detector uses an all-stainless steel probe and frame, with a variety of protection levels for customers to choose from, adapting to various production environments.
6. Conveyor belt anti-deviation design: The metal detector adopts a special conveyor belt anti-deviation design to effectively avoid conveyor belt deviation.
7. Rich peripheral interfaces: RS-485 data communication, PLC programming node, and printer output can be configured, which can provide real-time data for the production management system for remote control, analysis and monitoring, and provide valuable traceability information.
8. Rejection device: Equipped with arm type, blowing type, flip plate type, push rod type and other rejection devices.
A. Pre -sale:
1. In accordance with the customer's requirements, the customer quotes the customer, and the customer has special requirements for timely recording feedback;
2. Sign a standardized product order contract, clarify responsibilities and other related matters;
3. Provide free warranty for one year, lifelong maintenance service, and be responsible for debugging the product before delivery;
B. After -sales:
1. If the customer's product fails, the problem will be solved for you as soon as possible
2. During the warranty period, the product maintenance is free. It exceeds the warranty period and can also provide maintenance. If the accessories are replaced, the product accessories are provided at the cost price.
