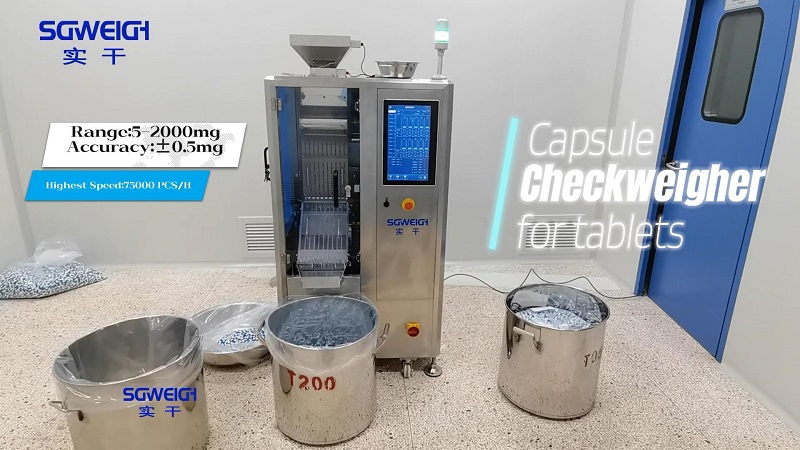

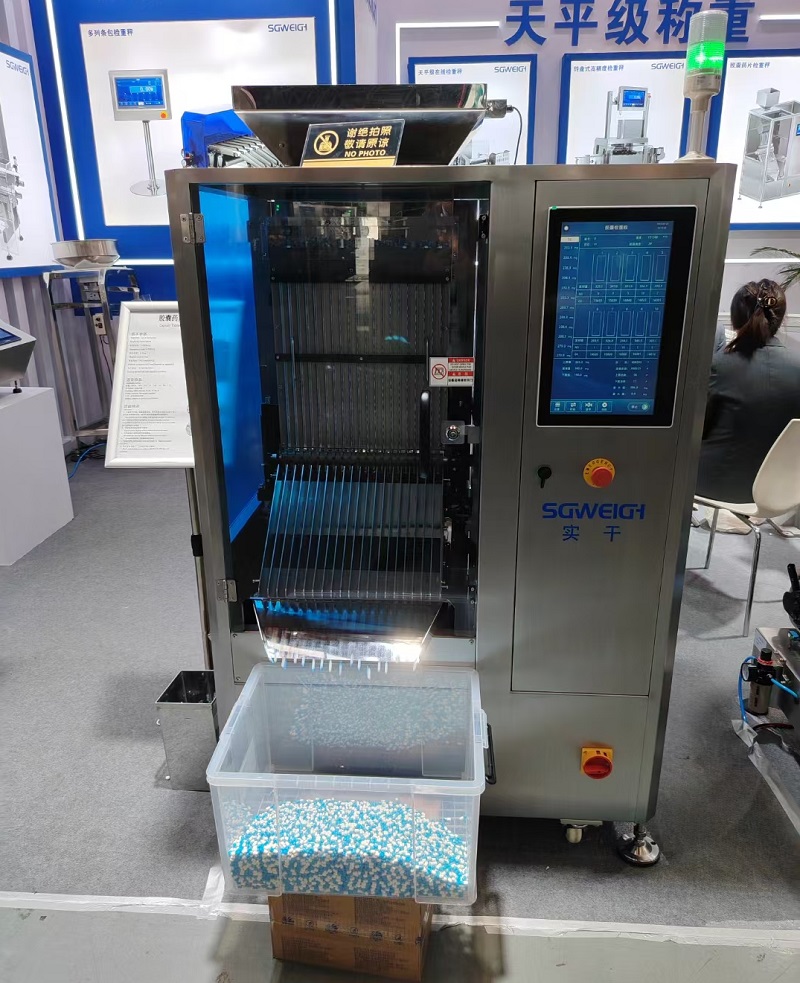

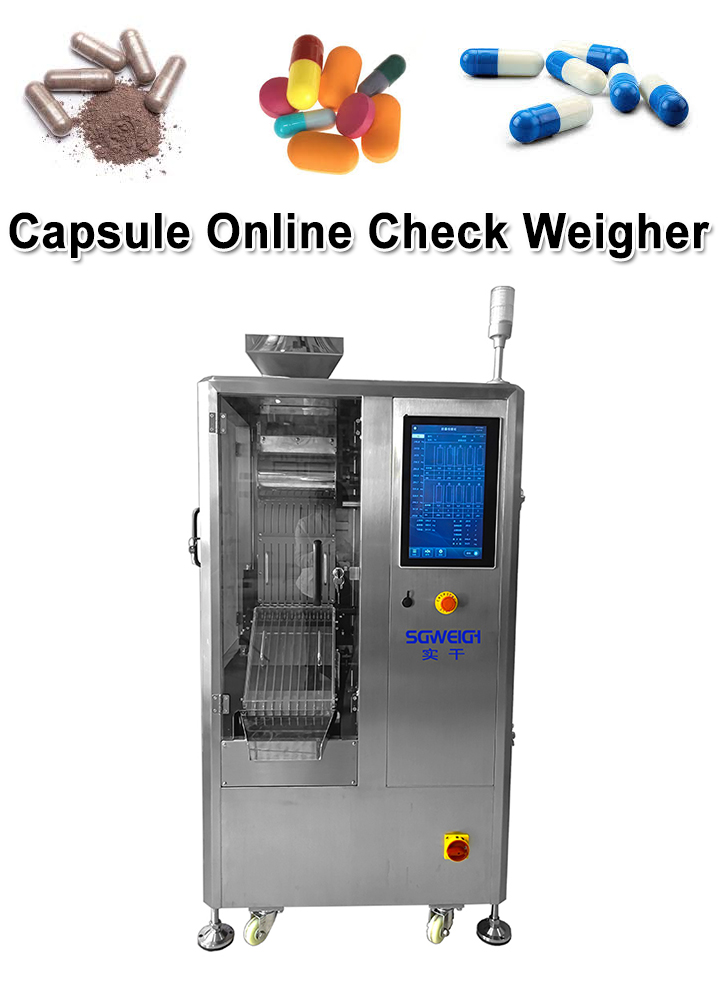

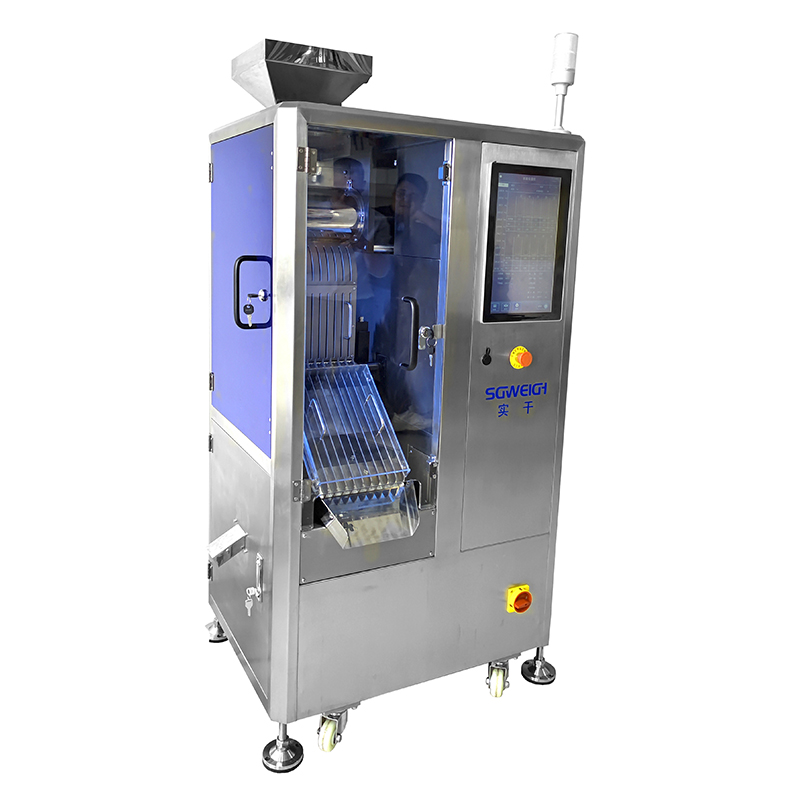

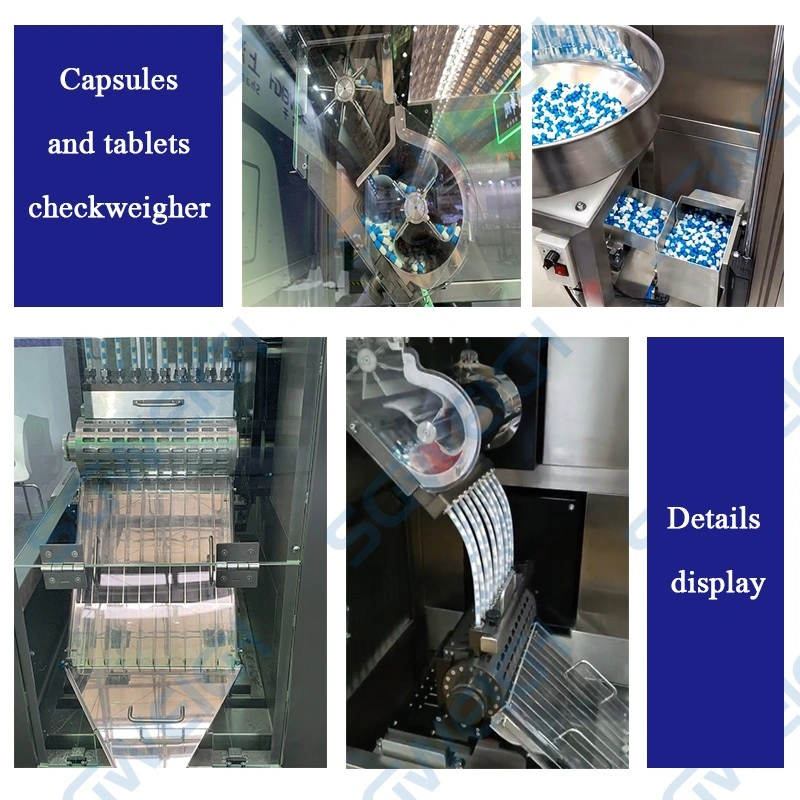

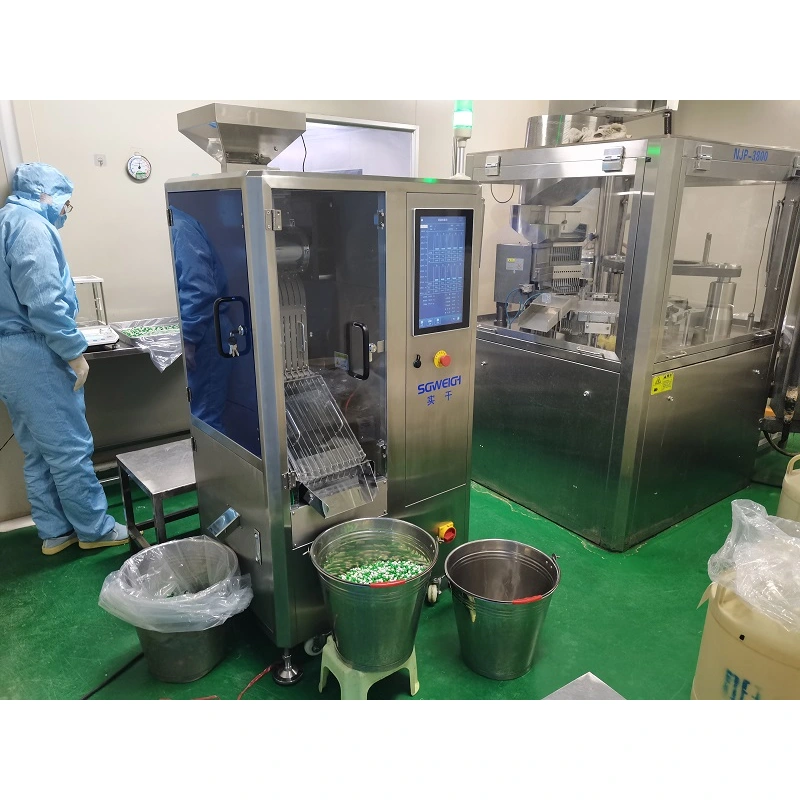

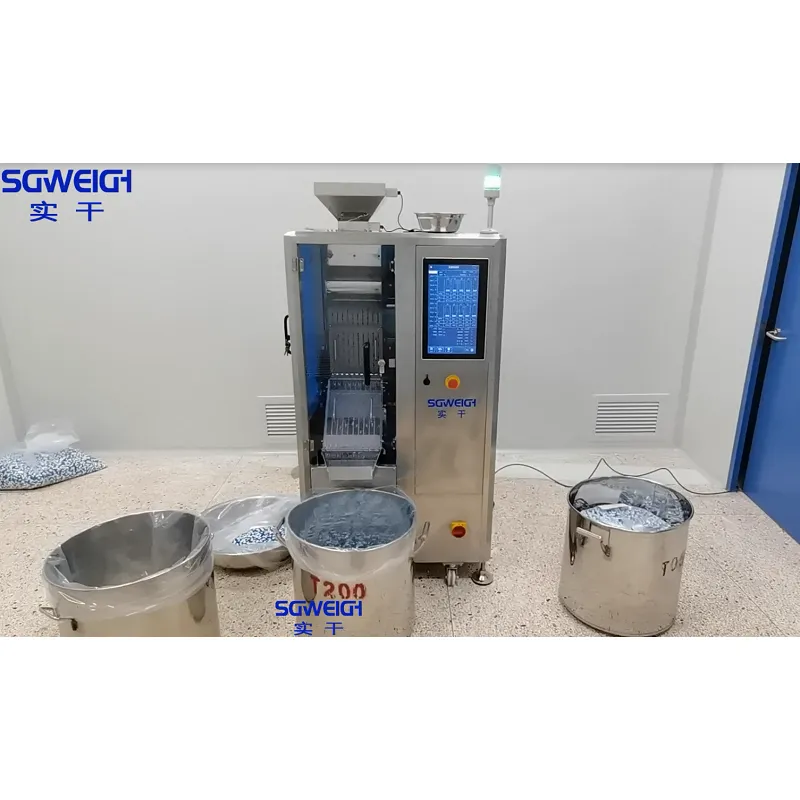

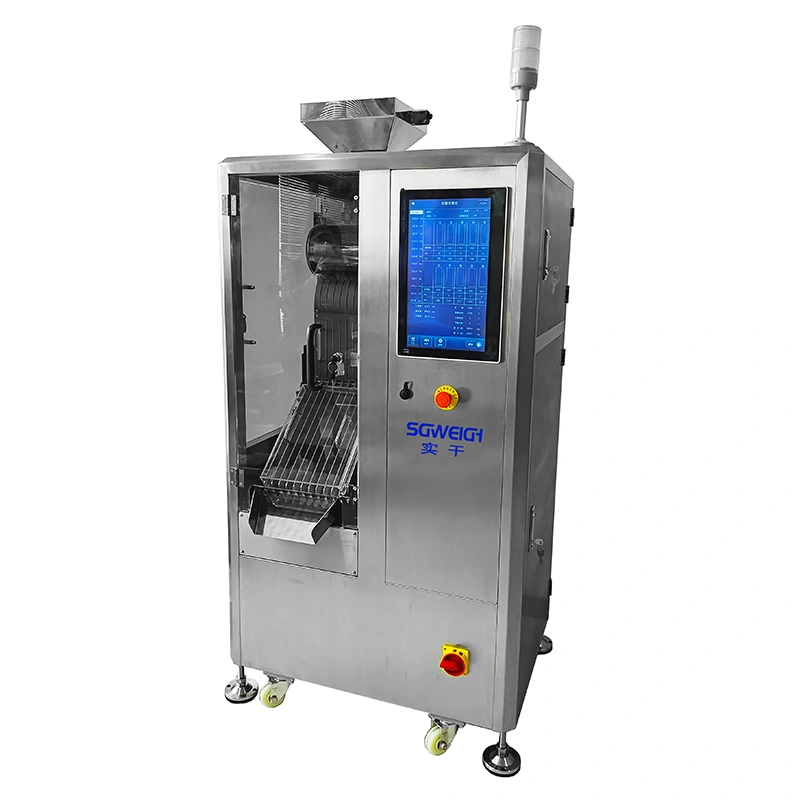

Ultra-fast Capsule Checkweigher is a piece of equipment used in the pharmaceutical industry to accurately weigh and sort capsules.Solid Pharmaceutical Checkweigher for Medical Industry ensures that capsules meet weight specifications, which is crucial for dosage accuracy and product quality. Checkweighers can also identify and reject unqualified capsules, improving production efficiency and reducing waste.
Type:SG-JN10/SG-JN20/SG-JN3O
Weighing scope:5-2000mg
Display scale:0.1mg
Highest sorting accuracy:±0.5mg
Product specification:Capsule-00#-5#/Wafer-Φ5.5-Φ18mm/Thickness-3-12mm/Pill-Φ5.5-Φ12mm(Other sizes or shapes subject to testing)
Highest sorting ability:75000 PCS/HR/150000 PCS/HR/230000 PCS/HR

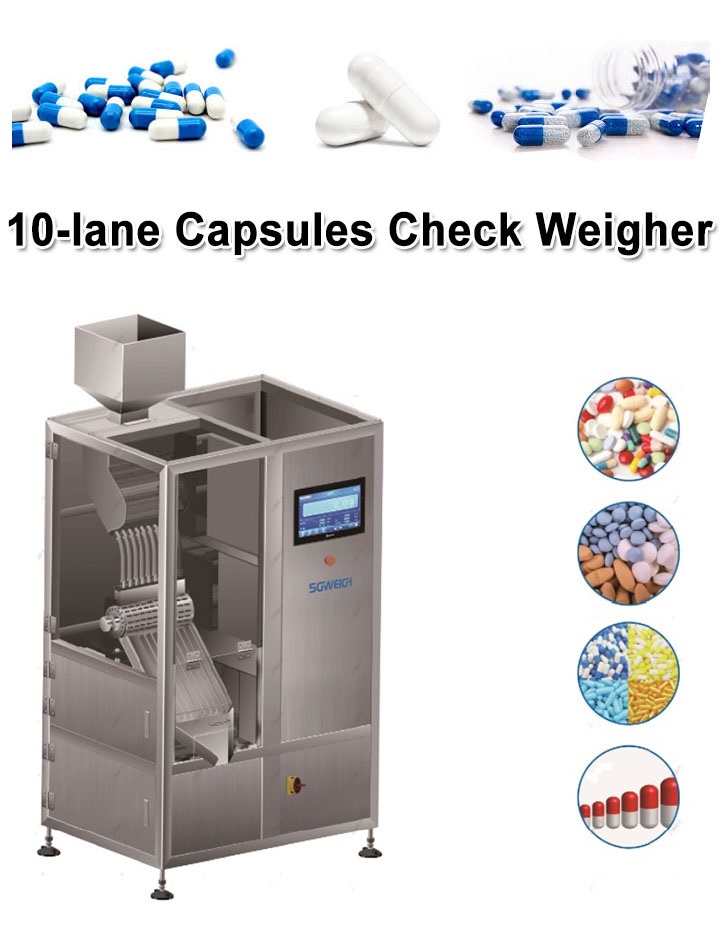

Number of columns:10 Columns/20 Columns/30 Columns
Power supply:AC-220V±10%, 50HZ
Compressed air:0.3-0.9Mpa
Use environment:15~30°C (The temperature change during use should not exceed the range of 1°C/h.Humidity:30-70%(but no condensation)
Weight of Machine :350kg/500kg/700kg
Shell material:SUS304
You can select the best suitable model depending on the production volume.
◎Large screen display, clear viewing, easy operation.
◎Default Chinese and English operation interface.
◎Applicable to conventional capsules and tablets.
◎Can actually display the relevant data of each channel.
◎Three-level operation authority management, support self-set password.
◎100 product formula preset storage.
◎Multi-channel product passing, improve production efficiency (customizable channel number).
◎Can ensure accurate inspection and reliably reject products with inappropriate weight.
Inner use the plastic wrapping ,out package will use stronger wooden cases.
Our standard package process:
1) Dust & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5) Packing Modules into Plywood Cases
6) Mark Shipping Mark In The Cases
If any special requirements, we will pack it as requested.
