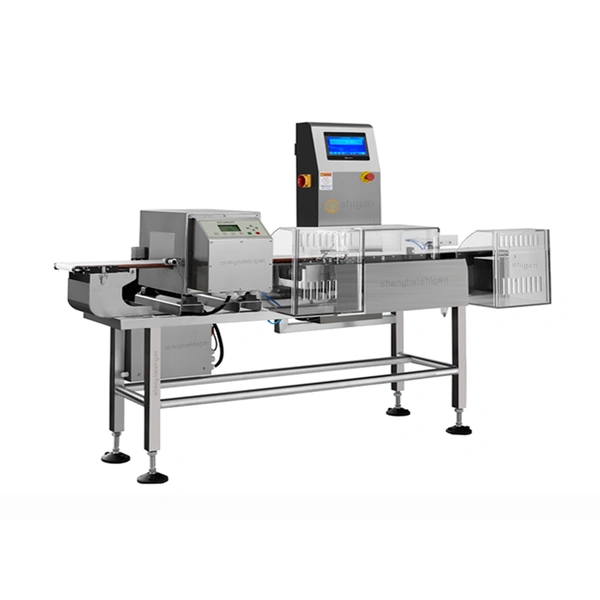

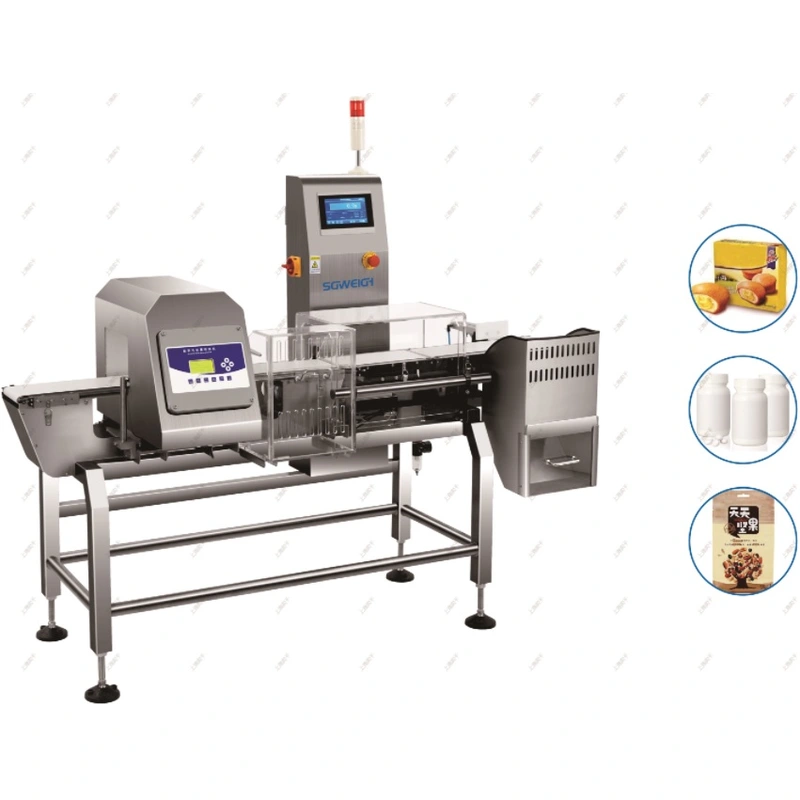

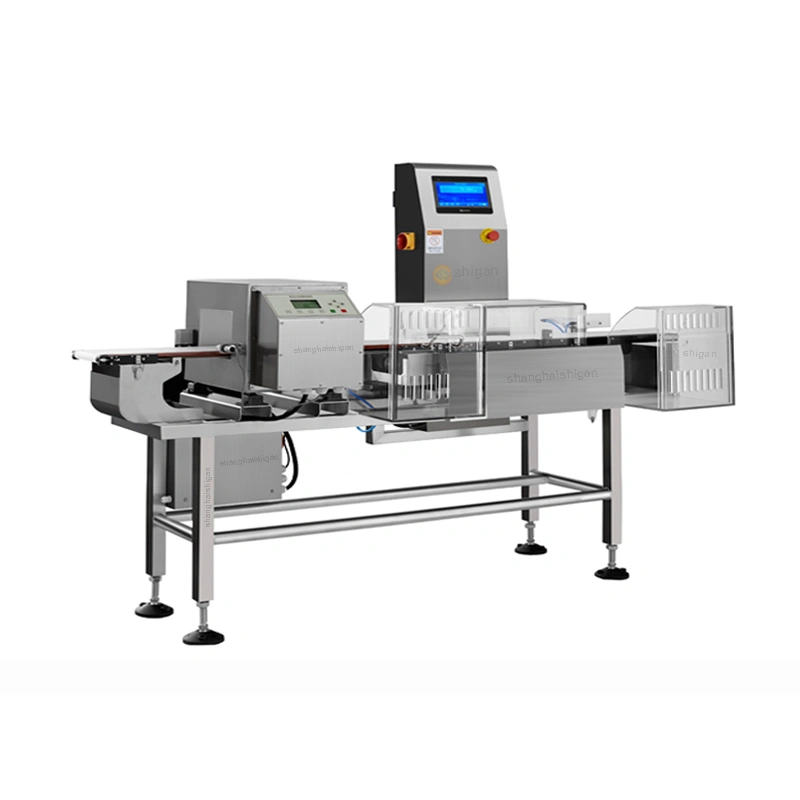

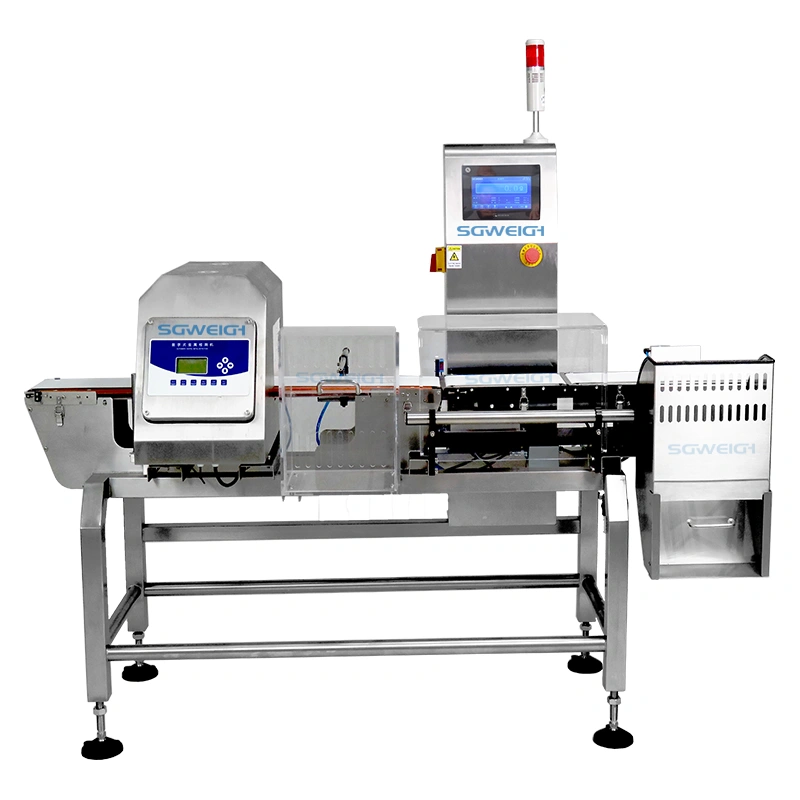

Waterproof Auto Online Combi Checkweigher And Metal Detector speeds things up and saves money. In one system, you get high precision weighing and metal detection. Reduce waste and increase safety compliance in a small footprint while minimizing false rejects.Combi Checkweigher And Metal Detector For Box/Pouch Performs best in the food and pharmaceutical industries.If you are interested in our products,please contact us!
Model: SG-JS150
Detection hole width: 150mm
Detection hole height: 100-200mm
Detection sensitivity:
H-100mm: Fe≥Φ0.8mm,SUS≥Φ1.2mm
H-120mm: Fe≥Φ0.8mm,SUS≥Φ1.8mm
H-150mm: Fe≥Φ1.2mm,SUS≥Φ2.0mm
H-200mm: Fe≥Φ1.5mm,SUS≥Φ2.5mm
Effective detection hole width: 150mm
Effective detection hole height: 100-200mm
Weighing range: 5-500g
Weighing accuracy: ±0.1g(Depends on products)
Conveyor belt height: 750mm (±50mm)
Conveying capacity: 10Kg/time
Delivery direction: from left to right
Maximum speed of conveyor belt: 25m/min
Conveyor belt material: food grade PU belt
Protection class: IP65
Display and operation mode: LED LCD flat button input
Machine weight: 240kg
Power requirements: AC220V 50HZ
Power: 300W

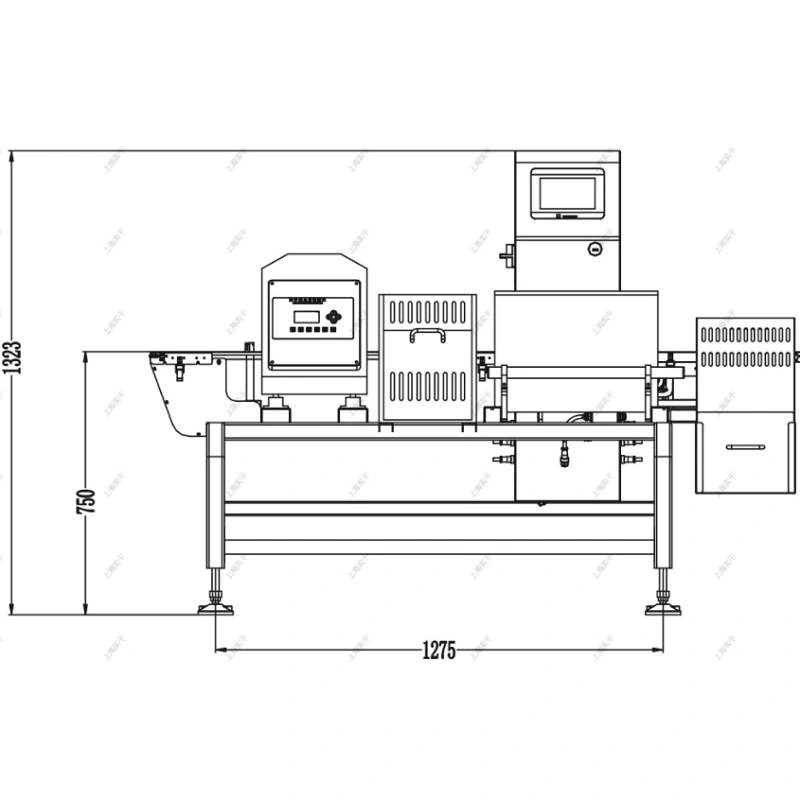

Dimensions: about L2267×W589×H1500mm (final design shall prevail)
1. It has an ingenious structure, takes up less space, is easy to connect to the production line, has high detection sensitivity and is easy to operate. It can save production line space to the maximum extent and achieve more quality control.
2. Advanced technology, applying the latest multi-frequency detection technology, automatic material effect elimination technology, automatic balancing technology, and adaptive adjustment technology, bringing the equipment the simplest operation, the best environmental suitability and stability in the industry.
3. All stainless steel shock-absorbing structure design and manufacture, to ensure long-term stability and service life.
4. Can record detection parameters suitable for 100 different products, avoiding detection errors due to manual differences and avoiding downtime for product replacement.
5. The low-power design and fully sealed design ensure the protection effect with the body structure, reaching the IP65 protection level and a service life of more than 15 years.
1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
Packing Detail:
1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
1.The products are real enough
Our company's goods are never faked, and each product is genuine, and we will tell you honestly, please rest assured to buy.
2.Integrity is high enough
Our company sincerely serves everyone and is a trustworthy businessman.
3. After-sale service is strong enough
Strictly implement the three-guarantee service, and the products sold can provide replacement and one-year warranty service due to their own quality problems (not human-made).
4.Entity management
Welcome to the company to trade, our company can sign a sales contract!
