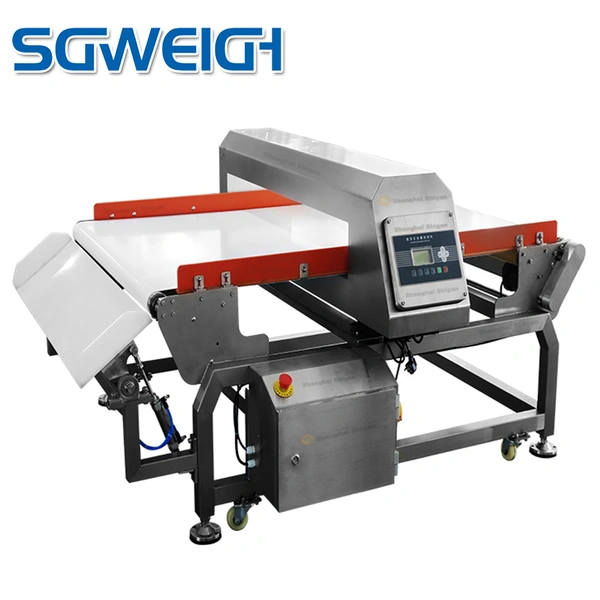

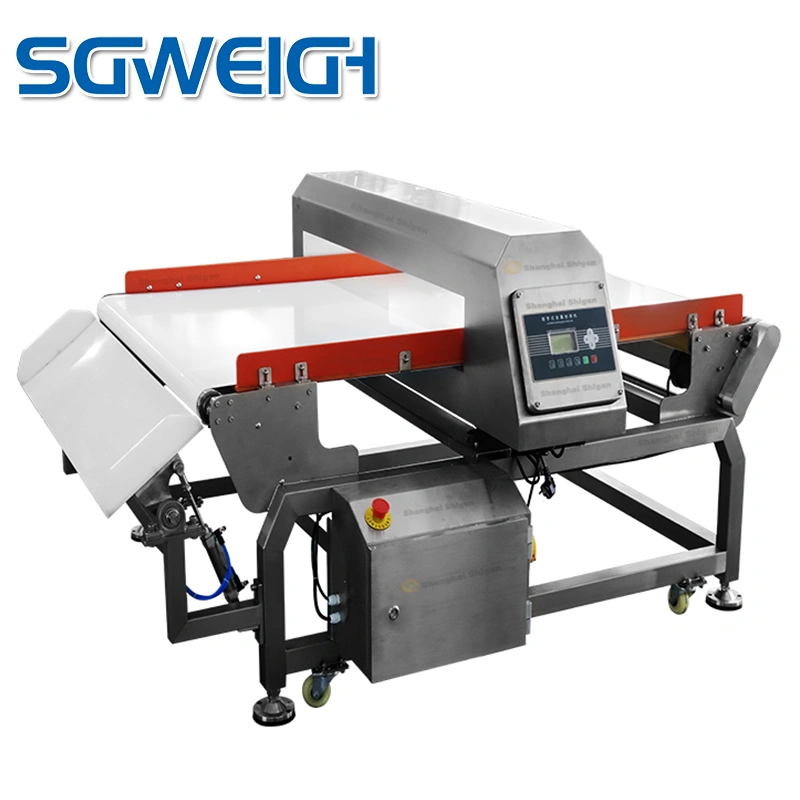

Available in a variety of widths and heights,Anti-Interference Intelligent Metal Detector Machine for Bulk Materials/Packaged Product are ideal for achieving the highest detection sensitivity to protect your products.
SG-M400
Detection sensitivity: in empty state
H-100mm: Fe≥Φ0.8mm, Non-Fe≥Φ1.5mm, SUS≥Φ1.5mm
H-120mm: Fe≥Φ0.8mm, Non-Fe≥Φ1.5mm, SUS≥Φ2.0mm
H-150mm: Fe≥Φ1.0mm, Non-Fe≥Φ1.5mm, SUS≥Φ2.0mm
H-200mm: Fe≥Φ1.2mm, Non-Fe≥Φ2.0mm, SUS≥Φ2.5mm
Effective detection hole width: 150-1000mm customized according to requirements
Effective detection hole height: 80-500mm customized according to requirements
Maximum speed of conveyor belt: 25m/min
Conveyor belt material: food grade PU belt
Protection class: IP65
Display and operation mode: LED falt key input
Machine weight: about 120kg
Power requirements: AC220V 50HZ
Power: 200W
Alarm mode: metal detection, alarm belt stop or automatic removal

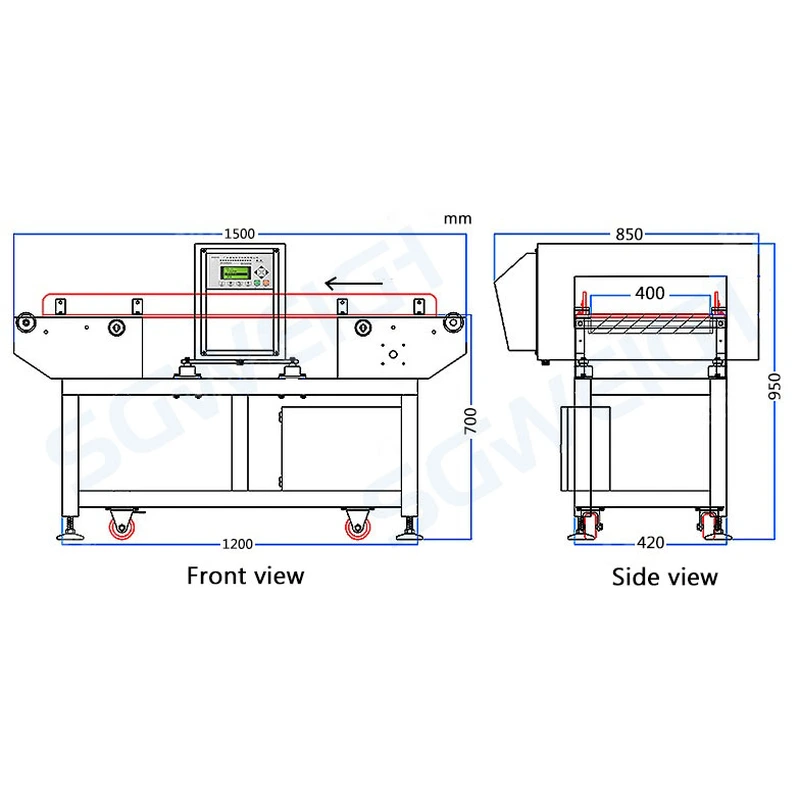

Dimensions: about L1500×W850×H950mm
For reference only, please consult for details!
Contact us to recommend a product that is suitable for you!
1) Used to detect magnetic and non-magnetic metals.
2) Suitable for bulk materials and packaging materials.
3) Conveyor belt delivery system.
4) Rejection method: If metal foreign matter is found, the belt will stop, and a buzzer will sound or it will be automatically removed.
5) Wide range of width, length and height for flexible selection.
6) Clean design, easy to clean.
7) Provide multiple solutions based on your operations, standards and food safety levels.
