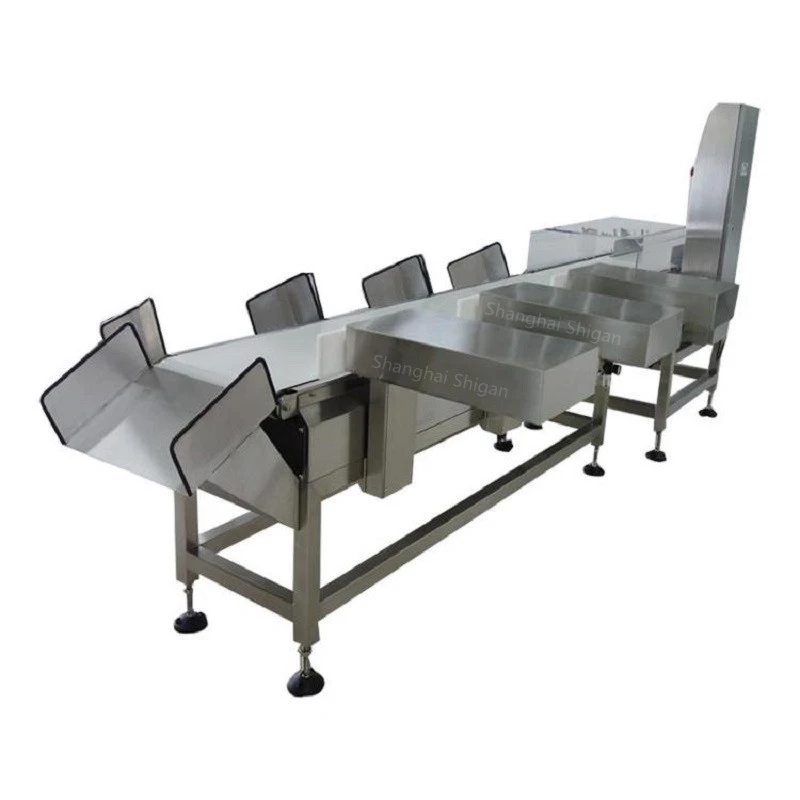

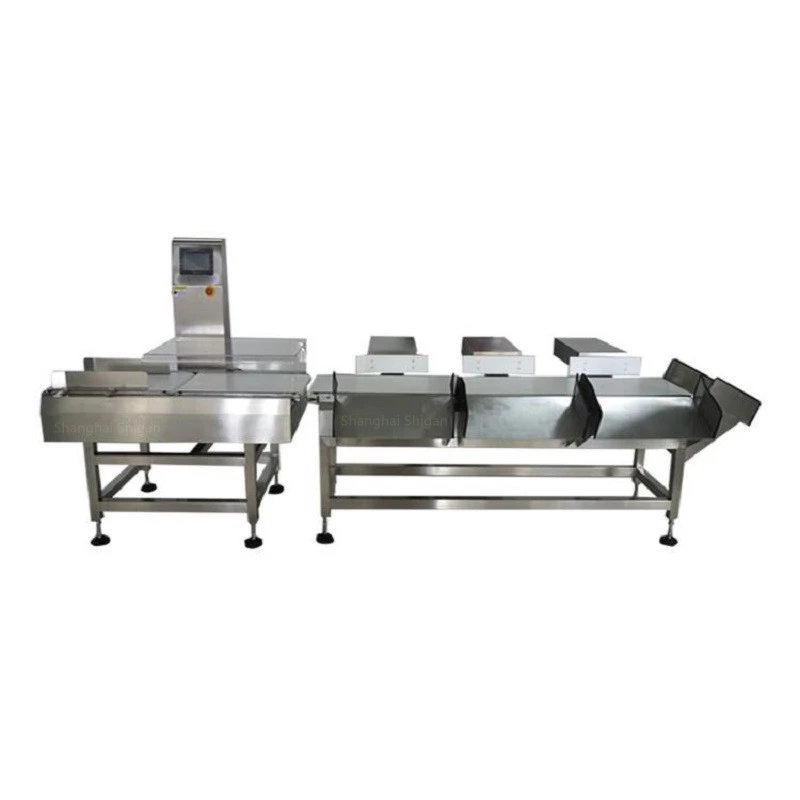

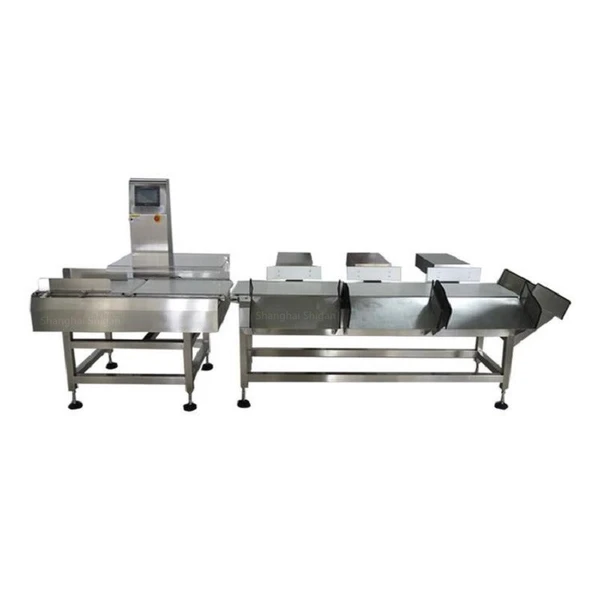

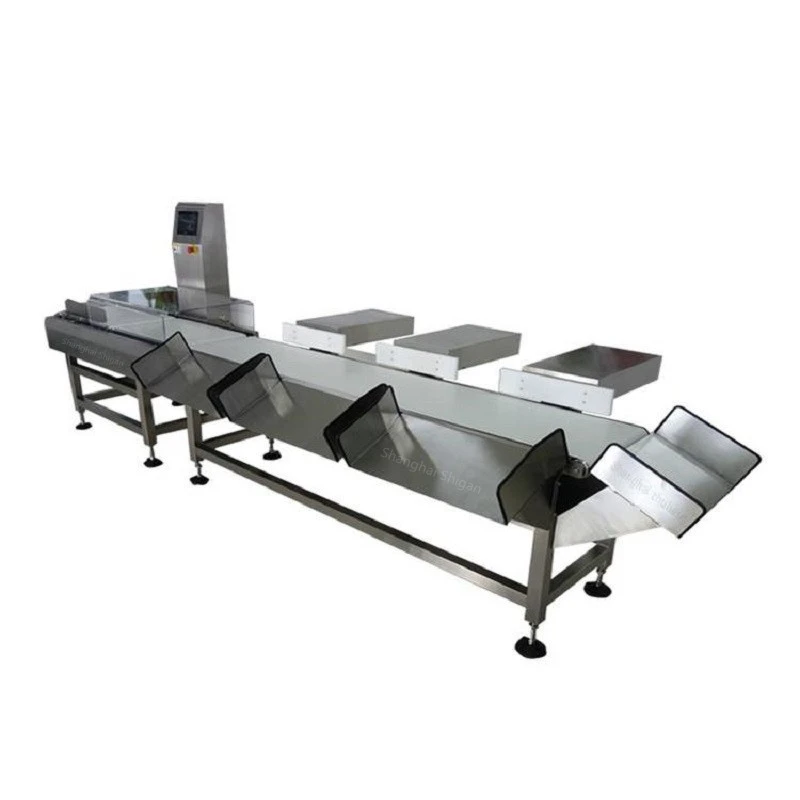

The Multi-level Sorting Checkweigher is mainly used to sort the grades or specifications of the poultry meat cut products according to their weights.Frozen meat products Multi-level Sorting Checkweigher can check the weight of the products on the assembly line at high speed and accurately.Picking,while saving labor costs,greatly improves the standardization of products,bringing more space for product premiums and bargaining power.If you are interested in our products,please contact us!
Type SG-D220
Weighing Range 10-1200g
Limited of product L: 200 W:150 H: 3-200mm
Accuracy ±0.2 Depends on product
Division Scale 0.1g
Belt Speed 0- 60 m/min
Max Speed 100 pcs/min
Belt Width 220mm
Machine Weight 60kg+44kg
Power Supply AC 110/220V ±10% 50HZ
Power 100W
Main Material SU304 stainless steel
The exterior is made of 304 stainless steel.
New highly integrated modular control system.
The belt forward and reverse sorting device can realize the overweight or underweight sorting.
According to the production situation, the parameters can be directly modified during operation, which is easy to operate.
The touch screen operation interface can set different weight, precision and selection range.
Multi-level Sorting Checkweigher for automatic weighing and sorting of frozen meat products is widely used in food, chemical, building materials and other industries and fields.
Shanghai Shigan Industrial Co., Ltd. is mainly engaged in the R&D and production of instruments.The company has introduced technology and production experience and has professional researchers in checkweigher equipment. It has complete mechanical processing equipment and strong technical force,which effectively solves many common problems.The company pays attention to technological transformation and the development of new products.
Our products can be shipped by sea, air and land.
1.Replacement within seven days, warranty within one year, and lifetime maintenance. Before the products are sold, we will go through strict inspection, and the products you sign for have no quality problems.
2.The products provided to customers are all produced by the original factory, and have factory data accessories.
3.During the warranty period, our company will repair the damaged parts due to quality reasons, and the damage of the parts outside the warranty period. The provided accessories only charge the cost. If the equipment is damaged due to human factors, the parts repaired or provided by our company are calculated at the cost.
