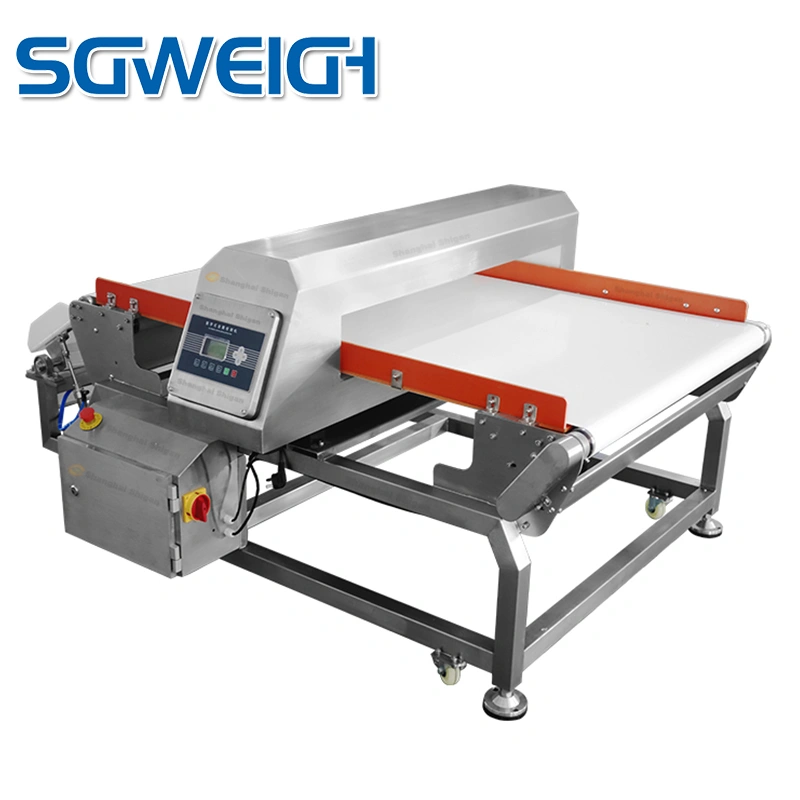

Digital Automatic Food Inspection Metal Detector with Conveyor is used in various industries.The sensor's size,stability and sensitivity make it an ideal detection solution for any application.Customizable and can be individually adapted to the requirements of the corresponding production environment.Welcome to consult for quotation information !
Detection sensitivity: in empty state
H-100mm: Fe≥Φ0.8mm, Non-Fe≥Φ1.5mm, SUS≥Φ1.5mm
H-120mm: Fe≥Φ0.8mm, Non-Fe≥Φ1.5mm, SUS≥Φ2.0mm
H-150mm: Fe≥Φ1.0mm, Non-Fe≥Φ1.5mm, SUS≥Φ2.0mm
H-200mm: Fe≥Φ1.2mm, Non-Fe≥Φ2.0mm, SUS≥Φ2.5mm
Effective detection hole width: 150-1000mm customized according to requirements
Effective detection hole height: 80-500mm customized according to requirements
Maximum speed of conveyor belt: 25m/min
Conveyor belt material: food grade PU belt
Protection class: IP65
Display and operation mode: LED falt key input
Machine weight: about 120kg
Power requirements: AC220V 50HZ
Power: 200W
For reference only, please consult for details!
Contact us to recommend a product that is suitable for you!
1) Used to detect magnetic and non-magnetic metals.
2) Suitable for bulk materials and packaging materials.
3) Conveyor belt delivery system.

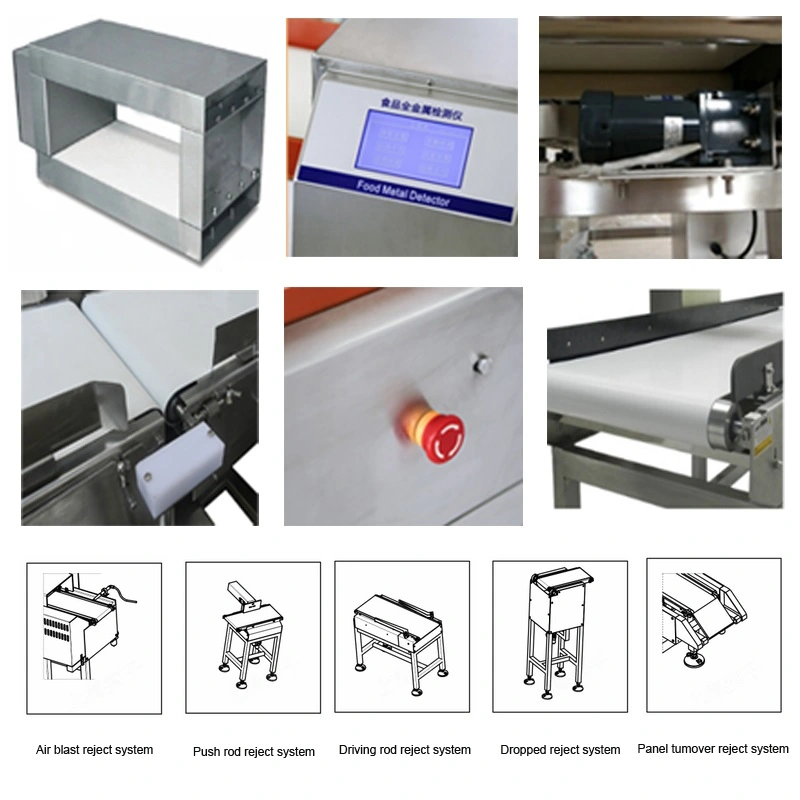

4) Rejection method: If metal foreign matter is found, the belt will stop, alarm or automatic removal.
5) Wide range of width, length and height for flexible selection.
6) Clean design, easy to clean.
7) Provide multiple solutions based on your operations, standards and food safety levels.
1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
Packing Detail:
1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
