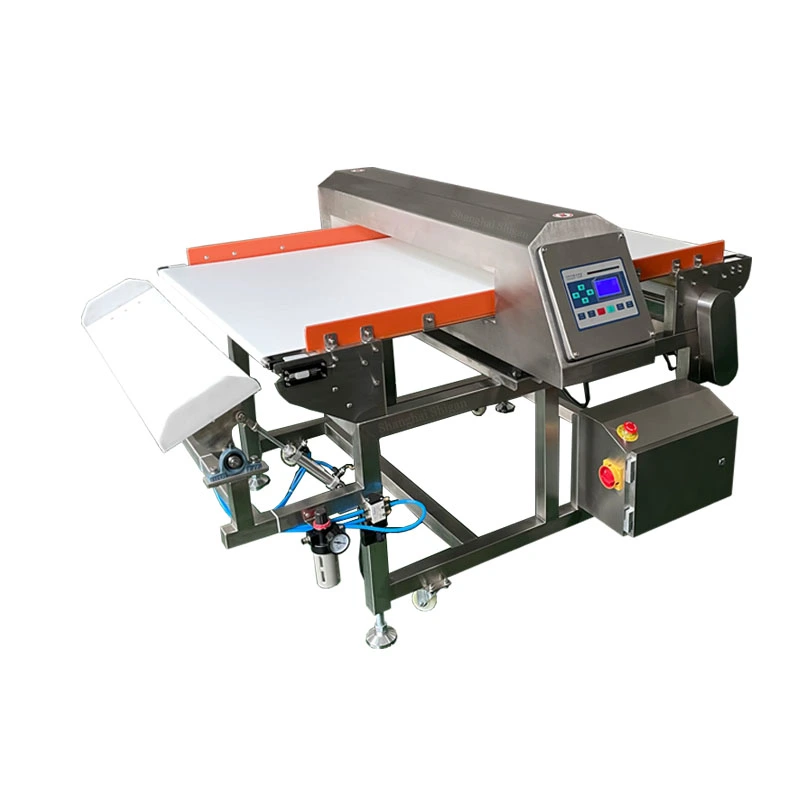

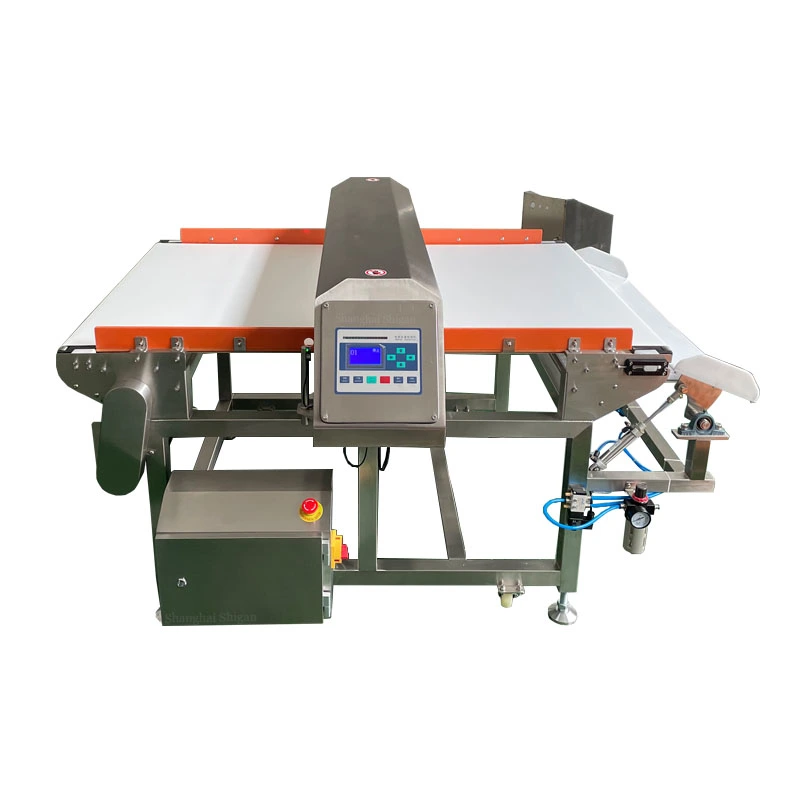

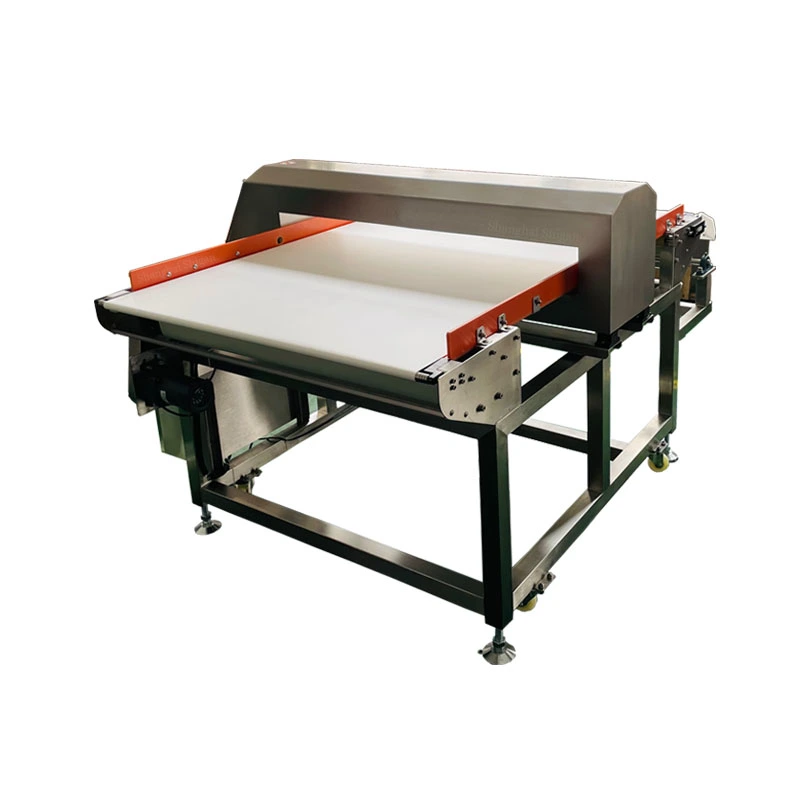

Factory Conveyor Belt Industrial Metal Detector, which can detect metal foreign objects, adopts European and American standard design, the whole machine design meets the requirements of food machinery, and is suitable for connecting assembly line detection operations.The Metal Detector Machine For Shoes realizes the full digitalization and intelligence of metal detection technology, with excellent performance and easy operation. It is simple and improves the production efficiency of the enterprise.
Metal detector detection method: electromagnetic induction
Detection sensitivity: Fe￠0.6mm
Detection surface width: 400mm detection height 100mm
Alarm mode: buzzer, reject mode
Conveying speed: 25m/min (50HZ)
Power supply: AC220V/380V 50-60HZ
Power: About 200W
Dimensions: 1800mm(L)*680mm(W)*850mm(H)
1. It can detect the quality of magnetic and non-magnetic metal miscellaneous protection products.
2. It can automatically learn products with relatively large effects, and adjust and compensate internal parameters according to the size of the product effects, so as to achieve safe product passing and detectable metal impurities.
3. 100 kinds of product parameters can be memorized, and the name of the memorized product can be changed, so that it is convenient to find the corresponding product parameters in many products at any time.
4. The probe coil is fully sealed with glue, so as to improve the anti-interference ability to the outside world and reduce false alarms caused by external metal movement.
5. Anti-vibration, anti-noise performance, and temperature change, can adapt to harsh working environment.
6. The stable stainless steel probe and conveying frame adopt a fully welded "open structure" to meet hygienic requirements.
7. Conveyor belts are available in food grade and non-food grade.
1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases
Packing Detail:
1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
★Pre-sales
project design,performance introduction,technical agreement,contract signing,production testing and we can customized production according to your requirements.
★In-sales
we will provide you with the latest process in the product assembly,packing and transportation.
★Installation
◎We provide videos and instruction manual to show the process of installation.
◎We provide training for installation for free in our factory.
◎We can send technician to buyer's factory to install the machine and provide training service.
★After-sales
◎ For our machines, we will provide some spare parts and easy broken parts free of charge when delivering.
◎We will have one year free warranty period. During warranty period, if there is any malfunction for the machine, we will try our best to solve the problem within 24 hours. If there are some spare parts needed to be replaced, we will provide the spare parts for free. Beyond warranty, we will charge the cost price for spare parts.
