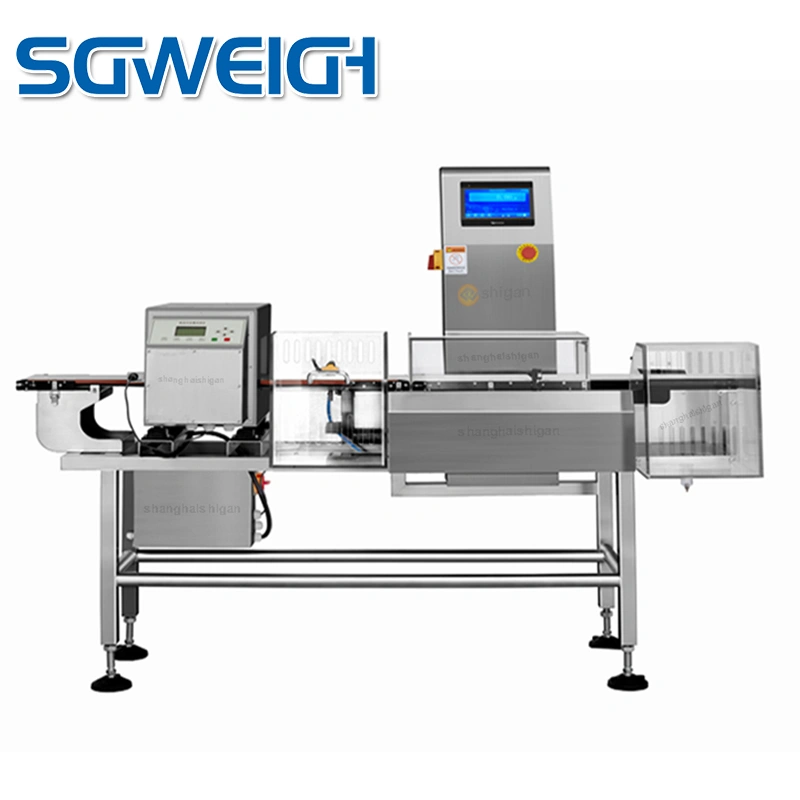

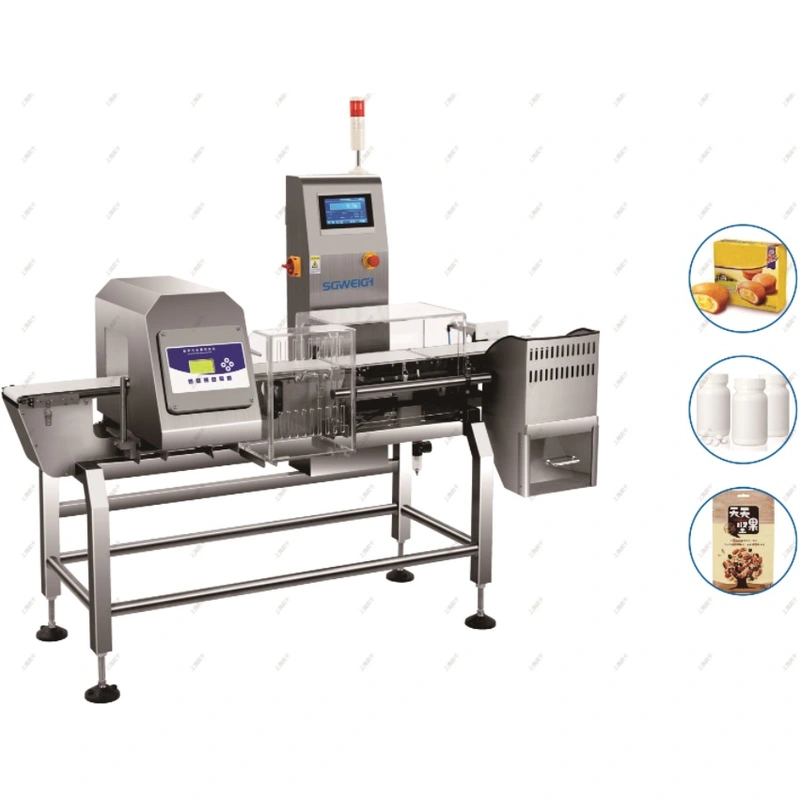

SG-JS150 Professional Combo Metal Detector & Checkweigher is a specialized piece of equipment used in various industries, particularly in food processing and pharmaceutical manufacturing.This combination system serves two primary functions: checking the weight of a product and detecting the presence of metal contaminants within that product.Welcome to consult for quotation information !
Model: SG-JS150
Detection hole width: 150mm
Detection hole height: 100-200mm
Detection sensitivity:
H-100mm: Fe≥Φ0.8mm,SUS≥Φ1.2mm
H-120mm: Fe≥Φ0.8mm,SUS≥Φ1.8mm
H-150mm: Fe≥Φ1.2mm,SUS≥Φ2.0mm
H-200mm: Fe≥Φ1.5mm,SUS≥Φ2.5mm
Effective detection hole width: 150mm
Effective detection hole height: 100-200mm
Weighing range: 5-500g
Weighing accuracy: ±0.1g(Depends on products)
Conveyor belt height: 750mm (±50mm)
Conveying capacity: 10Kg/time
Delivery direction: from left to right
Maximum speed of conveyor belt: 25m/min
Conveyor belt material: food grade PU belt
Protection class: IP65
Display and operation mode: LED LCD flat button input
Machine weight: 240kg
Power requirements: AC220V 50HZ
Power: 300W

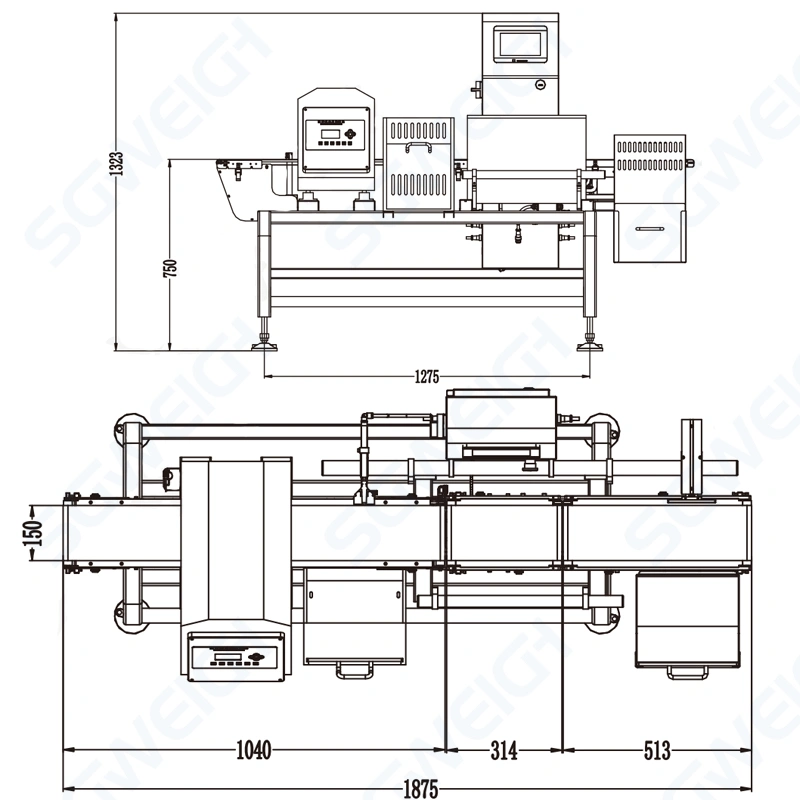

Dimensions: about L2267×W589×H1500mm (final design shall prevail)
1.Efficiency:
Combining both functions into a single system streamlines the production process and reduces the need for multiple separate machines.
2.Compliance:
Helps manufacturers meet regulatory standards by ensuring product weight accuracy and minimizing the risk of metal contamination.
3.Cost-Effective:
While initial costs may be higher than individual systems, the overall efficiency and benefits of a combined system can lead to cost savings in the long run.
4.Product Variability:
The system should be adaptable to handle a variety of product sizes and weights.
5.Sensitivity:
The metal detector should be sensitive enough to detect small metal contaminants.
6.Integration with Production Line:
Seamless integration with the existing production line is crucial for maintaining workflow efficiency.
1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
Packing Detail:
1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
1.The products are real enough
Our company's goods are never faked, and each product is genuine, and we will tell you honestly, please rest assured to buy.
2.Integrity is high enough
Our company sincerely serves everyone and is a trustworthy businessman.
3. After-sale service is strong enough
Strictly implement the three-guarantee service, and the products sold can provide replacement and one-year warranty service due to their own quality problems (not human-made).
4.Entity management
Welcome to the company to trade, our company can sign a sales contract !
