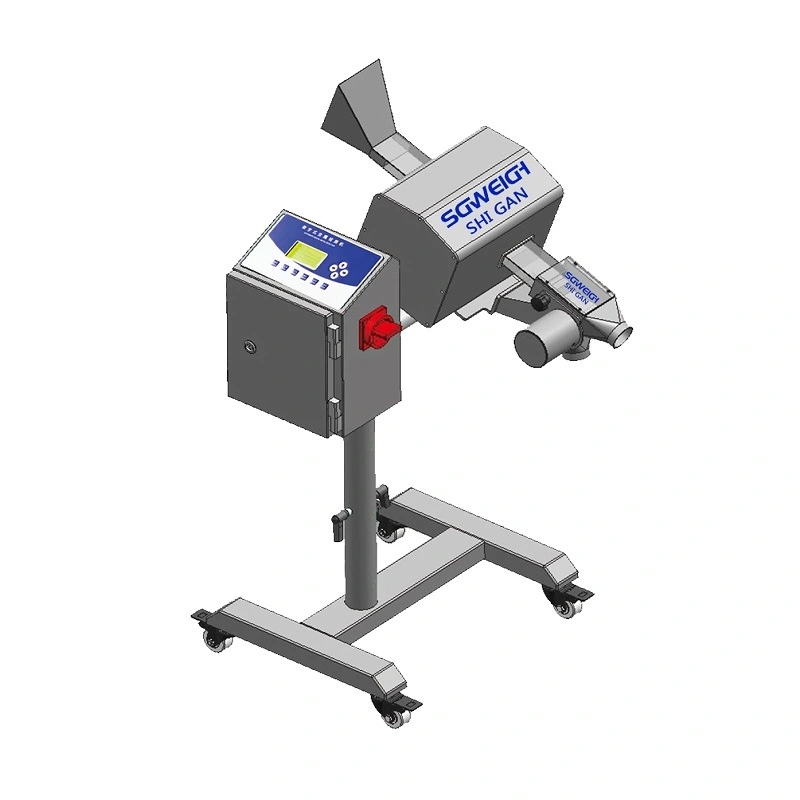

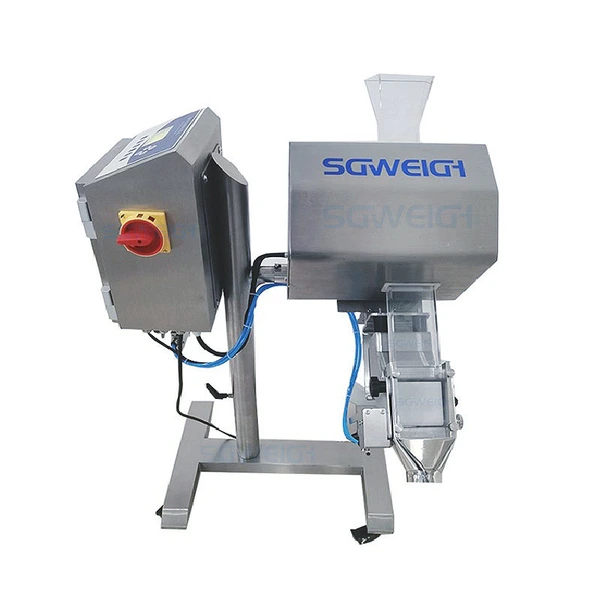

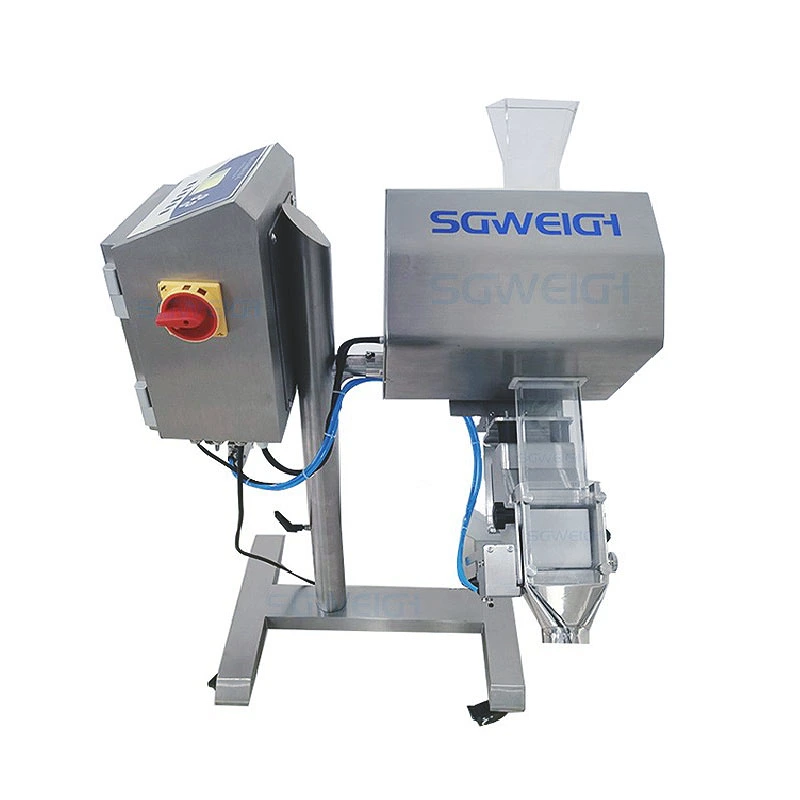

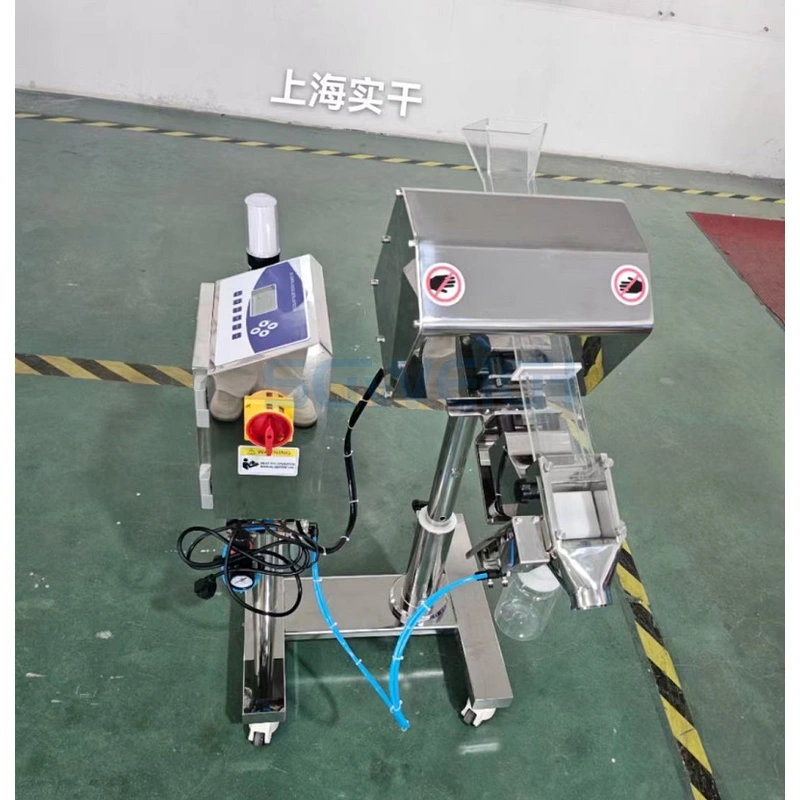

Metal Detector is a specialized Pharmaceutical Metal Detector that aims to detect and reject metal within tablets, capsules or granules.
Outfitted with imported control system which is of high precision, high sensitivity and high stability, this machine can be applied to detecting and removing magnetic and non-magnetic metal foreign bodies in tablets and capsules, and even small metal chips and metal wires embedded in the product.
The Tablets Capsules Pills Metal Detector can detect 100% of running materials, reduce material loss, avoid drug pollution caused by metal foreign bodies, and keep the pollution to the lowest limit.
Type:SG-M50
Feed port height and size: Height: 770-930mm Feed port size: 76mm
Height and size of outlet: Height: 770-860mm Size of outlet: 51mm
Effective passing size: W70*H20mm
Maximum production capacity: 500,000 pcs/hour
Sensitivity(adjustable or not):Yes
Detection sensitivity: Fe: 0.4mm, stainless steel: 0.6mm
Machine weight: 75kg
Removal method: flip culling
Working voltage: 220V/110V, 50/60HZ
1.Suitable for detecting and separating magnetic and non-magnetic metals in tablets and capsules.

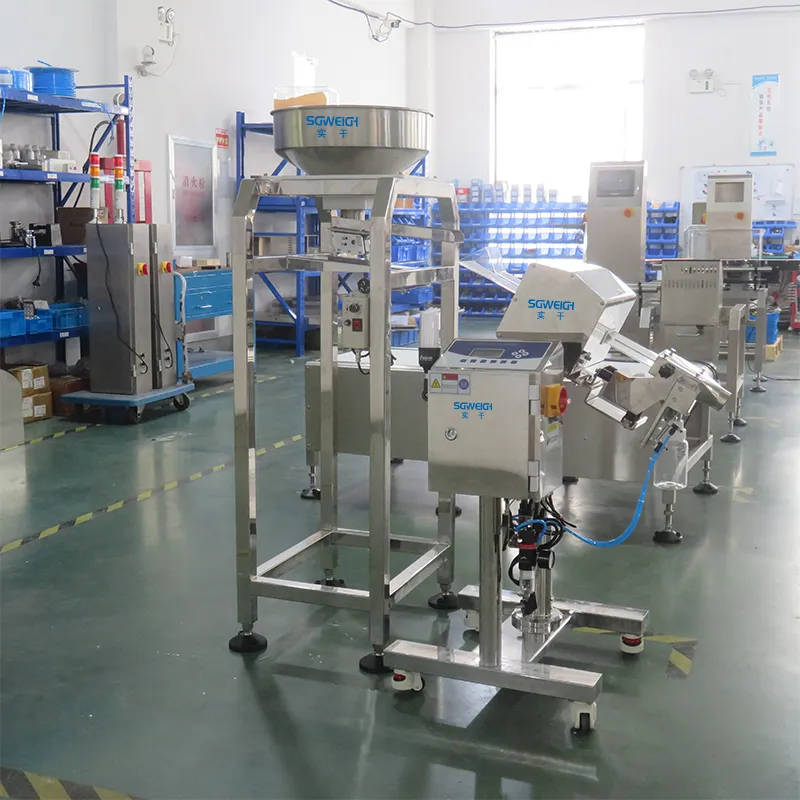

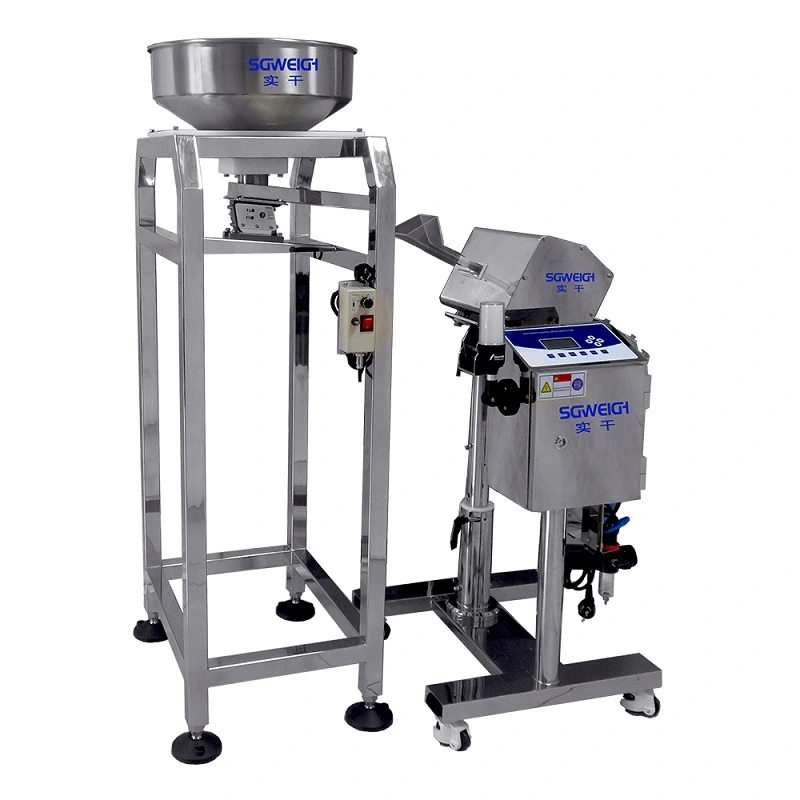

2.t can be used with tablet press machine, capsule filling machine and tablet sieving machine, or used alone, easy to adapt to the site.
3.Elimination method: minimize material loss with electromagnet control flap fast automatic elimination to keep normal production.
4.Modular structure: system control box, detection probe, eliminate structure, frame completely separated, easy replacement and maintenance.
5.Use the latest microprocessor control system, with automatic learning setting function.
Inner use the plastic wrapping ,out package will use stronger wooden cases.
Our standard package process:
1) Dust & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5) Packing Modules into Plywood Cases
6) Mark Shipping Mark In The Cases
If any special requirements, we will pack it as requested.
