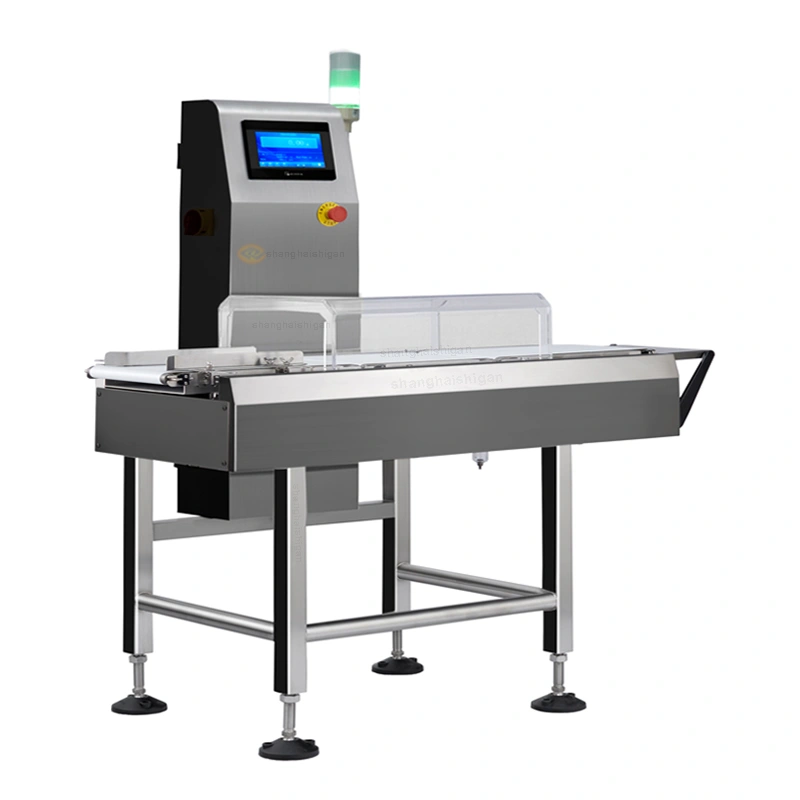

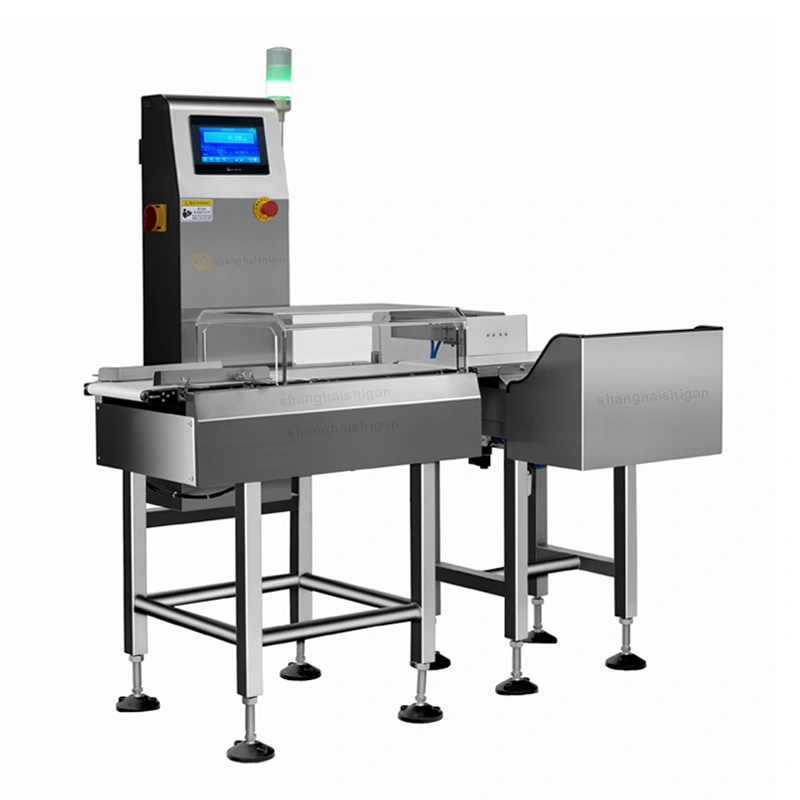

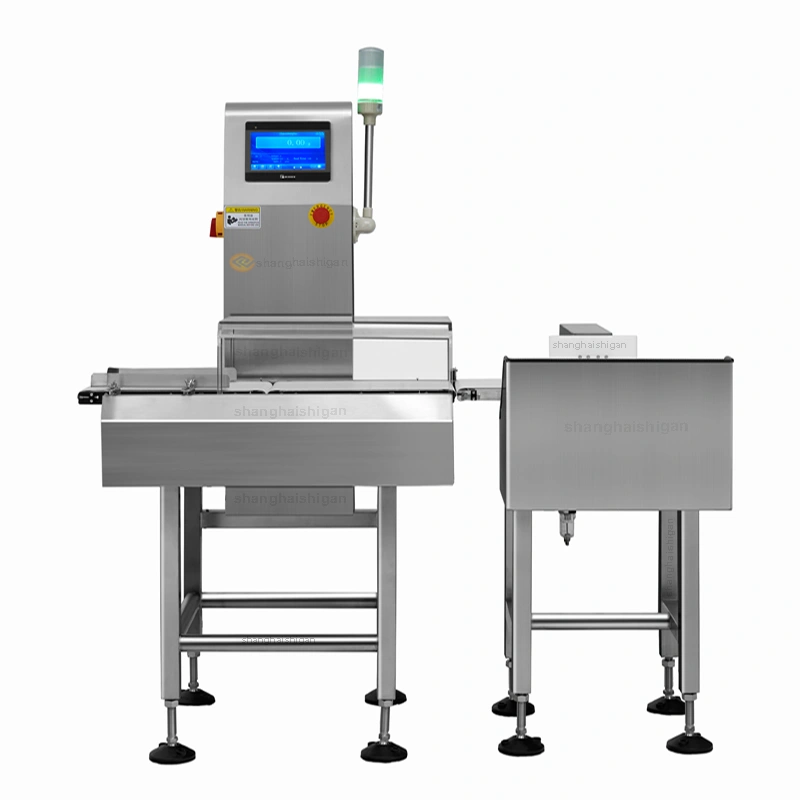

The Strong Stability Checkweigher adopts advanced weighing technology, simple design, economical and affordable, and ensures stable and reliable checkweighing accuracy and speed. It can detect overweight and underweight unqualified products in the production line in real time and online. Dedicated 10-inch color LCD display, beautiful and simple operation interface. At the same time,Strong Stability Checkweigher can also count and display production data, and the optional USB data interface can export the weight data of each product to the computer, which can be used for product quality analysis and production management.Welcome to consult for quotation information!
Type SG-220
Weighing Range 5-1500g
Limited of product L: 300 W:220 H: 3-200mm
Accuracy ±0.2g Depends on product
Division Scale 0.1g
Belt Speed 0- 60 m/min
Max Speed 100 pcs/min
Belt Width 220mm
Machine Weight 60kg+44kg
Power Supply AC 110/220V ±10% 50HZ
Power 100W
Main Material SU304 stainless steel
For reference only, please consult for details!
Contact us to recommend a product that is suitable for you!
1. Easy to integrate: adjustable height, modular design
2. Sturdy and durable structure: stainless steel 304 Easy to use: touch screen operating system
3. Easy to use, with user password protection
4. Easy to clean: The detachable strap is easy to remove for cleaning and setting.
5. Variable speed: the speed can be configured according to the application
6. High speed and accuracy: Equipped with advanced sensors and load cells, equipped with ultra-fast processor, it has excellent accuracy and speed
7. Zero Tracking: Manual and automatic calibration for improved accuracy
8. Report and data export: built-in - real-time report, can be exported as Excel file, can store 1 year's production data in U disk
9. Connectivity: Standard port for data export and connection to PC
10. Self-learning: No calibration required, the system will find the best settings for the product. Configurable up to 2000 product settings
11. Different detection modes: default mode, static mode, power saving mode
12. Fault report: The system can detect and report the faulty parts of the system, which is convenient for diagnosing problems
13. Output port: RS-485 and RS-232, can connect printer and labeling machine
Widely used in fruit and vegetable, seafood, fishery, poultry, pharmaceutical, daily necessities, logistics, chemical and other industries.
Our products can be shipped by sea, air and land.
1.Replacement within seven days, warranty within one year, and lifetime maintenance. Before the products are sold, we will go through strict inspection, and the products you sign for have no quality problems.
2.The products provided to customers are all produced by the original factory, and have factory data accessories.
3.During the warranty period, our company will repair the damaged parts due to quality reasons, and the damage of the parts outside the warranty period. The provided accessories only charge the cost. If the equipment is damaged due to human factors, the parts repaired or provided by our company are calculated at the cost.
