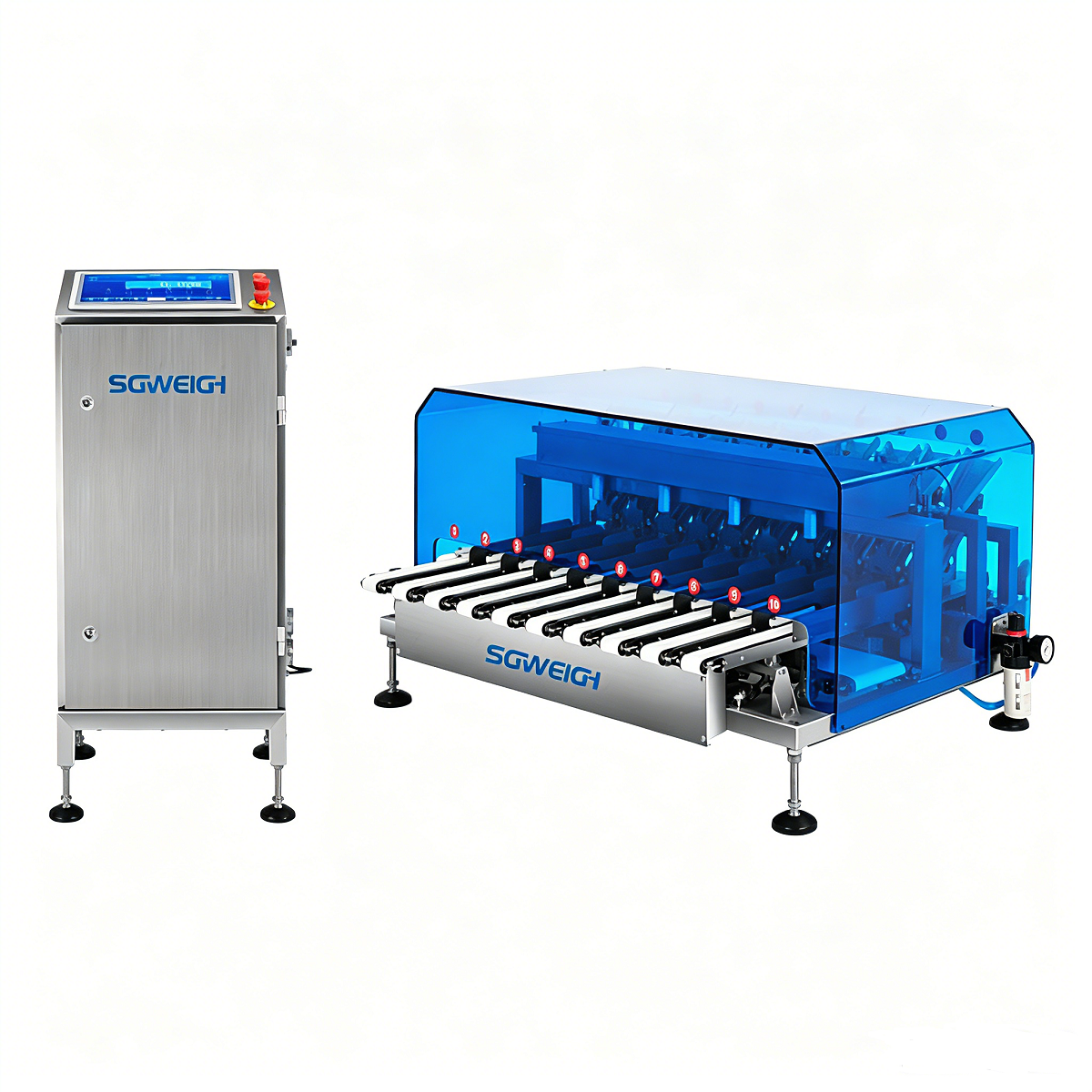

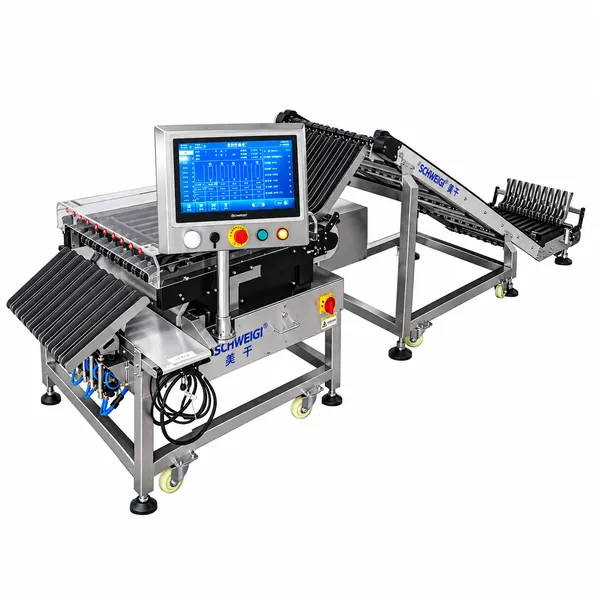

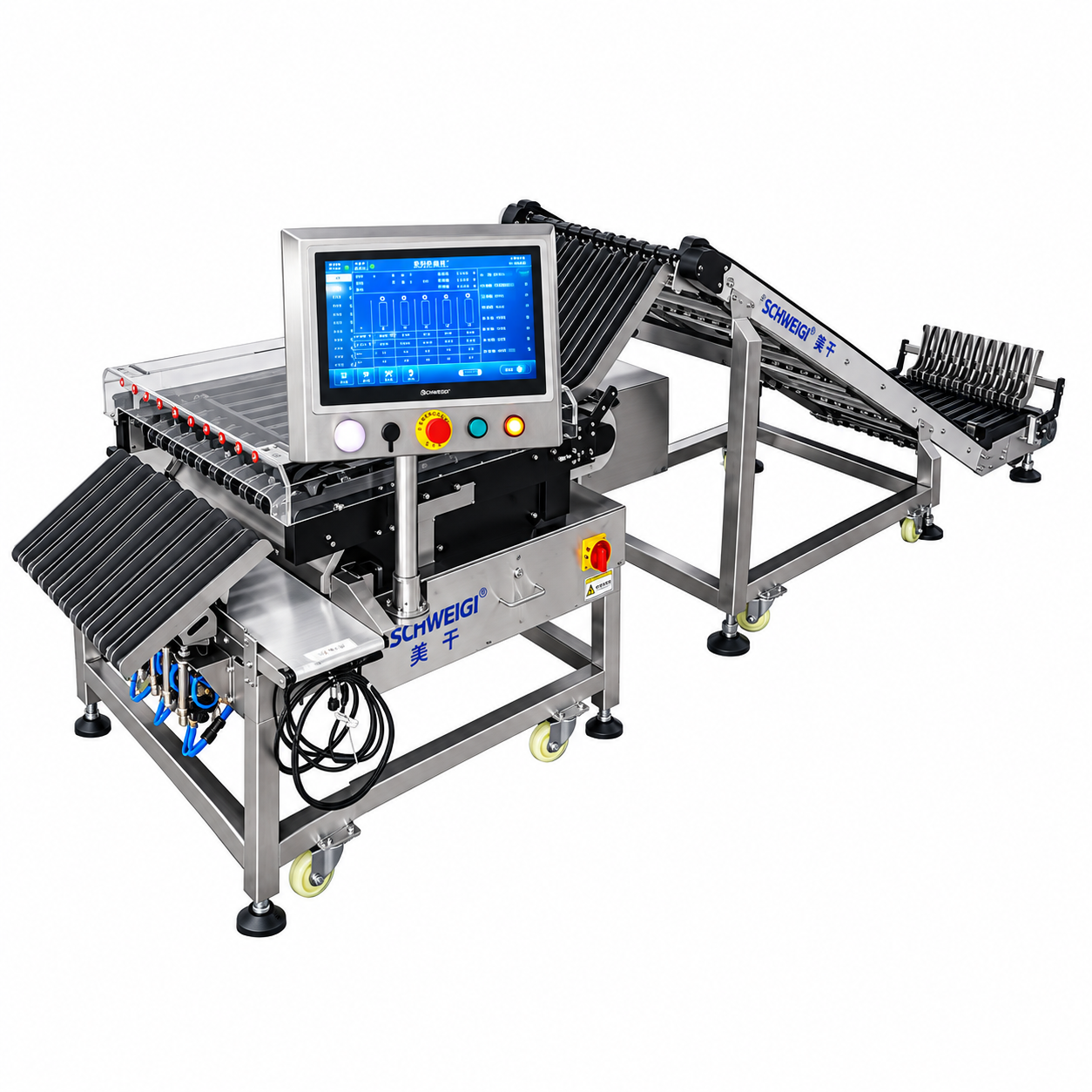

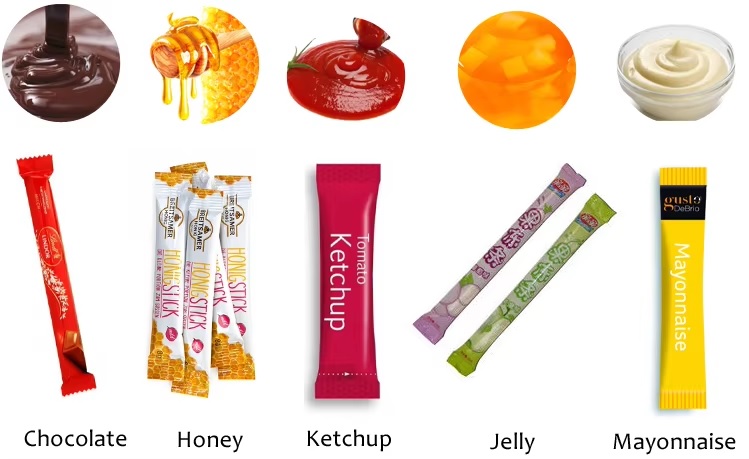

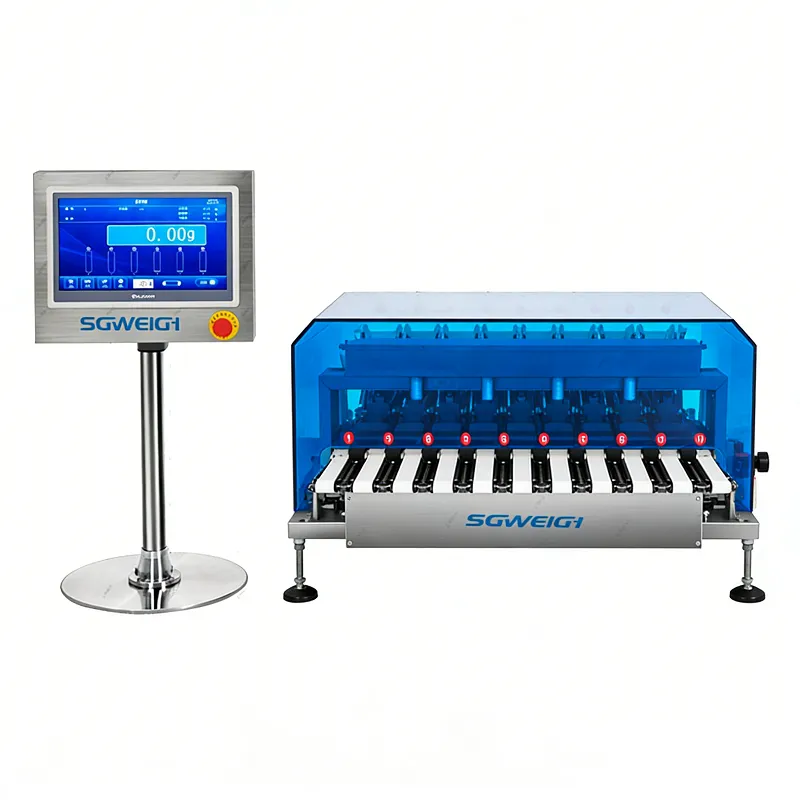

The Multi-Lane Stick Pack Checkweigher is designed for automatic weight inspection of small bags, stick packs, sachets, and other individually packed products on high-speed multi-lane production lines. Each lane is equipped with an independent weight detection system, allowing products from different lanes to be weighed and monitored separately.
The system continuously checks the weight of each product and compares the measured value with the preset target weight and tolerance range. Products outside the specified weight limits can be automatically rejected, helping manufacturers identify underweight, overweight, or missing-product packages during production.
Type:SG-10X
Weighing Range:1-30g
Minimum Scale:0.01g
Sorting Speed:Maximum 70 pieces/min (one channel)
Conveying Speed:20-100m/min
Control Interface:10.4” to 15” Full-Color Industrial Touchscreen HMI
Conveying Direction:Can be placed according to the actual situation on site
Elimination Method:Lifting Rejection
Machine Structure:Stainless steel (SUS304/316)
Power Supply:220V 50-60HZ
Power:About 1000W
Windshield:Thick acrylic (to avoid airflow interference)

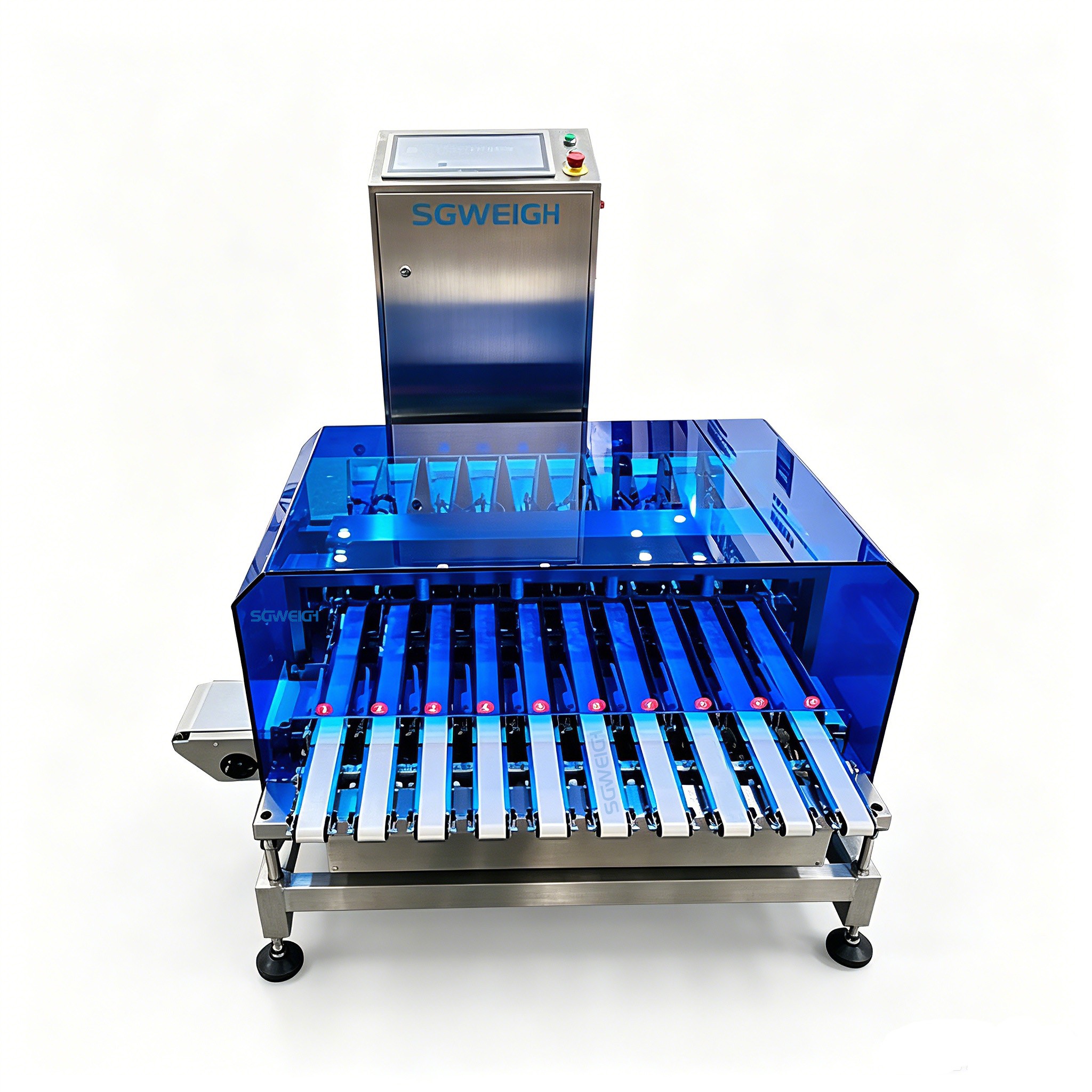

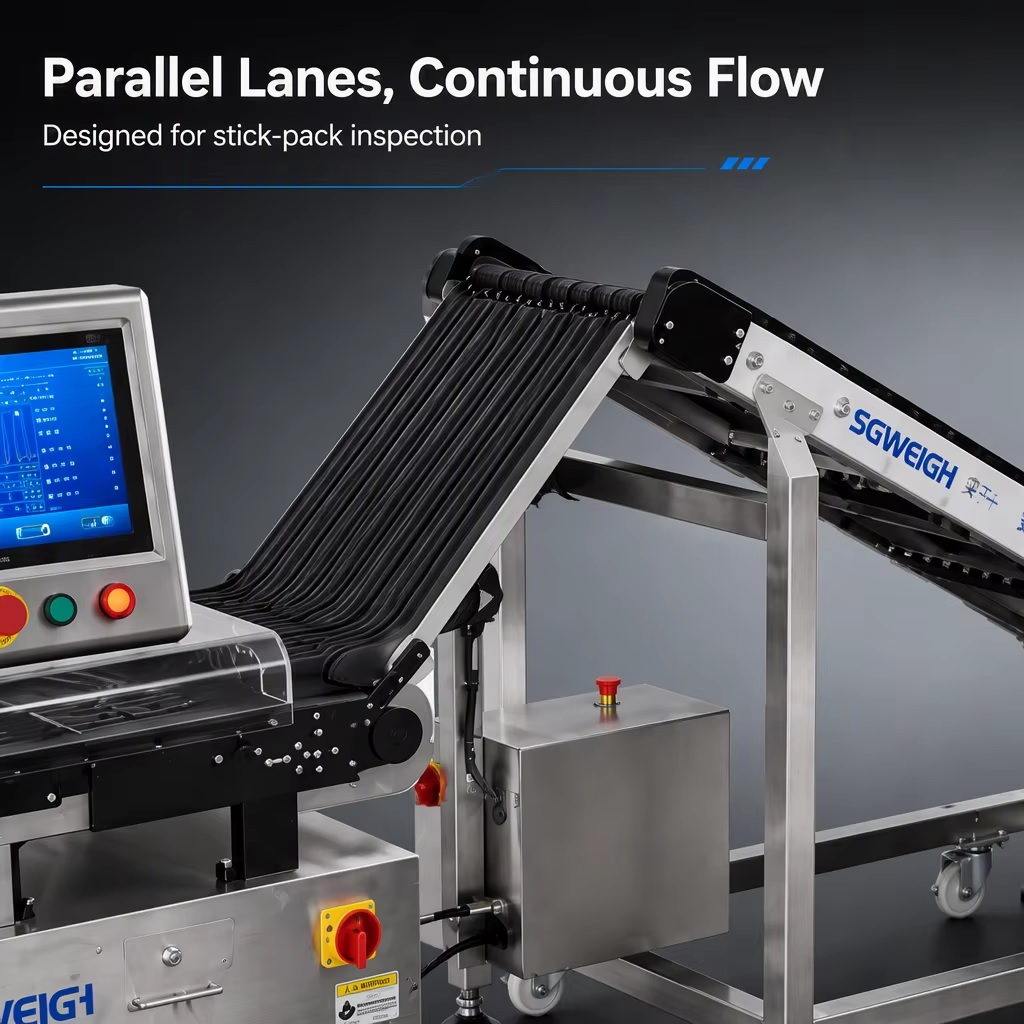

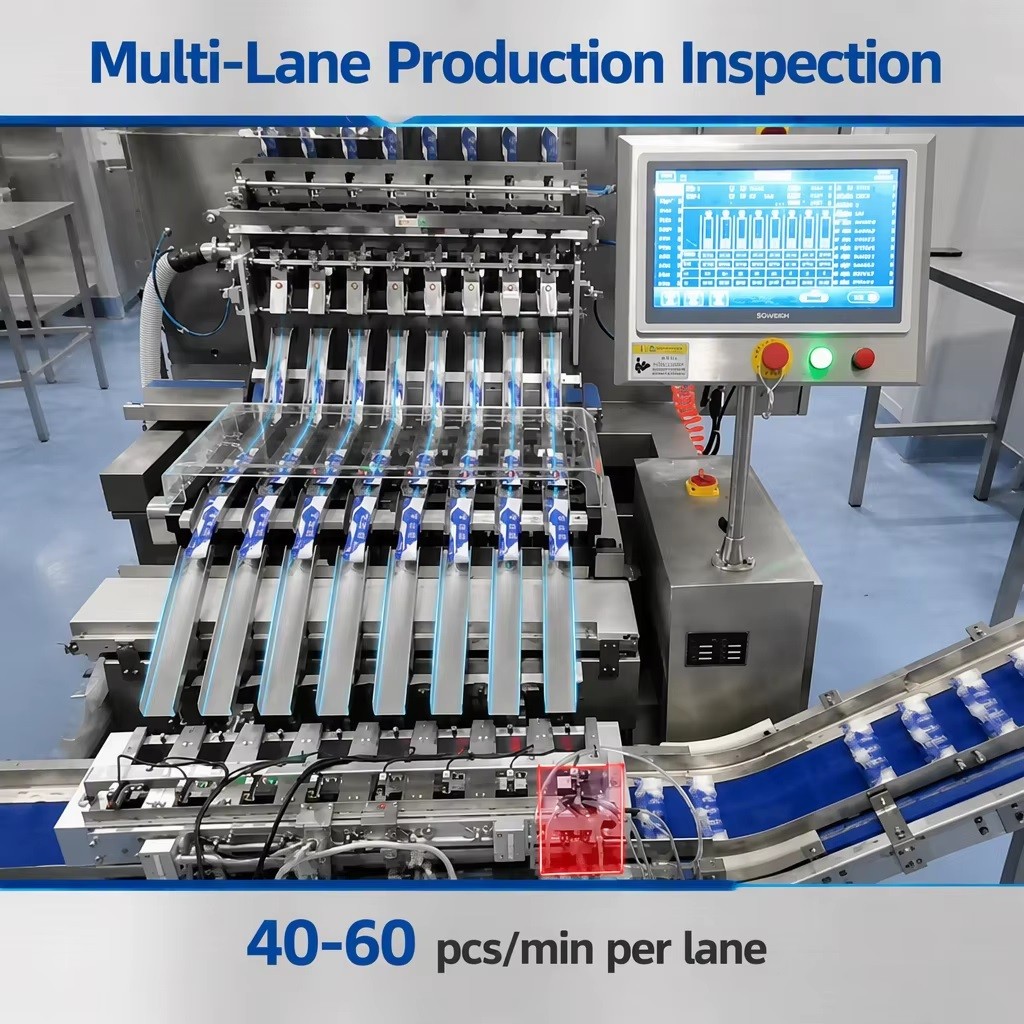

1. 10-lane parallel simultaneous weighing enables inline real-time weight checking for 10 stick packs at once, boosting overall line throughput without production halt.
2. Independent per-lane monitoring and separate parameter configuration allow customized target weight, tolerance and reject thresholds for each channel.
3. Automatic product rejection function sorts underweight and overweight stick packs following pre-set weight limits.
4. High-speed multi-signal processing delivers stable dynamic weighing inspection for continuous production.
5. Built-in weight statistics tracks total output together with qualified, underweight and overweight product counts.
6. Touchscreen HMI with product recipe storage supports quick parameter setup, status monitoring and fast product changeovers.
7. Integrated alarm & fault notification alerts operators to weighing anomalies and equipment malfunctions timely.

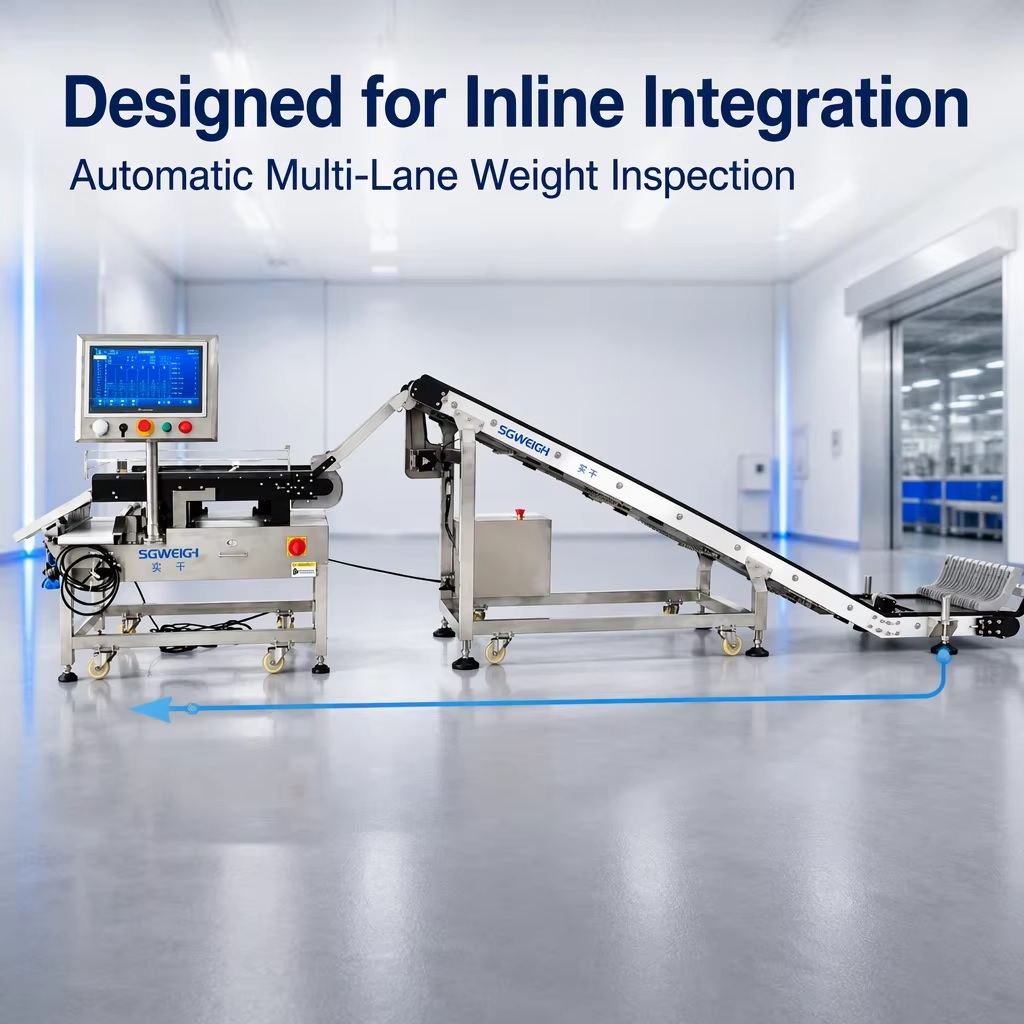

8. Stainless steel hygienic structure for easy cleaning and maintenance, ready to connect with stick-pack filling, sealing and downstream packaging machines for continuous quality control and improved finished product weight consistency.
● Our machines undergo comprehensive testing and commissioning before shipment to ensure stable and reliable performance.

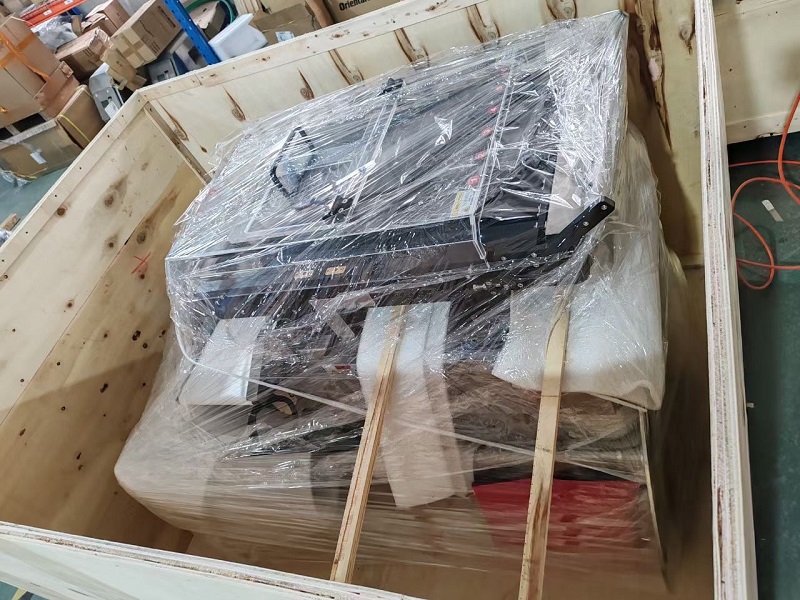

● Equipment is packaged in thickened wooden crates with shock and moisture-proof interiors to effectively prevent damage during transportation.
