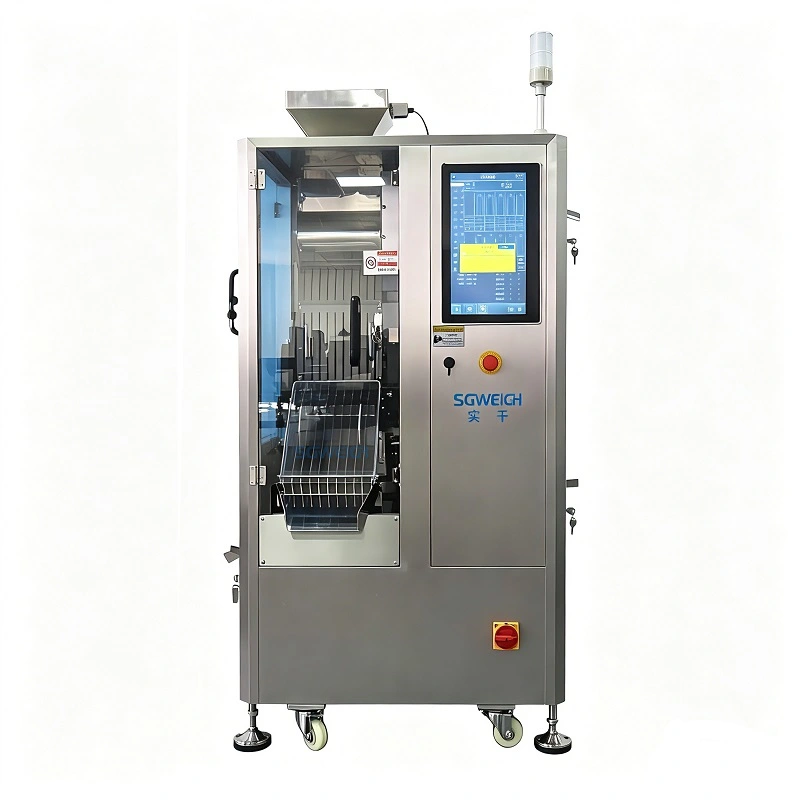

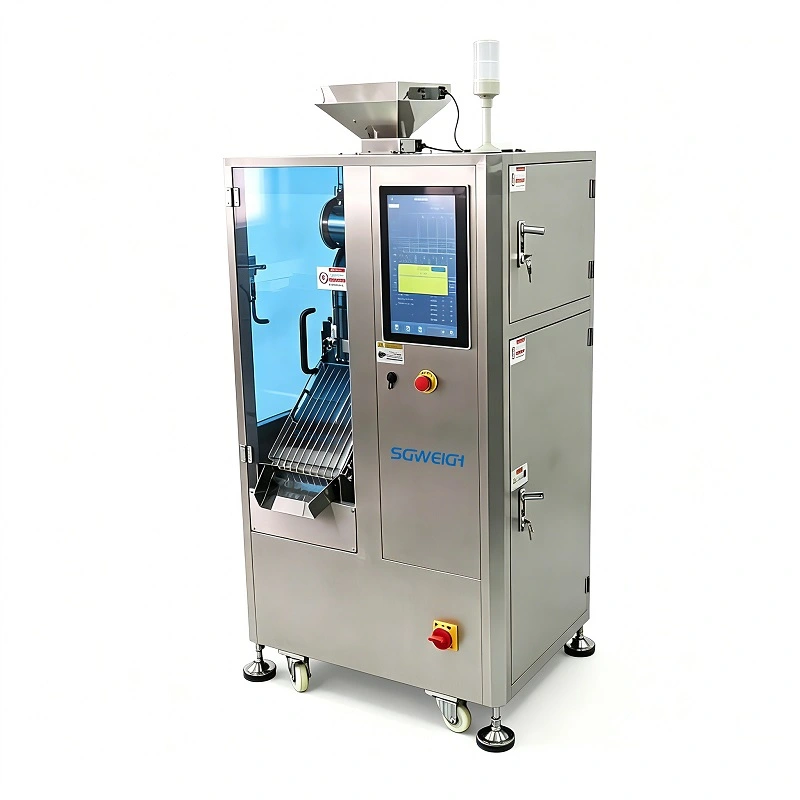

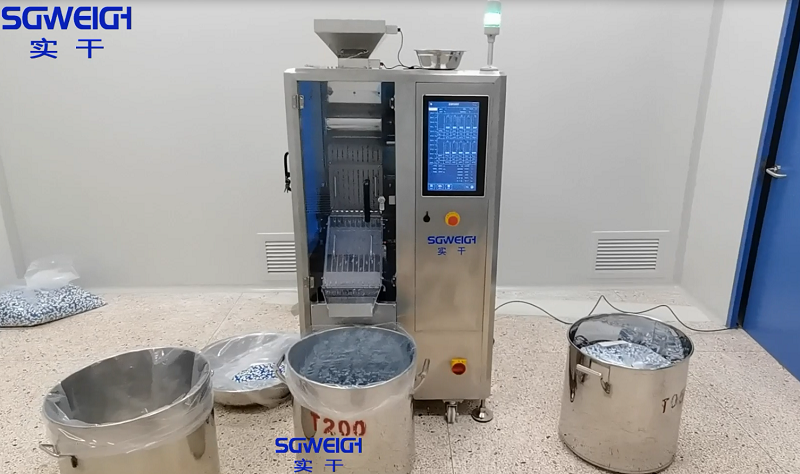

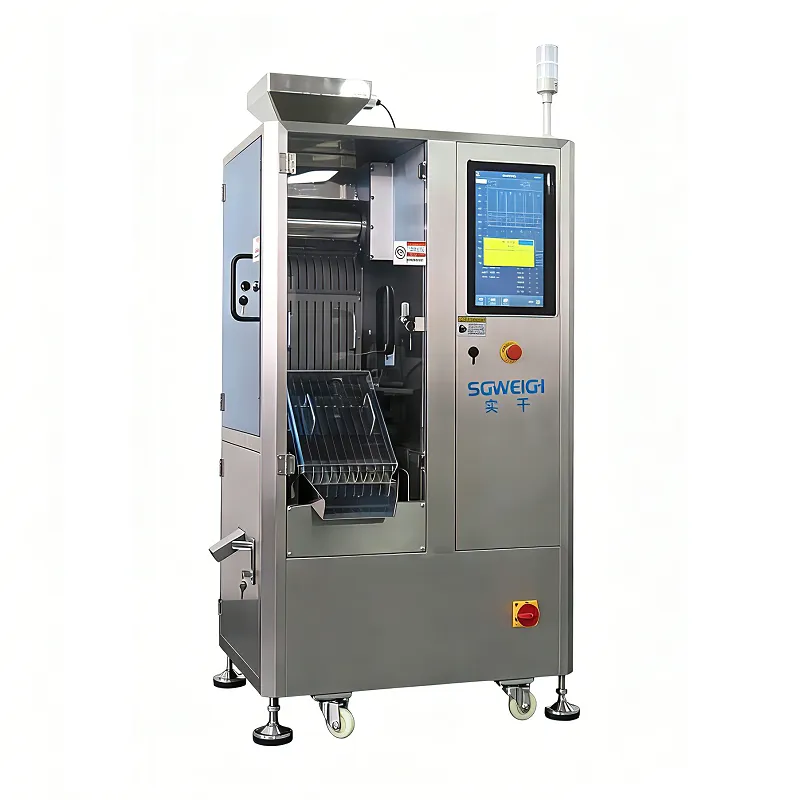

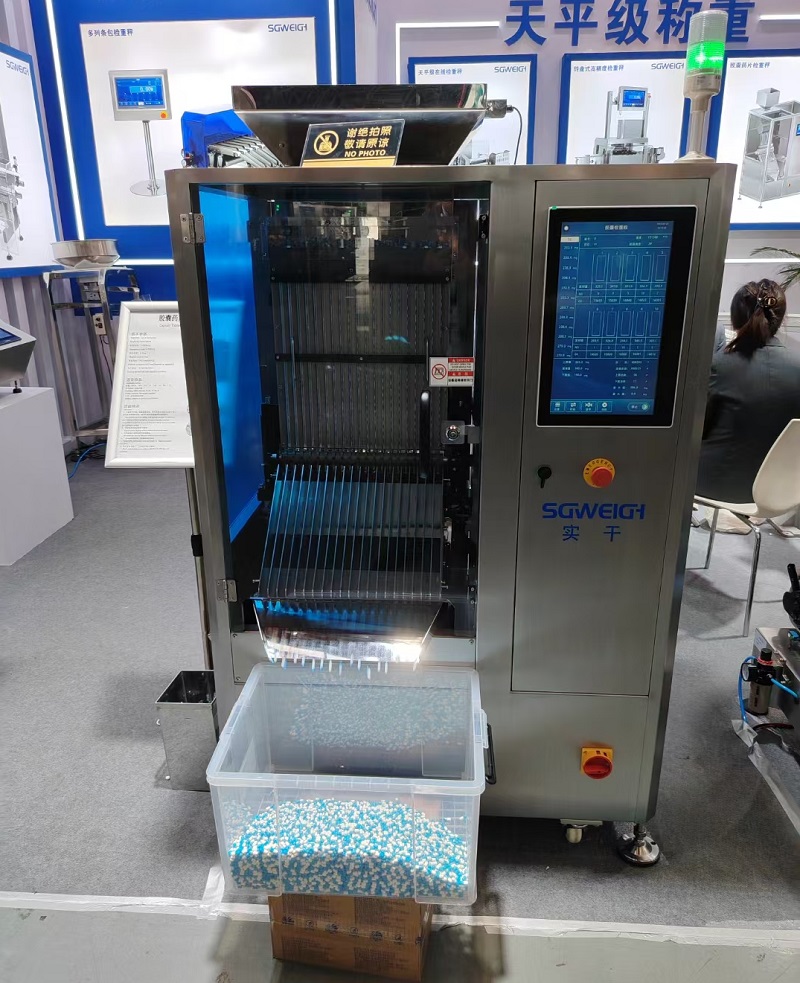

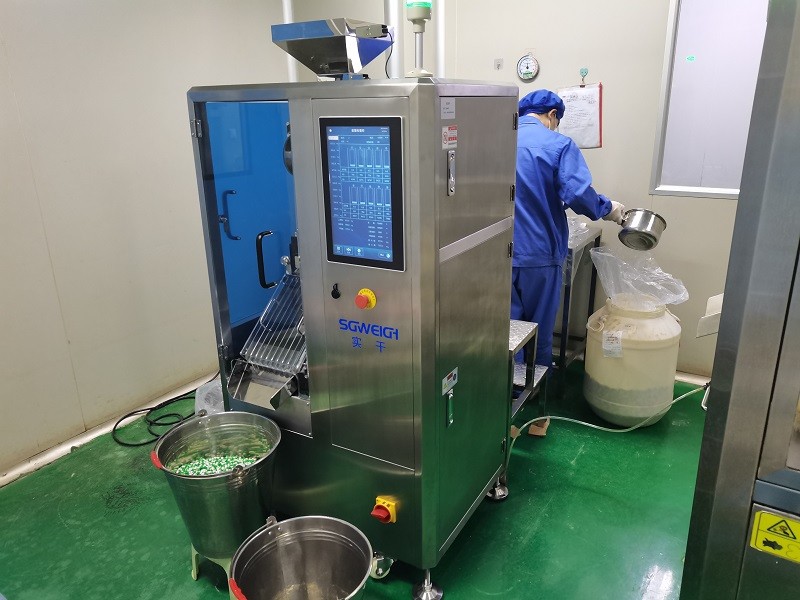

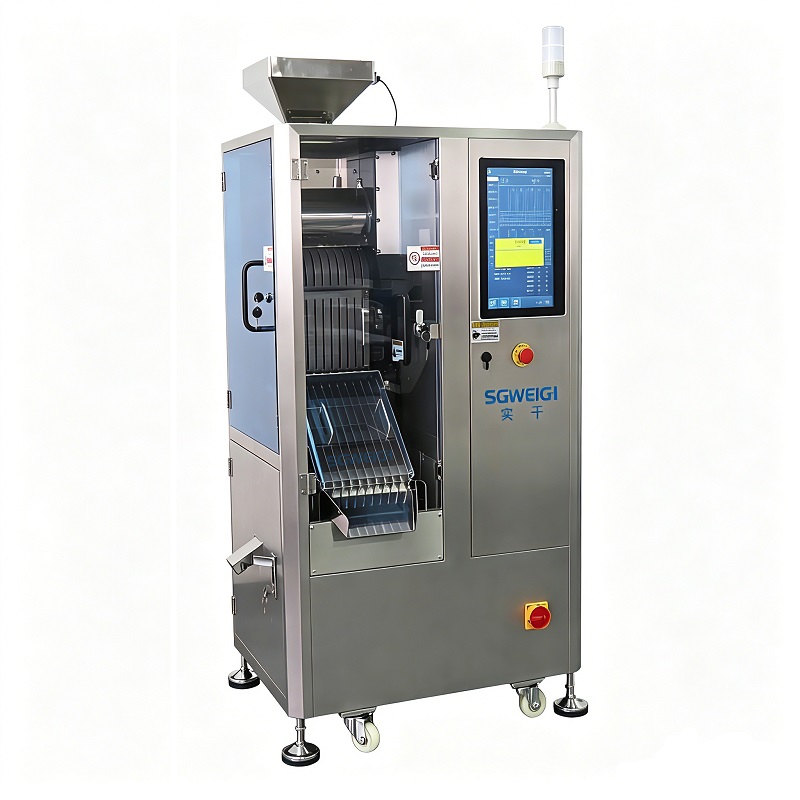

The Online 100% Capsule Inspection Checkweigher is a high-precision dynamic weight detection device specifically designed for the pharmaceutical industry. It can perform 100% online weighing and inspection of every single capsule, enabling automatic rejection of out-of-tolerance capsules and quality traceability. This Capsule Weight Detection System is widely used in production lines for hard capsules, soft capsules, granular capsules, and health supplement capsules, meeting the stringent quality control requirements of GMP, FDA, and the pharmaceutical industry.
| Type | SG-JN10 |
| Weighing scope | 5-2000mg |
| Display scale | 0.1mg |
| Highest sorting accuracy | ±0.5mg |
| Product specification | Capsule-00#-5#(Other sizes or shapes subject to testing) |
| Highest sorting ability | 100000 PCS/HR |
| Number of columns | 10 Columns |
| Power supply | AC-220V±10%, 50HZ |
| Compressed air | 0.3-0.9Mpa |
| Shell material | SUS304/316 |
1. 100% online dynamic weight detection.
2. Automatic rejection of defective capsules.
3. High-precision, high-speed weighing system.
4. Supports both hard and soft capsule detection.
5. Real-time data statistics and traceability.

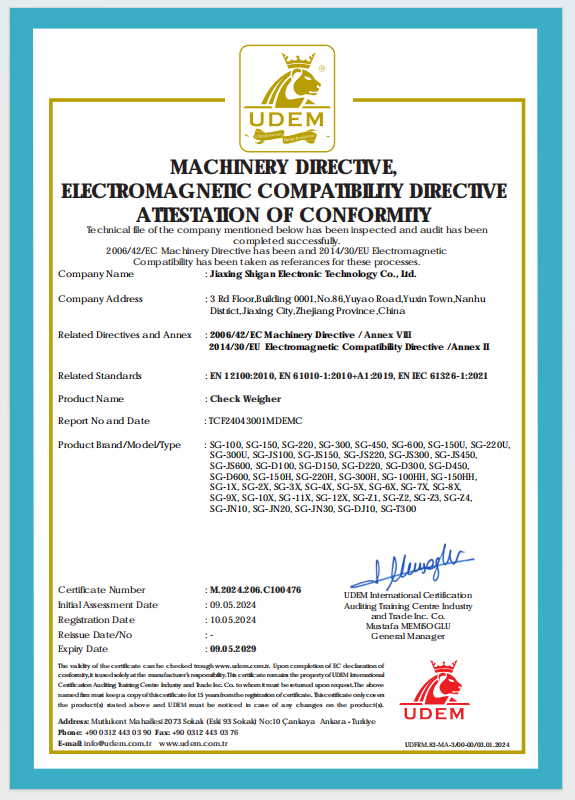

6. Compliant with GMP/FDA production standards.
7. Can be integrated with automated packaging production lines.
8. Reduces manual sampling errors and improves product consistency.
Packaging
● All products are packed in standard export-grade packaging to ensure maximum protection during transportation.
● Each unit is wrapped with plastic film and foam, fixed firmly with inner support, and placed in a strong carton or plywood case.
● All corners and fragile parts are specially protected to prevent collision, scratch and damage.
Shipping
● We support sea freight, air freight and international express (DHL, FedEx, UPS, TNT) according to customer requirements.
● Goods will be carefully loaded and inspected before delivery.
● A complete tracking number will be provided once shipped, so you can monitor the whole logistics process.
● We cooperate with reliable forwarders to ensure safe, on-time and cost-effective delivery.
