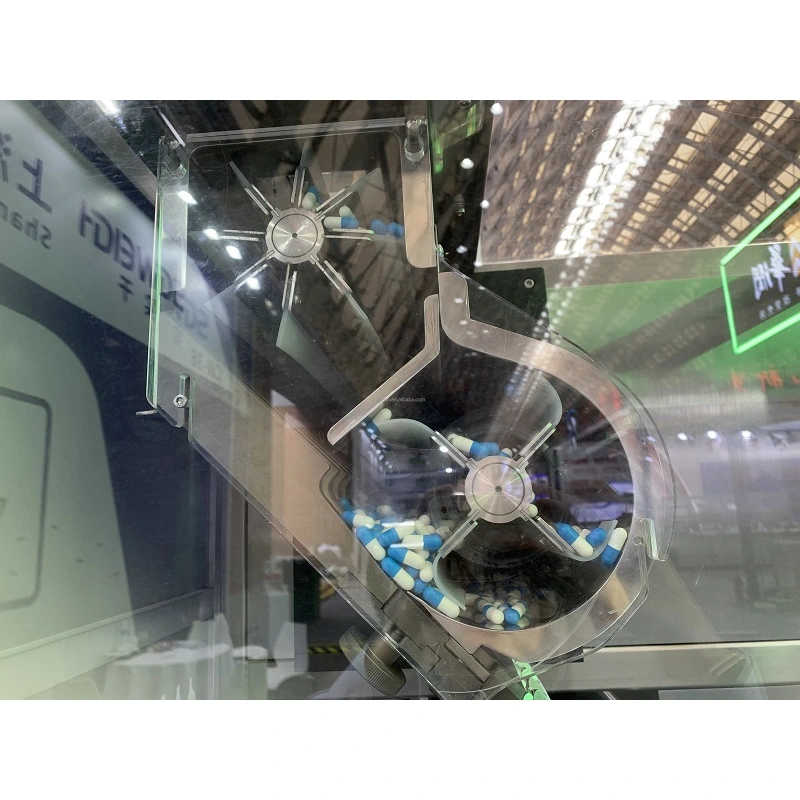

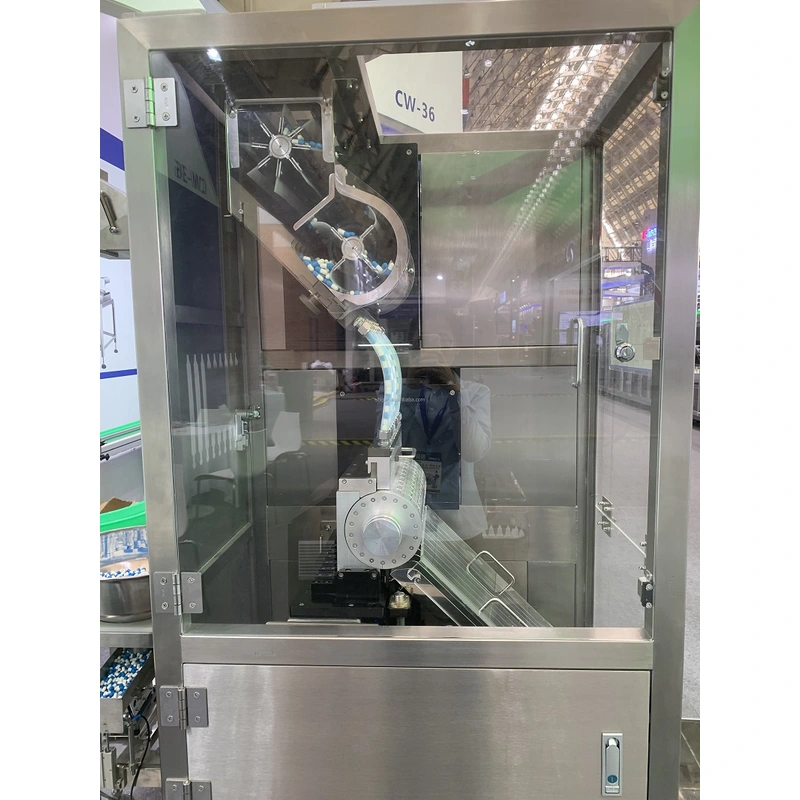

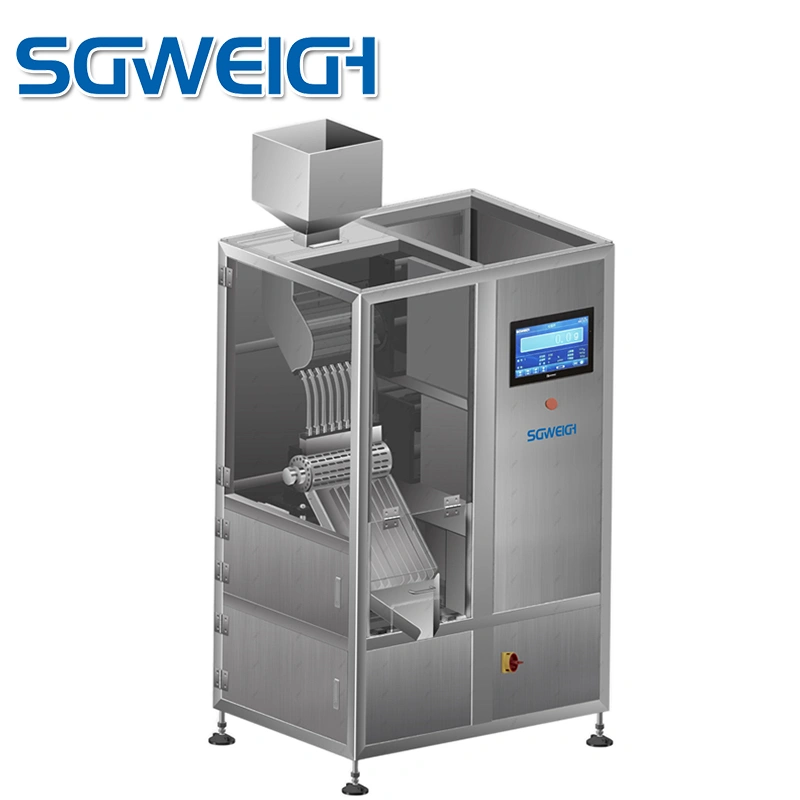

SG-JN10 Pharmaceutical Assembly Line Capsule Checkweigher is a device specially used to detect the weight of capsules.It can detect the weight of all capsules online in real time and automatically eliminate unqualified capsules that are underweight or overweight.Dynamic Capsule Weighing High-Quality Checkweigher is crucial for pharmaceutical companies because it can detect the weight or filling capacity of capsules one by one, allowing for efficient and precise production.
Type：SG-JN10/SG-JN20/SG-JN3O
Weighing scope :5-2000mg
Display scale：0.1mg
Highest sorting accuracy:±0.5mg
Product specification:Capsule-00#-5#/Wafer-Φ5.5-Φ18mm/Thickness-3-12mm/Pill-Φ5.5-Φ12mm(Other sizes or shapes subject to testing)
Highest sorting ability :75000 PCS/HR/150000 PCS/HR/230000 PCS/HR
Number of columns:10 Columns/20 Columns/30 Columns
Power supply:AC-220V±10%, 50HZ
Compressed air:0.3-0.9Mpa
Use environment:15~30°C (The temperature change during use should not exceed the range of 1°C/h.Hunidity:30-70%(but no condensation)
Weight of Machine :350kg/500kg/700kg
Shell material:SUS304
You can select the best suitable model depending on the production volume.
◎Large screen display clear viewing and convenient operation.
◎Chinese-English interface( Multple languages can be customized).
◎Suitable for regular capsules and tablets
◎It can actually display the relevant data of eachchannel
◎Three-level operation authority management support se lf-set passwora.
◎100 kinds data can store with strong data statistics function.
◎All channels can be cleaned without disassembly.
◎Multi-channel passing products to improve production efficiency (the number of channels can be customized).
You can select the best suitable model depending on the production volume.
1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
Packing Detail:
1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
